ADV100 • Functions description and parameters list 97
Power supply
The mains supply is restored while the function is enabled
Speed ref
Speed
Speed
Speed ref
Drv enable
Vdc
Powerloss
Next active
Powerloss
Ramp down
Powerloss
Next ratio

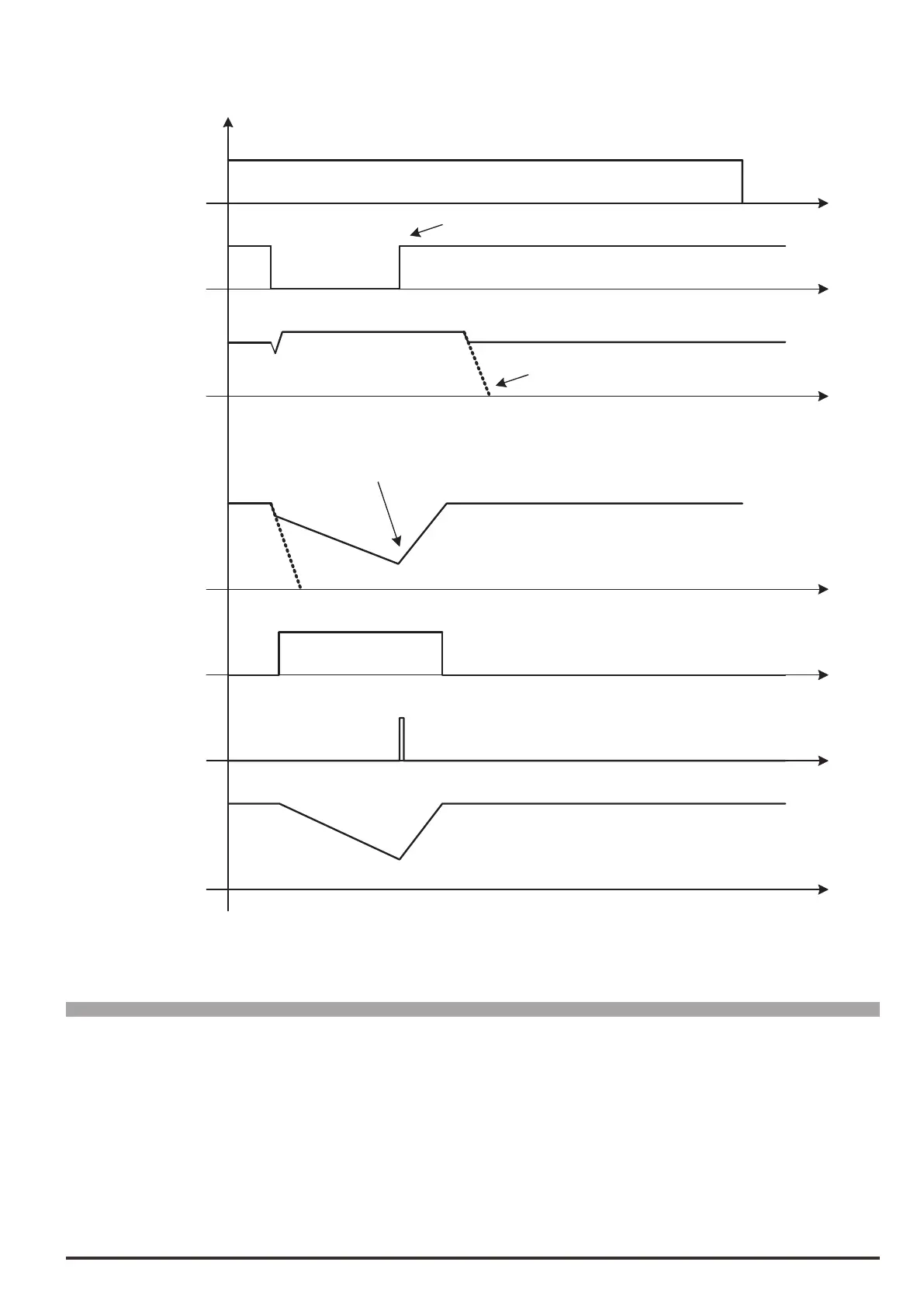

PowerLoss_05.vsd
Restart and mains supply restored
The drive switches itself off
if the power supply is not restored
Detection possible when the external sensor detects
that the mains supply has been restored
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.6.7 3440 Powerlossmainssrc LINK 16 6000 0 16384 ERWZ F__
This parameter is used to select the origin (source) of the MainsvoltageOK signal. The signal to be associated with
this function can be selected from the “L_DIGSEL2” selection list.
If the signal is not enabled it means the power supply is not present (MainsvoltagenotOK), whereas if the signal
is enabled it means the power supply is present (MainsvoltageOK).
In the default condition the origin of the Powerlossmainssrc signal is Zero.
The user must connect an external sensor to inform the drive of the mains supply status.
If the function is congured as Powerlossmode=Restart, when the MainsvoltageOK signal is enabled the drive
stops the deceleration ramp and passes to the set reference.
For machines with several drives the external sensor signal must only be connected to the master drive.
