58 ADV100 • Functions description and parameters list

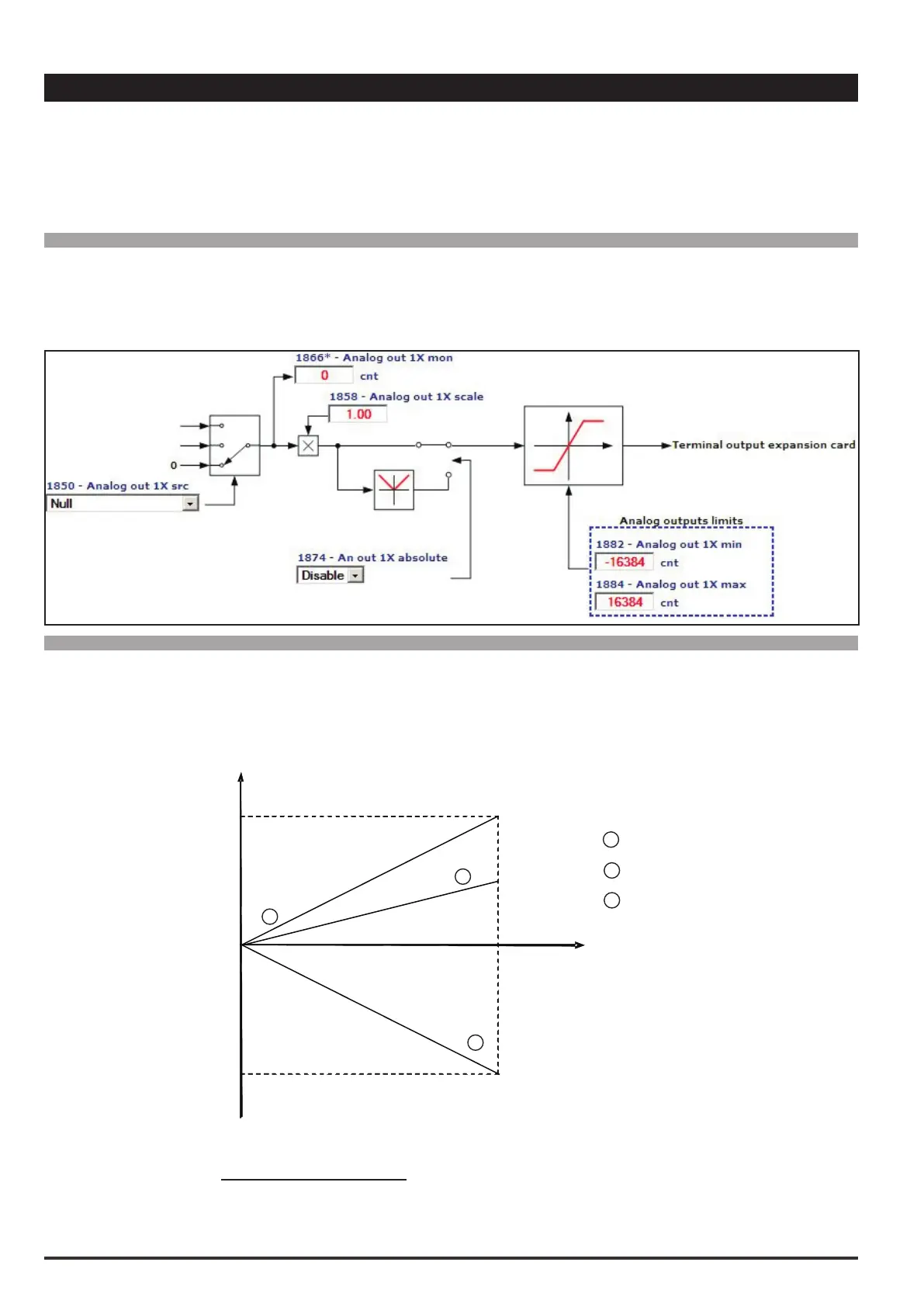

15–ANALOGOUTPUTS
There can be two programmable analog outputs, depending on the conguration.
Analog output 1 supplies a two-pole +/-10VDC voltage signal, while analog output 2 can be programmed to obtain a
0-20mA or 4-20mA output signal in current or a signal in two-pole +/-10VDC voltage, depending on the parameter as-
signed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.1 1850 Analogout1Xsrc LINK 16/32 6000 0 16384 RW FVS
15.2 1852 Analogout2Xsrc LINK 16/32 6000 0 16384 RW FVS
Selection of the origin (source) of the signals that can be placed as variables on the analog outputs of the expansion
card. The functions that can be assigned to the analog outputs are listed in the “L_ANOUT” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.3 1858 Analogout1Xscale FLOAT 1.0 -10.0 10.0 RW FVS
15.4 1860 Analogout2Xscale FLOAT 1.0 -10.0 10.0 RW FVS
Parameter for setting a multiplier factor of the signal of the relative analog output of the expansion card. It can be
used to amplify or reduce the input value of the relative analog output block.
1
2
3
+10V
-10V
0V
Internal V
1
2
3
Par.
1858 (1860) = 1
Par. 1858 (1860) = 0,5
Par.
1858 (1860) = -1
Stp Var x par. 1858 (1860)
Vout = 10 x ( )
FS Var
where:
