78 ADV100 • Functions description and parameters list
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.5 2408 Vffrequency Hz FLOAT CALCF 10.0 2000.0
ERWZS
V
Setting of the motor rated frequency (indicated on the motor data plate)
This is the frequency at which the drive output voltage reaches the maximum output voltage (Vfvoltage) on the mo-
tor.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.6 2410 Vfvoltage1 V FLOAT CALCF CALCF CALCF
ERWZS
V
Setting of an intermediate voltage value for the custom V/f characteristic curve.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.7 2412 Vffrequency1 Hz FLOAT CALCF 0.0 CALCF
ERWZS
V
Setting of an intermediate frequency value for the custom V/f characteristic curve.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.8 2414 Vfvoltage0 V FLOAT 0.0 0.0 CALCF ERWZS V
Compensation of IR voltage drop at 0 Hz. This parameter must be increased in case of pure V/f control. The increase
depends on the size of the motor. Values that are too high could cause an overcurrent and motor saturation.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.9 2430 Vfshape ENUM Linear 0 2 ERWS V
Selection of the type of V/f characteristic curve
0 Linear
1 Custom
2 Quadratic

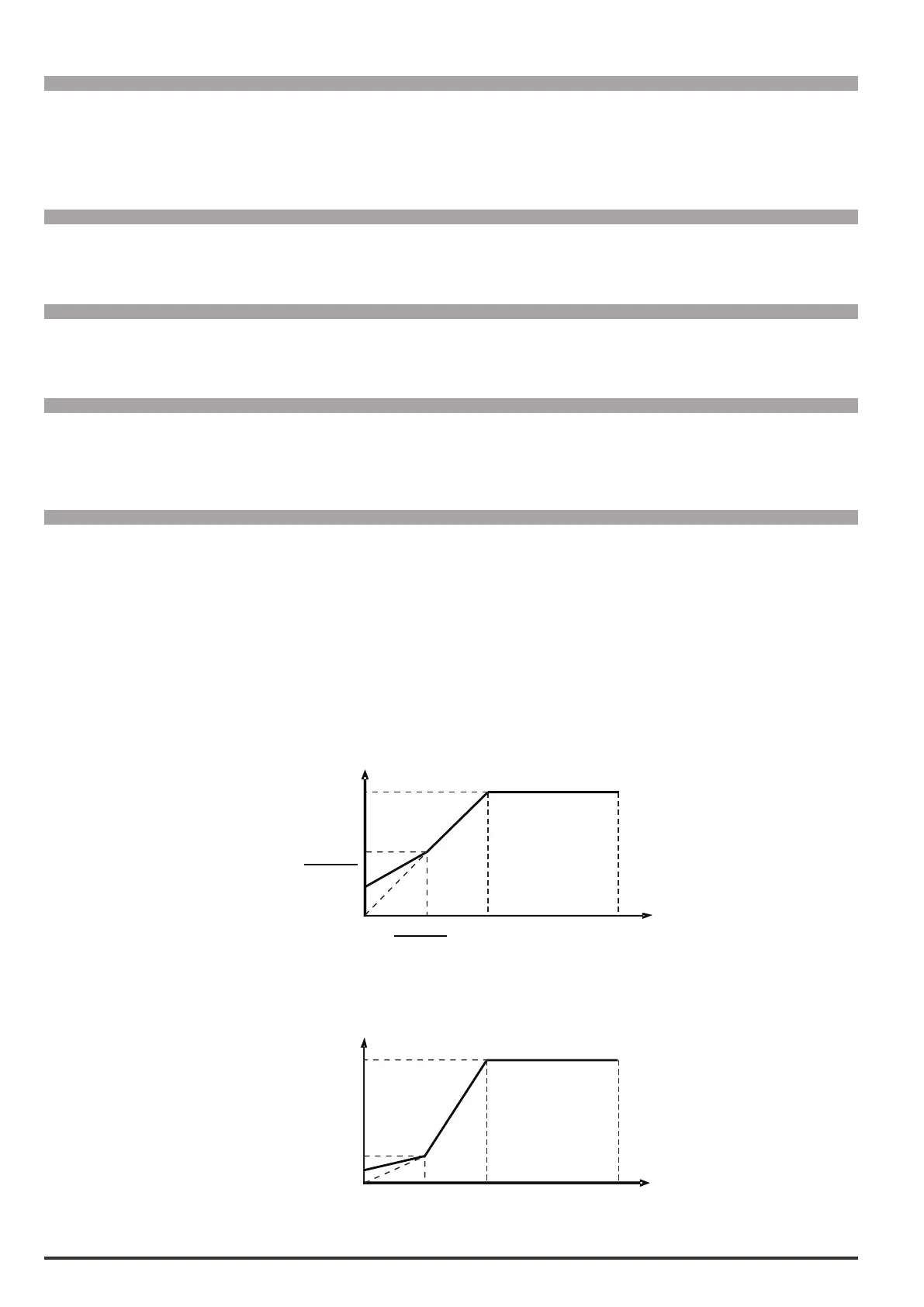

Set 0 (Linear) to obtain a linear V/f characteristic curve, on which the intermediate points are reset to a value that is
equal to half those of parameters 2406 and 2408.
The Boost joins the curve automatically.
Par.2412
2
2
Par.2406
Par.2408
Par.2410
Par.2400
V
Hz
Set 1 (Custom) to obtain a customized V/f characteristic curve, in which the intermediate voltage and frequency
values are dened by parameters 2410 and 2412, as is the point at which the Boost joins the characteristic curve.
Par.2406
Par.2408
Par.2410
Par.2400
Par.2412 Hz
V
