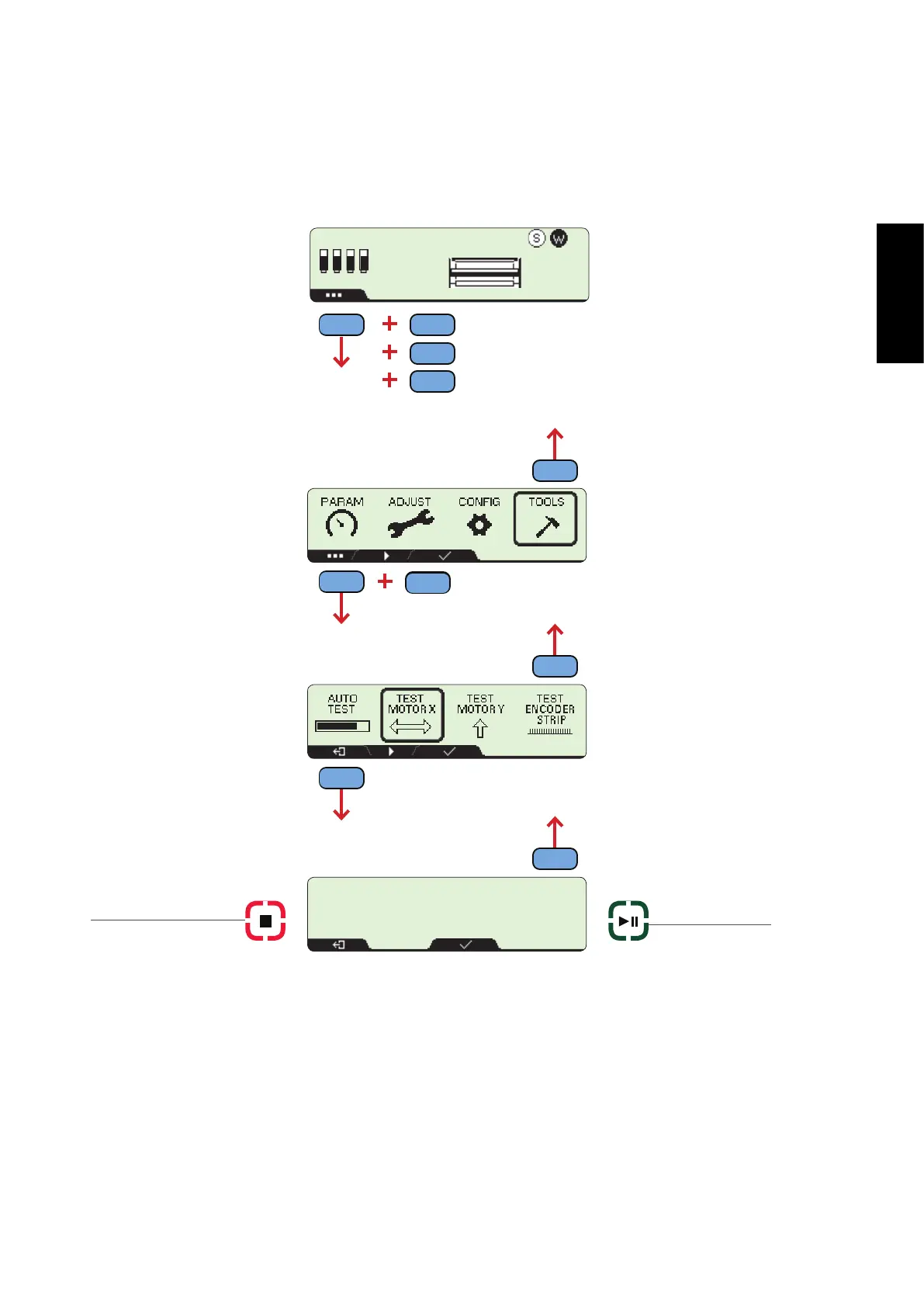

5.4.7 Test motor X (print head movement)
KKK K
19:49
OK

OK
HEADS MOTOR
AV: 0.0 A
PK: 3.7 A
CS: 0.5 A
Start the motor X test
PRINT
PAUSE
Finalize the X motor
test
STOP
Motor X moves the print head.
The test motor X option shows:
-The average current consumption by motor X.
-The peak current consumption by motor X.
-The average current consumption at a constant speed by motor X.
