GERBERplotter MP Series User Manual
English

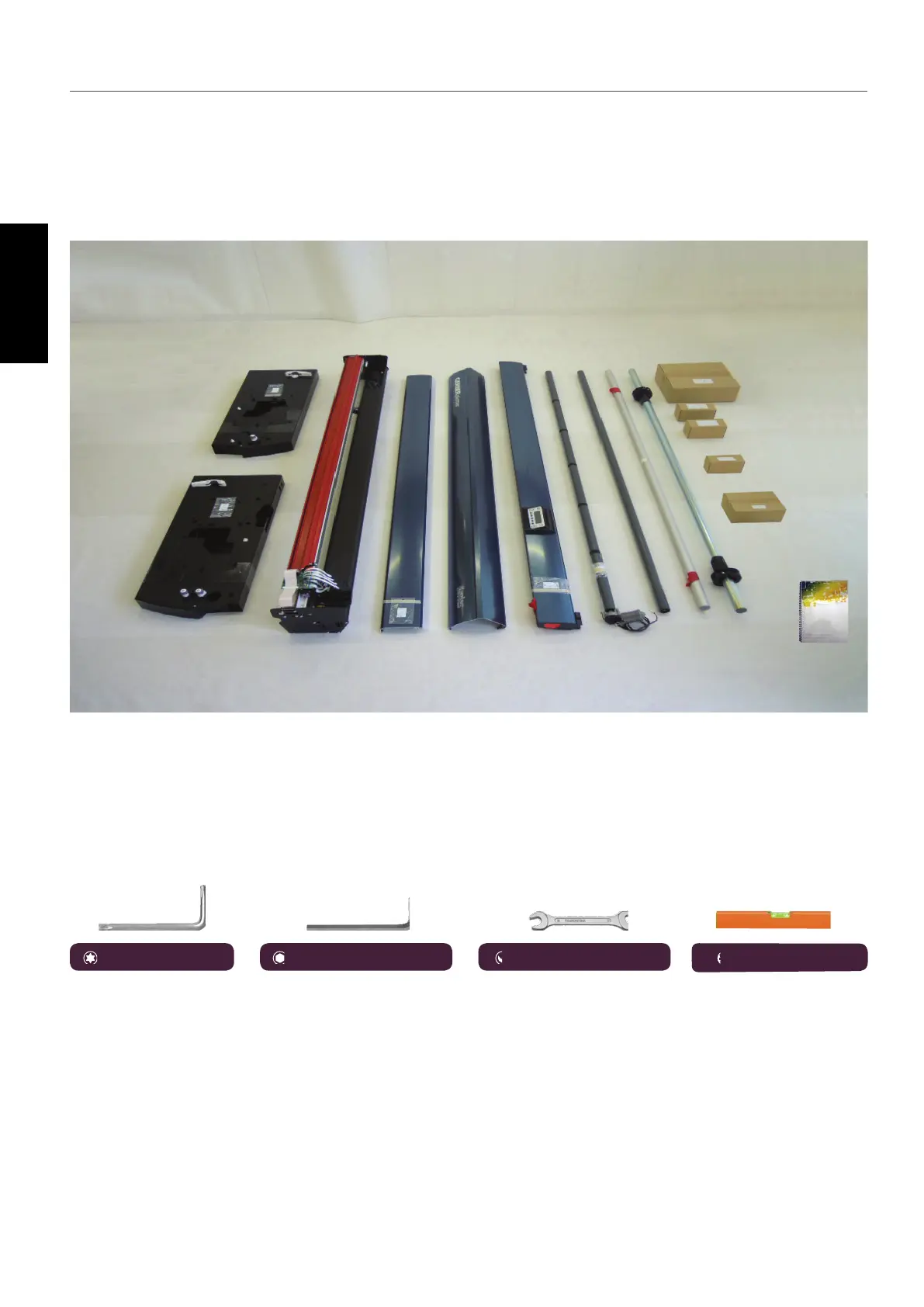

2.2 Hardware assembly
2.2.1 Contents and required tools
The plotter packaging contains the parts you need to assemble the plotter. The following tools are not in the box:
Allen wrench, Torx® keys, and wrenches. Individual components for the assembly and the reference codes used for
them are detailed below.
CN231
CN211 CN212 CN201
CN227
CN205
CN229
CN206
CN309 (Box2)
CN308 (Box1)
CN319 (Box3)
CN207
CN221
CN225
CN009
The plotter packaging contains three boxes that contain small components (wheels, screws, electronics, etc.).
Do not open these smaller boxes until you reach the steps for which they are needed. The number of boxes may
vary, depending on any options you ordered.
To assemble the plotter, you need the following tools: No. 4 and 6 Allen or hex keys, 10, 13, and 17 mm wrenches, a
Torx T20 and T30, and a bubble level.
keys
No.3, 4, 5, and 6 Allen
wrench
10mm/13mm/17mm
LevelTorx T30
CN139 (Box6)
Documentation
CN316 (Box7)
