GERBERplotter MP Series User Manual
English
KKK K
19:49
The nal display screen shows the number of print heads detected, the current time, if the plotter is connected to a
computer through the USB port or Ethernet, if it is necessary to remove the paper from the paper take-up bar, and
if the front cover is open. It also shows some icons for the Warranty, Service Saver, and Finance options. The color
(black (K), cyan (C), yellow (Y), blue (B), red (R), white (W), green (G), and magenta (M)) of these icons indicates
the state of each option. For Finance, the color varies depending on the nancing state of the machine.

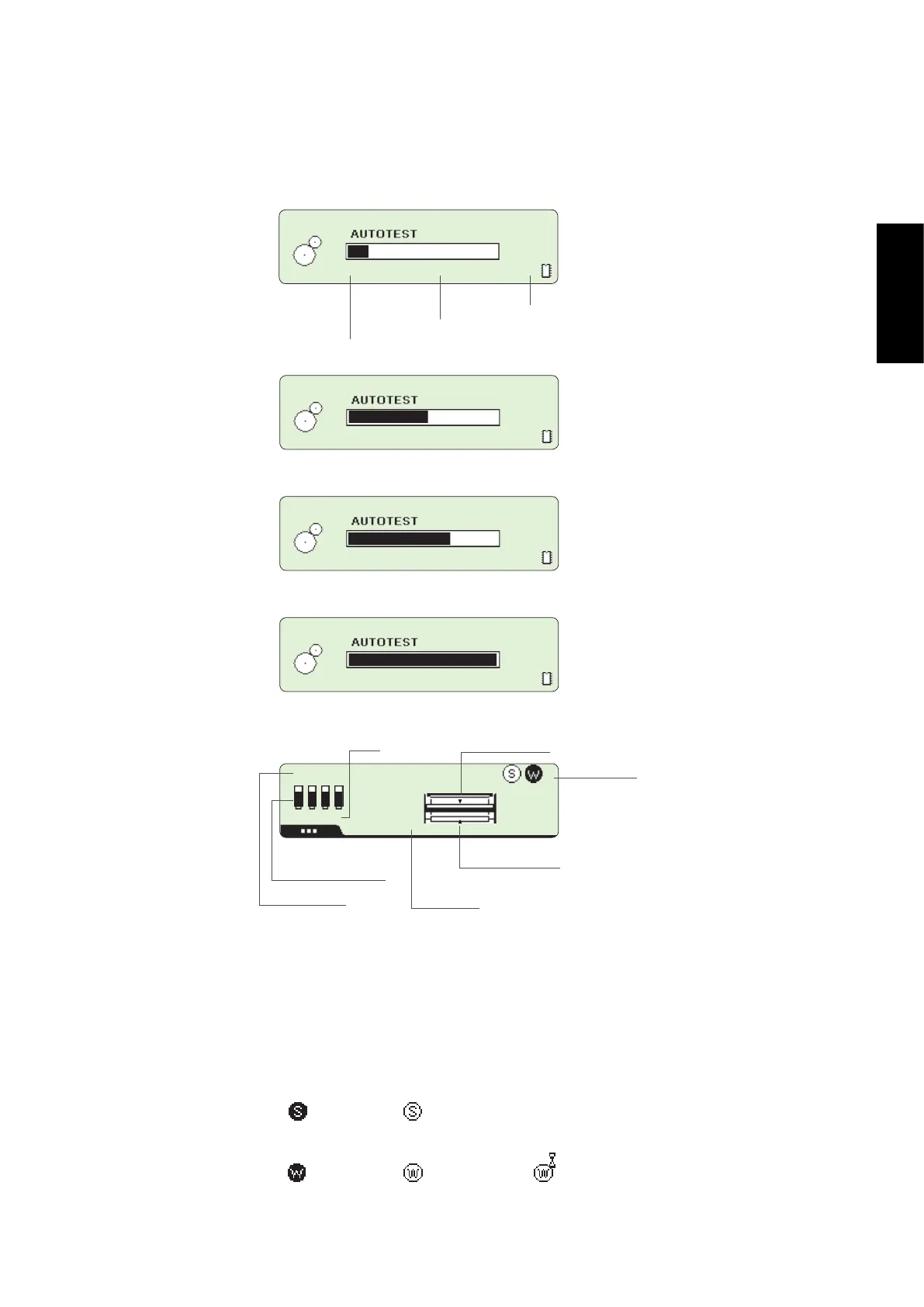

5.4.1 Start and self test
Starting the plotter takes a few seconds, during which time various checks are performed to supply information,
such as the plotter ID, current date, version of Firmware, movement of the printer bridge, paper advance, etc. Below,
are diagrams showing various examples of the screen display when starting a plotter with four print heads:
Warranty OK Warranty grace periodWarranty not OK
Service Saver not enabledService Saver
LB5Y9 MP2204 5.5
LB5Y9 MP2204 5.5
LB5Y9 MP2204 5.5
LB5Y9 MP2204 5.5
Firmware version.
Unique plotter
Plotter model.
Main display.
Remove paper.
Front cover open.
Number of print heads
(x: not found).
Extra options.
Time (hh-mm).
Color.
