The following steps explain the how to load a new paper
roll and position it on the plotter.
The paper must be positioned as shown with the side to
be printed facing the ground:
This is the orientation of the paper
used in normal working conditions
and in examples and descriptions.
If needed, you can load the paper in
the opposite direction.

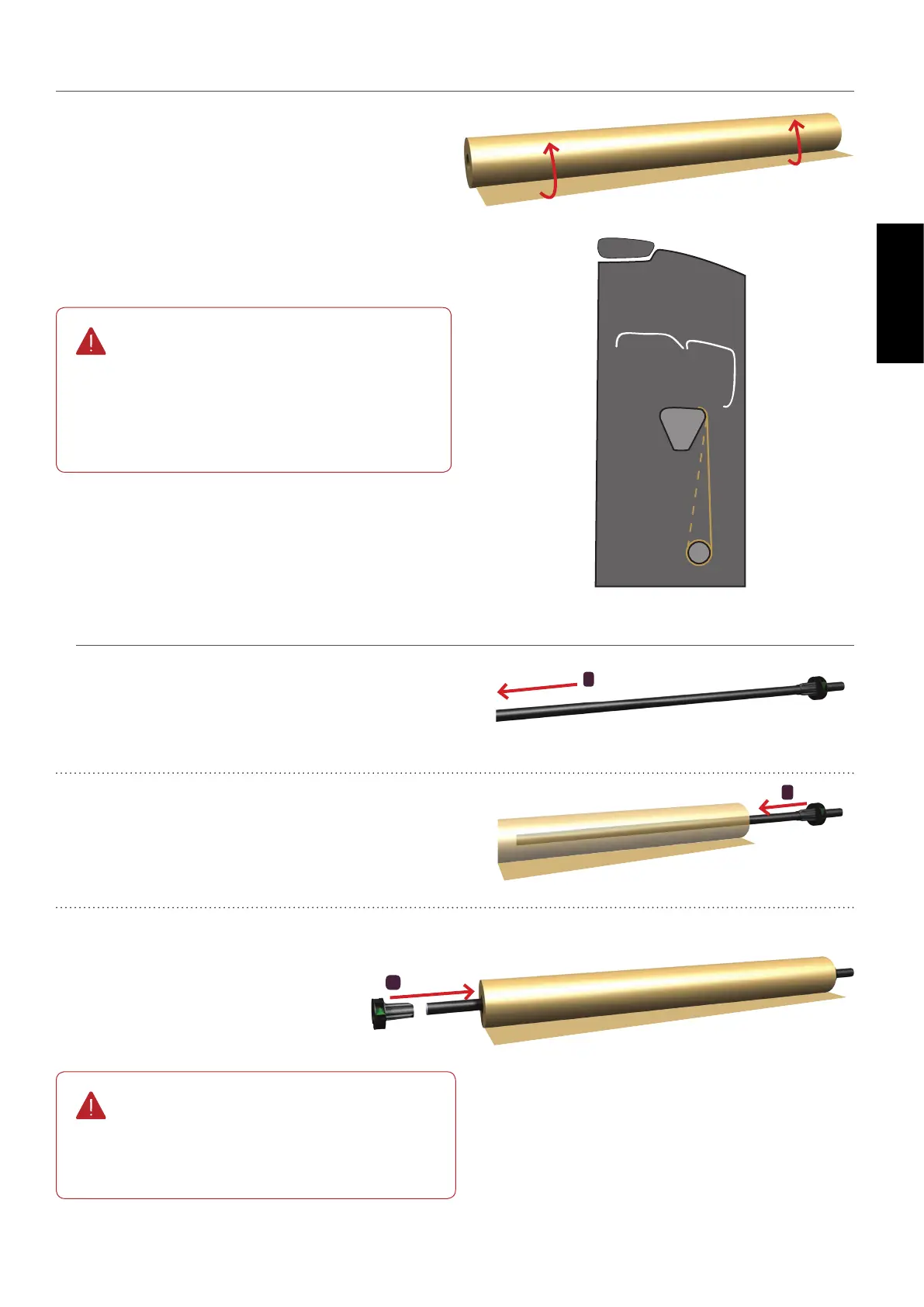

Paper roll orientation for loading onto paper roll support bar.
Fit paper roll
Step 1 of 4
1
1
Allen key nº 6: Loosen the left cone on the paper roll
support bar, and slide it off completely.
1
2
Insert the support bar into the paper roll from the right
side until it ts snugly into the right cone.
3
Slide the left cone onto the support bar until it ts rm-
ly inside the paper roll
3
When the paper origin is set to the left-
side, remove the right cone instead of the
left and slide in the support bar from the
left side of the paper roll.
2
5.1 Loading a roll of paper
