Gerber Technology GERBERplotter MP Series User Manual

80
GERBERplotter MP Series User Manual
English
Below is a summary of the button operation on the display:
·
Paper Press the PAPER button once to advance the paper 15 cm (5.90 in). This lets you fasten the paper to
the paper take-up bar using the side and center clips.
Press the PAPER button for 2-3 seconds to advance the paper sufciently to let you cut and remove
the last print job.
·
PRINT/
PAUSE
Pauses or resumes the current print job.
The plotter resumes printing after a STOP.
If the plotter has been stopped, it resumes printing.
Starts and pauses print jobs and calibration tests.
·
STOP Stops printing.
Puts the plotter in STOP mode, so the plotter cannot receive new jobs.
·
MENU Accesses to the start menu or returns to the previous menu.
·
--> Scrolls through options.
·
OK Accesses to the selected option.
Conrms changes and exits the current option.
Conrms changes and accesses the next step in a calibration process.
·
+ Increases the selected value. From the main menu, moves the print head to the left side of the plotter.
·
- Reduces the selected value.
From the main menu, moves the plotter print head to the origin dened during conguration (4.4.5).

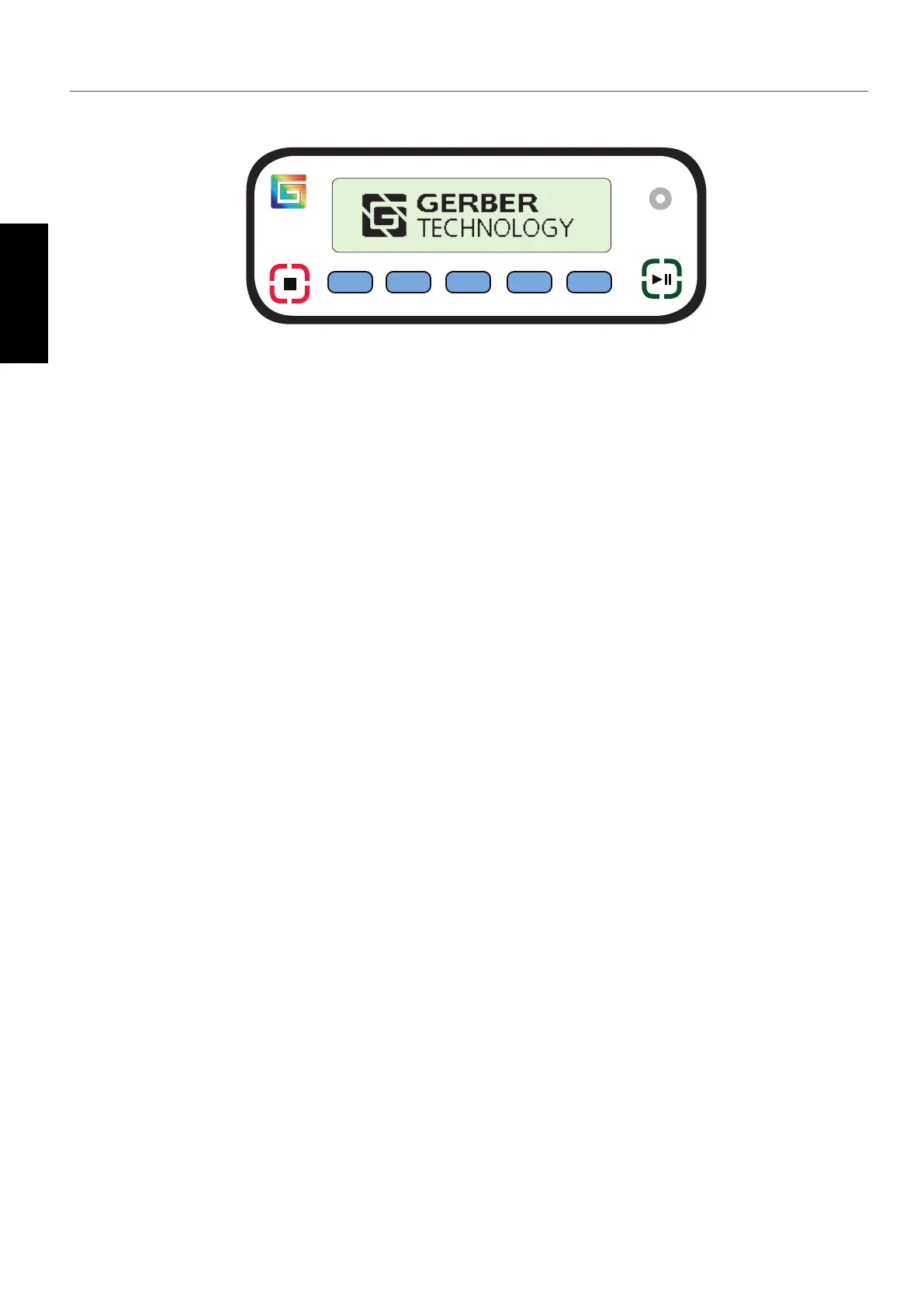

5.4 Display
PAPER
MENU

OK
+ -
PRINT
PAUSE
STOP
