Gerber Technology GERBERplotter MP Series User Manual

82
GERBERplotter MP Series User Manual
English
The printer settings PARAM allow you to obtain the maximum print quality by calibrating various settings and by
printing various test jobs.

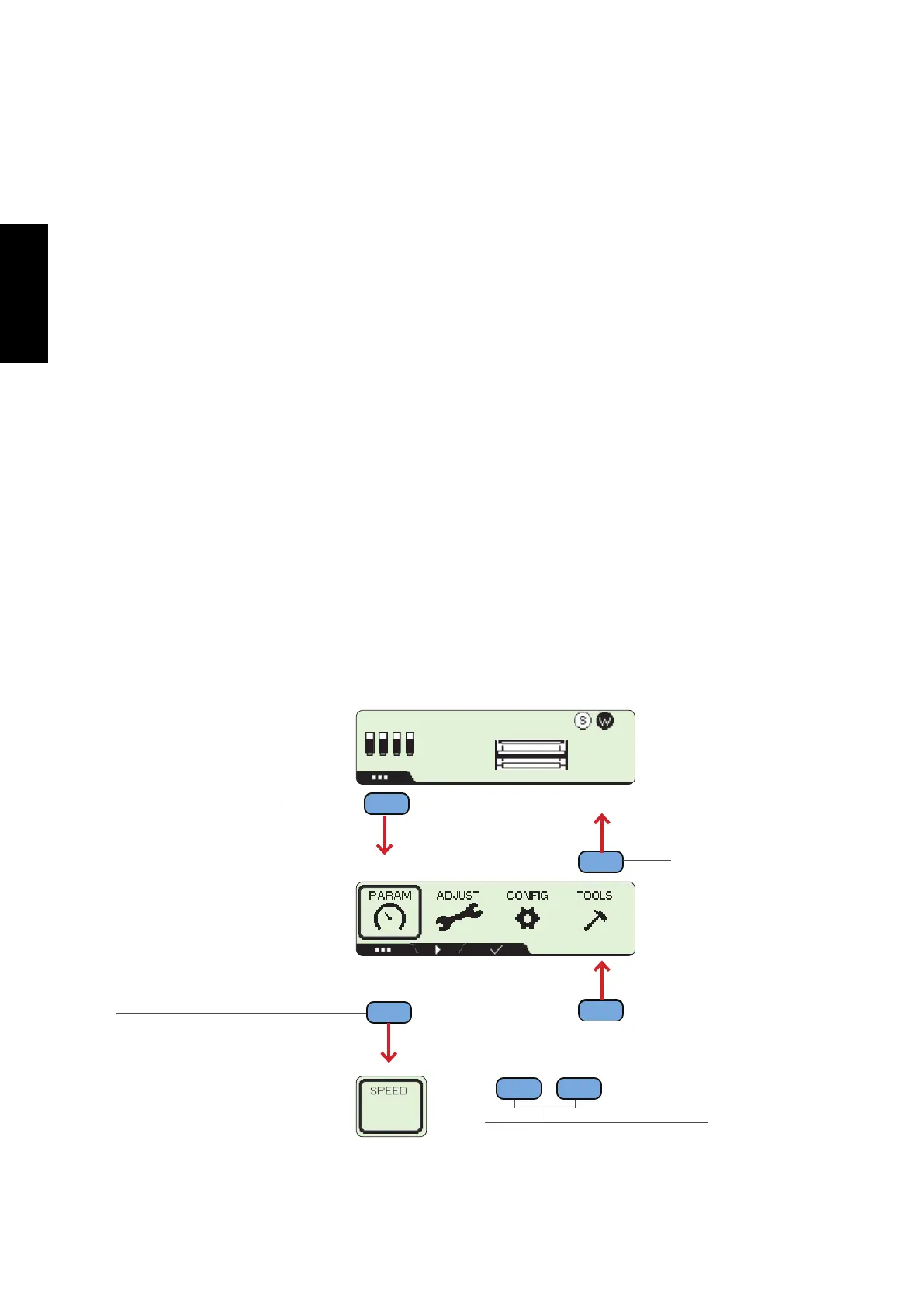

Below you nd a diagram detailing access to the general print settings PARAM:
5.4.2 Print settings
The MENU button in the main screen
allows access to the settings, calibration,
andcongurationoftheplotter.
The OK button allows access to
the submenu of the selected option
(which is highlighted using a thicker
border).
+ -
The +/- button lets you alternate be-
tween the different values, which vary
according to the option selected.
MENU
MENU
OK
MENU
HQ200 3343
The MENU button returns
you to the previous screen
(when applicable).
KKK K
19:49
·
SPEED
Print head speed.
Values of 50, 100, 150 and 200 cm/s. Values of 19.68, 39.37, 59.05 in and 78.74 in/s.
50..200 cm/s. 19.68..78.74 in/s
·
LINE WIDTH
Print line width
Values from 1 (thin) to 4 (thick).
·
ORIGIN RIGHT
Print origin relative to the right side of the plotter.
Values from 10 to 999 mm (337 to 682 mm in a plotter with cleaning and parking zone).
Values from 0.39 to 39.33 in (7.55 to 26.85 in a plotter with cleaning and parking zone).
Cleaning and parking zone is an option that increases print quality.
·
PAPER MODE
Quick paper advance (DRAFT) or adjusted (HQ) option.
ON/OFF
·
ORIGIN LEFT
STATE
Print origin relative to the left side of the plotter.
ON/OFF
·
ORIGIN LEFT
VALUE:
Print origin relative to the left side of the plotter.
Values between 220 and the plotter width (for 1.8 m, for example, the maximum value is
2170, and for 2.2 m the maximum can rise to 2570).
This value is used if the previous option is enabled.
·
GCB DIR
Changes the direction of impression of the paper. Only affects to the giant collector bar.
FRONT/BACK
