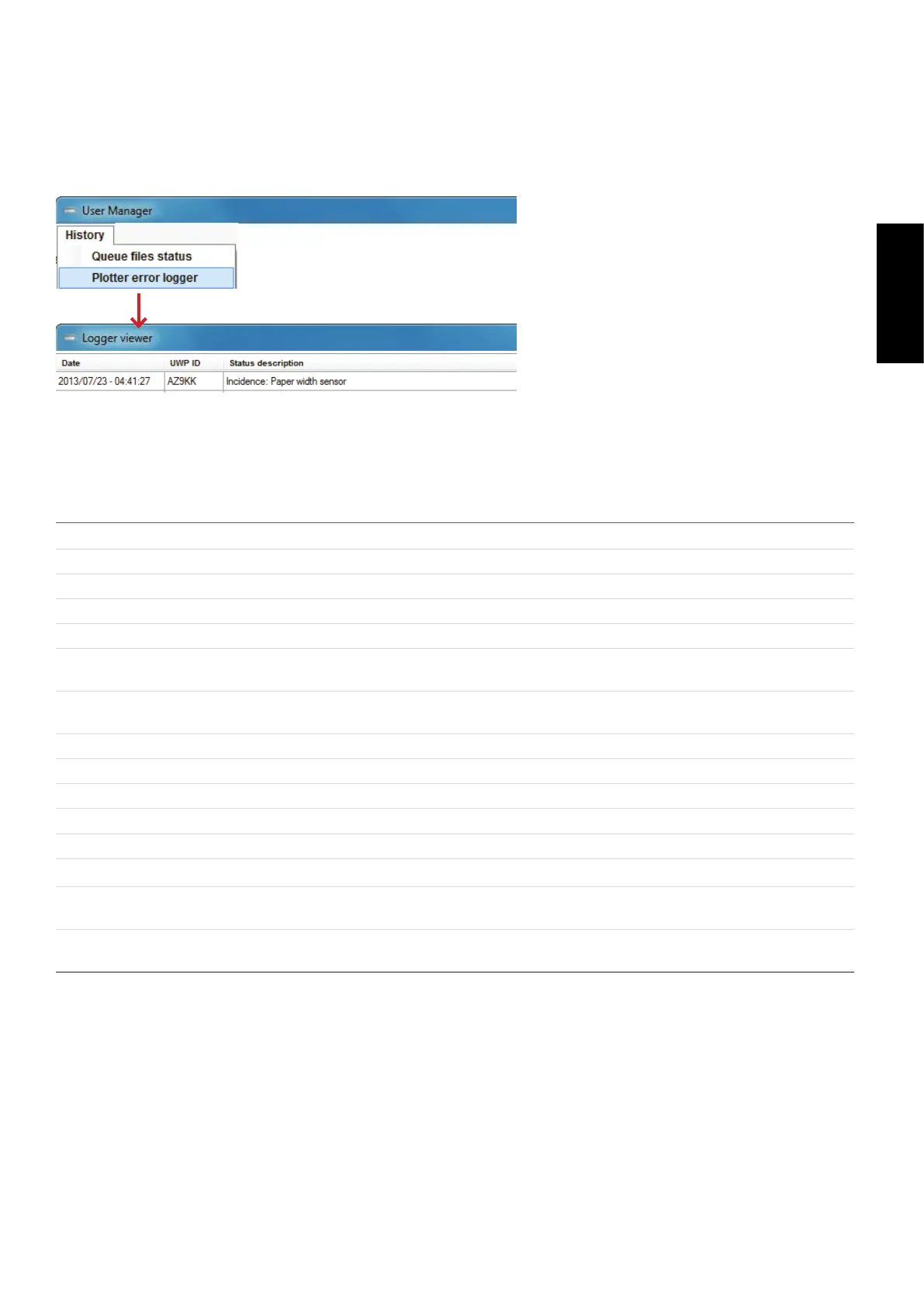

Click program History / PLOTTER error logger to see the plotter error history.
The plotter error logger displays plotter errors, along with the date, the plotter number, and description of the error.
Possible status descriptions shown in history
Failure: PH Motor
Electrical or mechanical error on print head movement.
Failure: Paper motor
Electrical or mechanical incidence on paper movement.
Failure: Internal antenna
Cannot access the contents of the internal chip.
Failure: Internal EEPROM
Cannot access the contents of the internal memory.
Failure: Finance program
Finance period exceeded.
Failure: Motor overcurrent protection
Serious excess motor consumption for electrical or mechanical rea-
sons.
Failure: Encoder strip reading error
Serious error reading encoder strip. The encoder strip is dirty or de-
fective.
Incidence: Paper width sensor
Error reading the paper position.
Incidence: Paper alignment
The paper has displaced horizontally while printing.
Incidence: Overspeed
The print head has exceeded the maximum speed.
Incidence: Wrong PCB
The main board conguration does not match the plotter.
Incidence: PLOTTER calendar
Incorrect internal clock date.
Incidence: Low power mode
Internal battery has been turned on after power failure.
Incidence: motor overcurrent protection
Slight excess motor consumption for electrical or mechanical rea-
sons.
Incidence: encoder strip
Error in reading the encoder strip. The encoder strip is dirty or defec-
tive.
