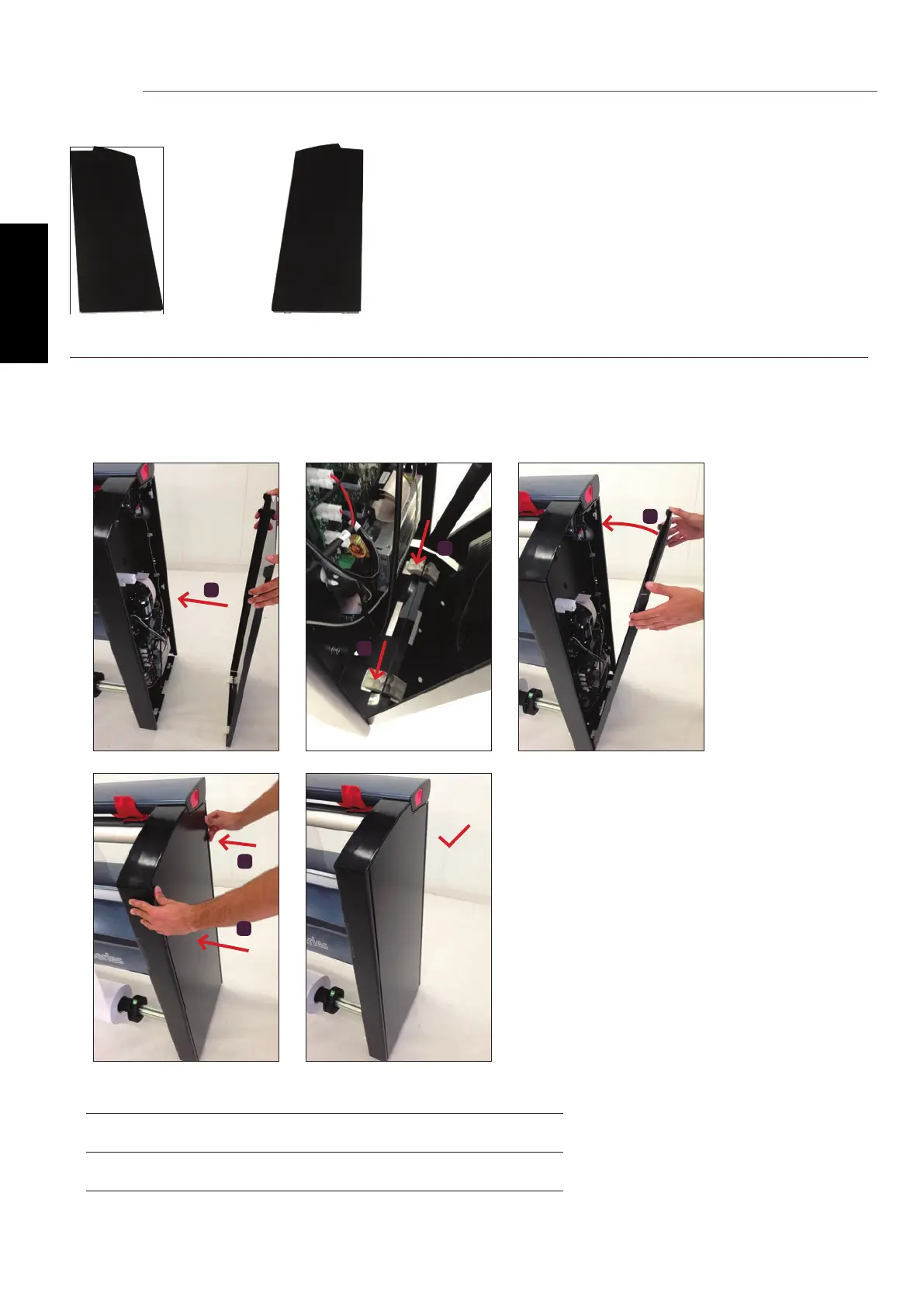

Side covers
To nish the assembly of the plotter, install covers on both side panels. Secure each cover using six washers and
bolts.
1
Fit the cover to the right-side panel.
2
Put the square into the centering holes.
3
Repeat the same procedure for the left-side panel.
4
4
1
2
2
3
Step 16 of 17
