To run the Analog Input test
1 Open the GERBER EDGE FX web interface by entering the printer's IP address in the
Location or Address line of your web browser (for example: http://169.254.128.129).
The Welcome to GERBER EDGE FX screen displays.
2 Click the Diagnostics link to open the GERBER EDGE FX Diagnostics page.
3 Click the Input/Output link to open the Input/Output Diagnostics page.

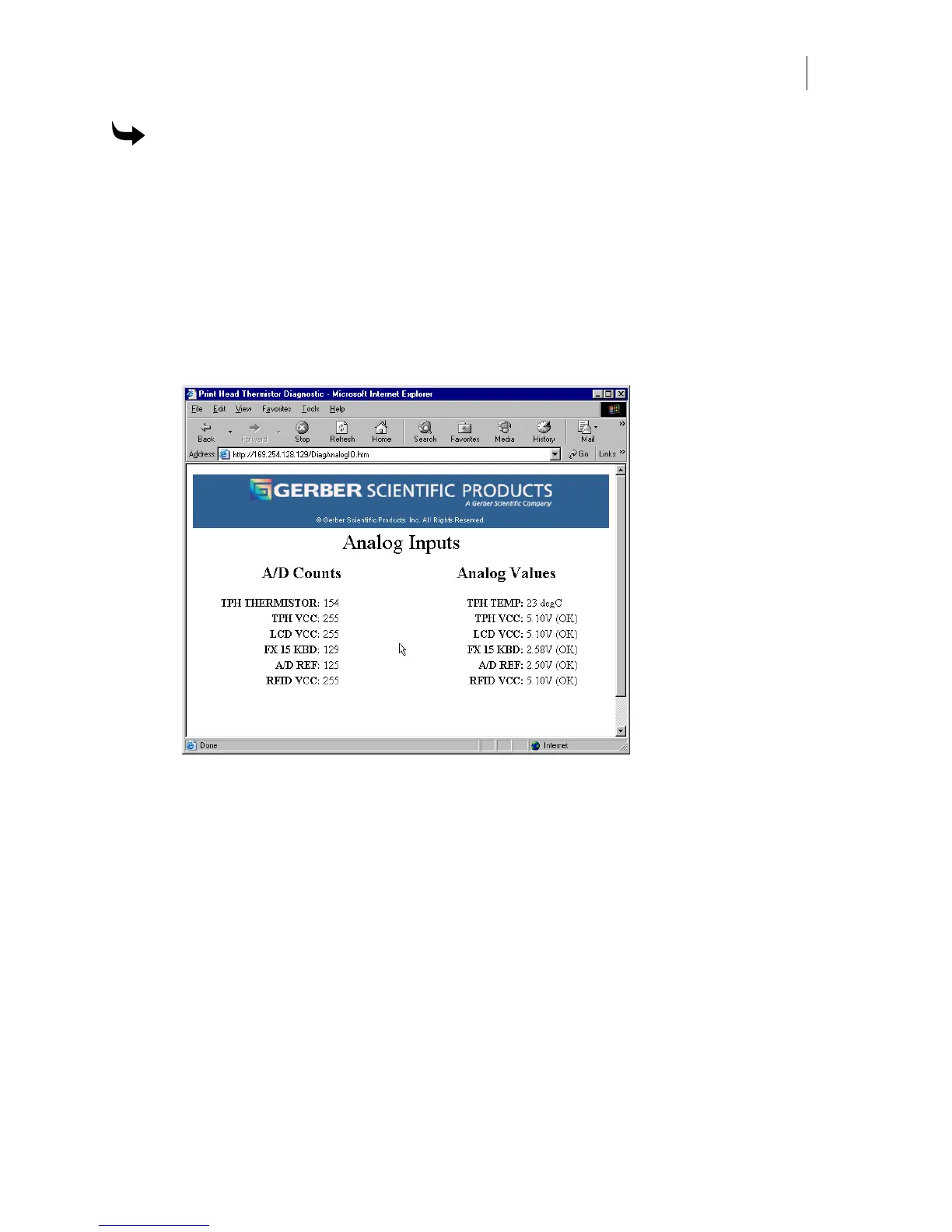

4 Click Analog Inputs to diagnose and display the A/D Counts and Analog Values for
the analog inputs. These values can not be altered. The displayed information is used
as a reference when troubleshooting a printer in conjunction with GSP Technical
Support.
5 Click Done to return to the EDGE FX Diagnostics page.
