GM Energy V2H Bundle Installation Manual 10
Clearance
The minimum distances shown in *Dimension is recommendation
Figure 3 must be maintained (unless noted as recommendation) to limit equipment derating in certain operating modes,
temperatures, and power levels. Refer to local regulations for additional guidance on mounting position.
*Dimension is recommendation

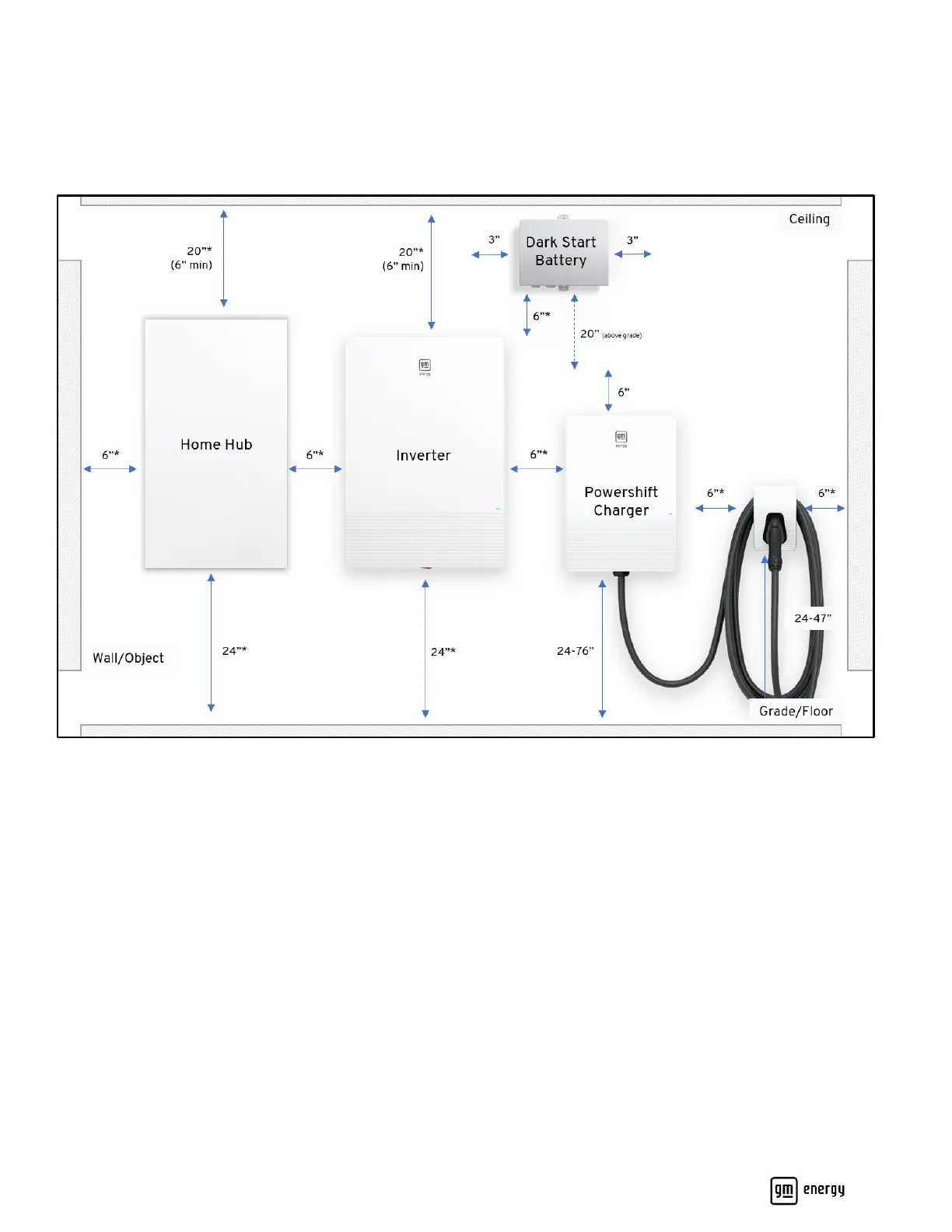

Figure 3: V2H Bundle Clearances
