GM Energy V2H Bundle Installation Manual 84
APPENDIX D: ELECTRICAL DIAGRAMS
D.1 Electrical Diagram Examples and App PCS Settings

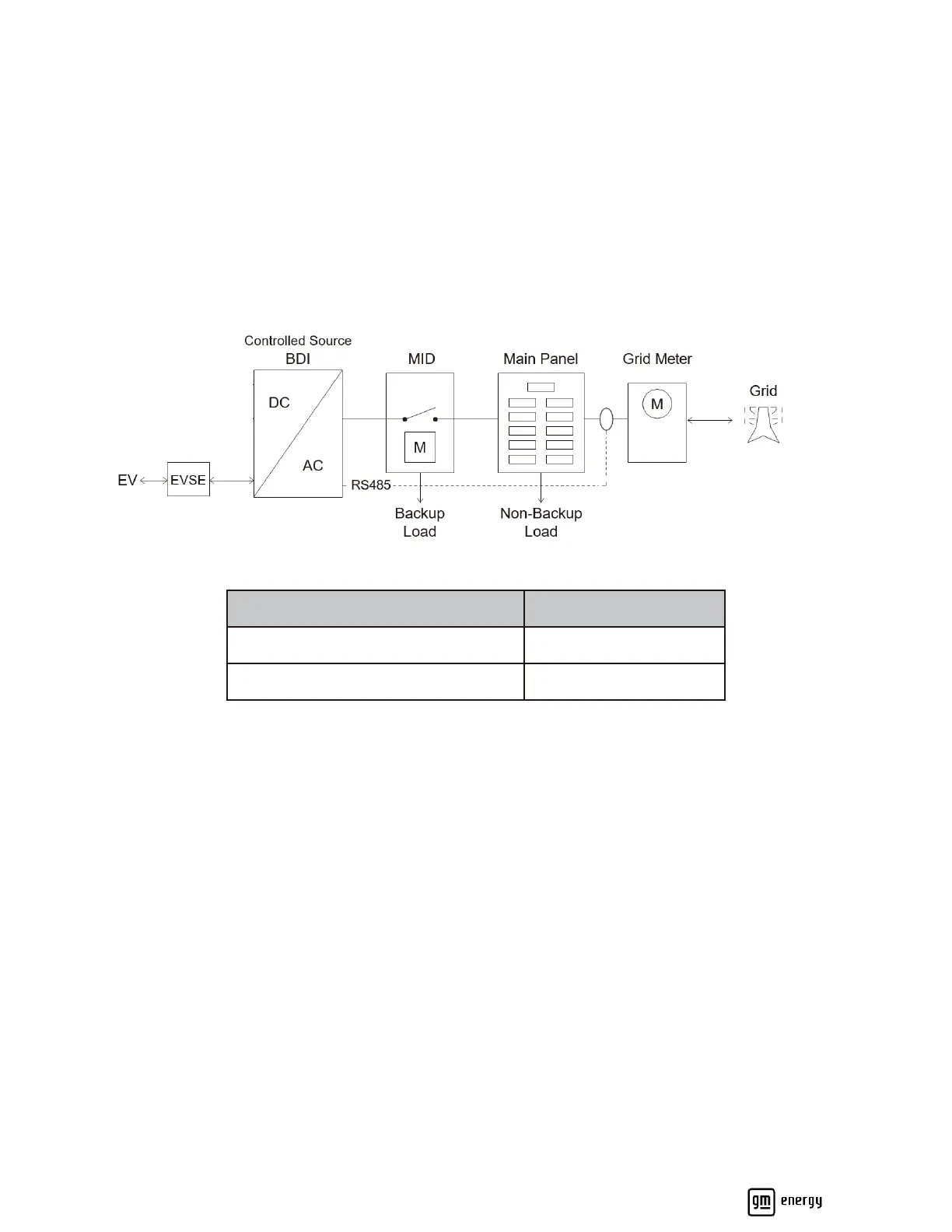

Meter Placed at Service Entrance – Partial Home Backup
Place the PCS meter at the grid connection to real time monitor the grid current. Inverter can manage to control the output
power based on the calculation results of the load condition, if it is over 80% of busbar rating. At the moment the current hits
80% the Inverter stops providing power. The main breaker capacity must be set in the commissioning app properly for this
setup.
