GM Energy V2H Bundle Installation Manual 19
Inverter Details
The Inverter has eight options for raceway entry (Figure 9):

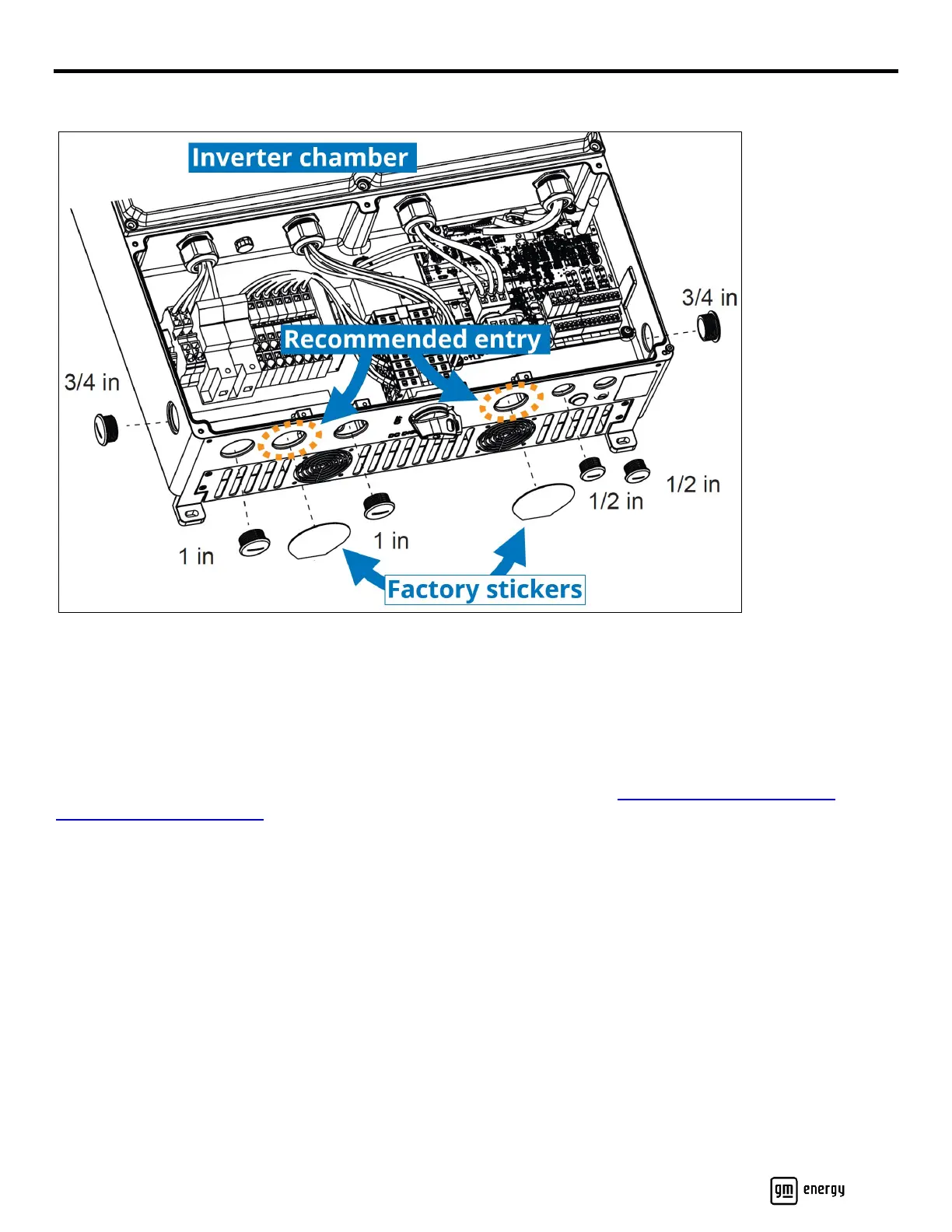

Figure 9: Inverter raceway options
On the bottom are four 1″ and two 1/2″ entry locations. There is also one 3/4″ on the lower left side, and one 3/4″ on the
lower right side. Two of the 1″ locations have a sticker over them from the factory. These two with stickers are the
recommended entry locations. If you remove a conduit plug to use one of the 1″ entries that does NOT have a sticker
over it, use that conduit plug to replace a sticker. There are no entry locations on the back or on the top and remember
the RSD circuit must be wired into the Inverter.
The Inverter has DC inputs for a stationary storage battery and Solar panels. At the time of this manual publishing date,
these features are not enabled. Further documentation will be made available at https://gmenergy.gm.com/for-
home/resources-and-support when the features become available. For further information, please call the GM Energy
Support Center at 1-833-64POWER
