Home Hub Details

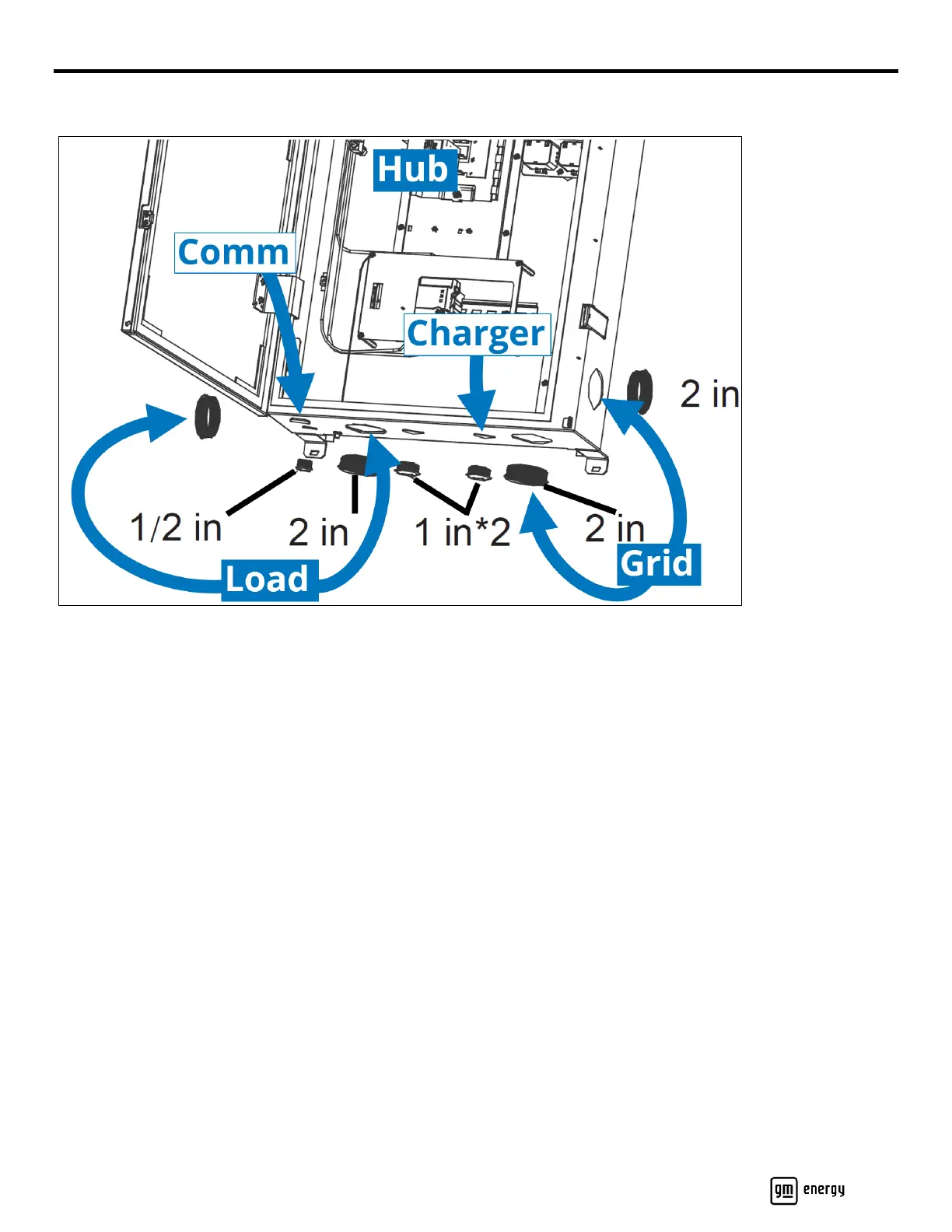

The Home Hub has seven options for raceway entry (Figure 8):
Figure 8: Home Hub raceway options
On the bottom are two 2″, two 1″, and one 1/2″ entry locations. There is also one 2″ on the left lower side and one 2″ on
the right lower side. The left 1″ location is for the conduit coming from the Inverter. The left 1/2″ location is for the
conduit carrying the communication wires. Each location is pre-drilled and has a threaded plug. There are no entry
locations on the back/rear.
The Home Hub may require installer-provided accessories such as a main breaker or an additional meter. If these are
required, prepare them before mounting the Hub. Refer to Appendix C for further details on optional accessories.
After installing the Home Hub, install the antenna from the accessory bag onto the threaded port at the bottom left of
the Hub, taking care not to block the antenna area with raceway conduit bodies. See Section 3.0 for full details on
accessories.
