GM Energy V2H Bundle Installation Manual 42
*Prepare one copper 20″ black L1 and one copper 20″ red L2 conductor for this internal Hub connection. Size the wires
per the Charger amps rating (set via DIP switches in Charger). Maximum is 2 AWG for 80 A rating.
Allow for sufficient clearance when routing wires near Home Hub dead front cover hinge locations.

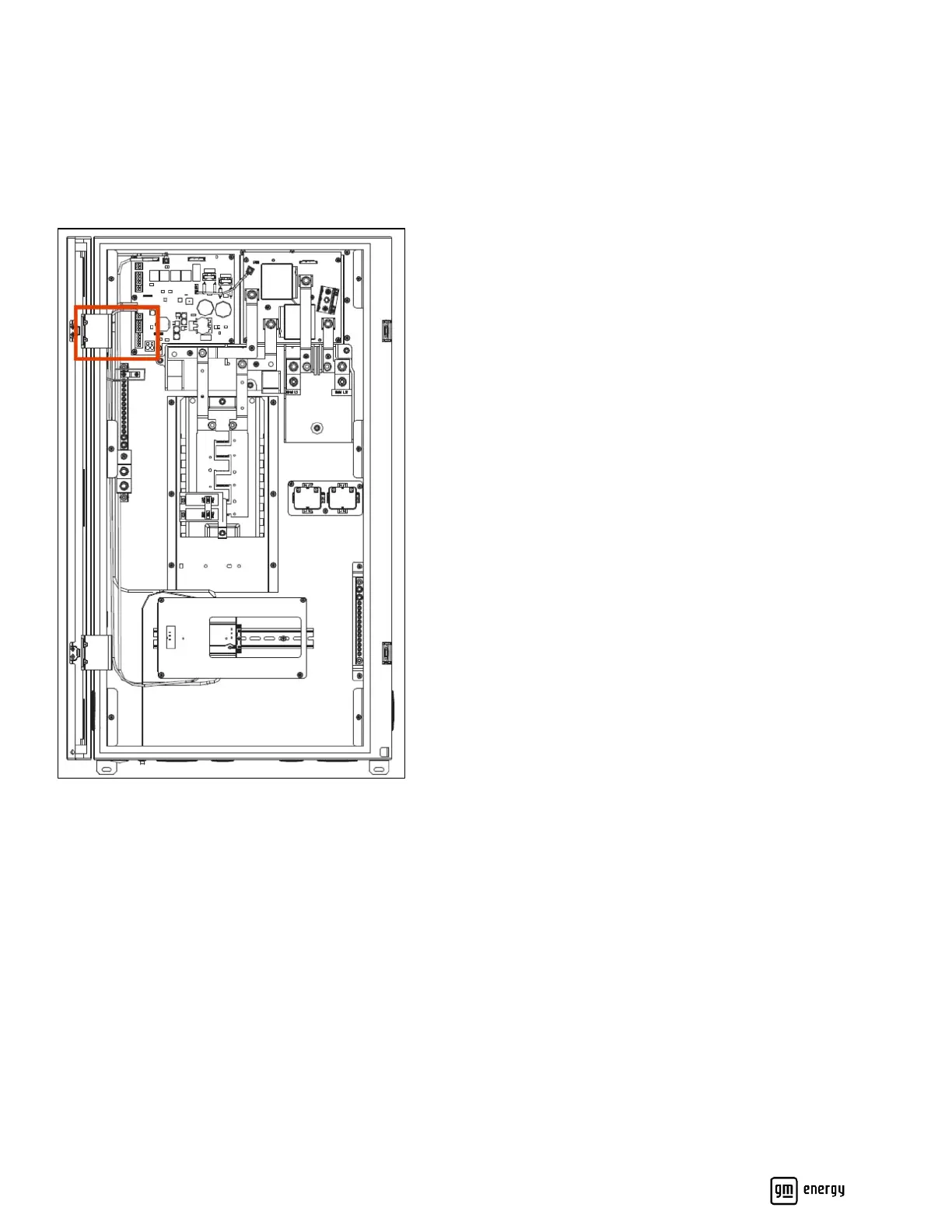

Figure 30: Callout for Home Hub hinge keep out zone
