P a g e | 140

GXV3350 User Guide

Version 1.0.1.8

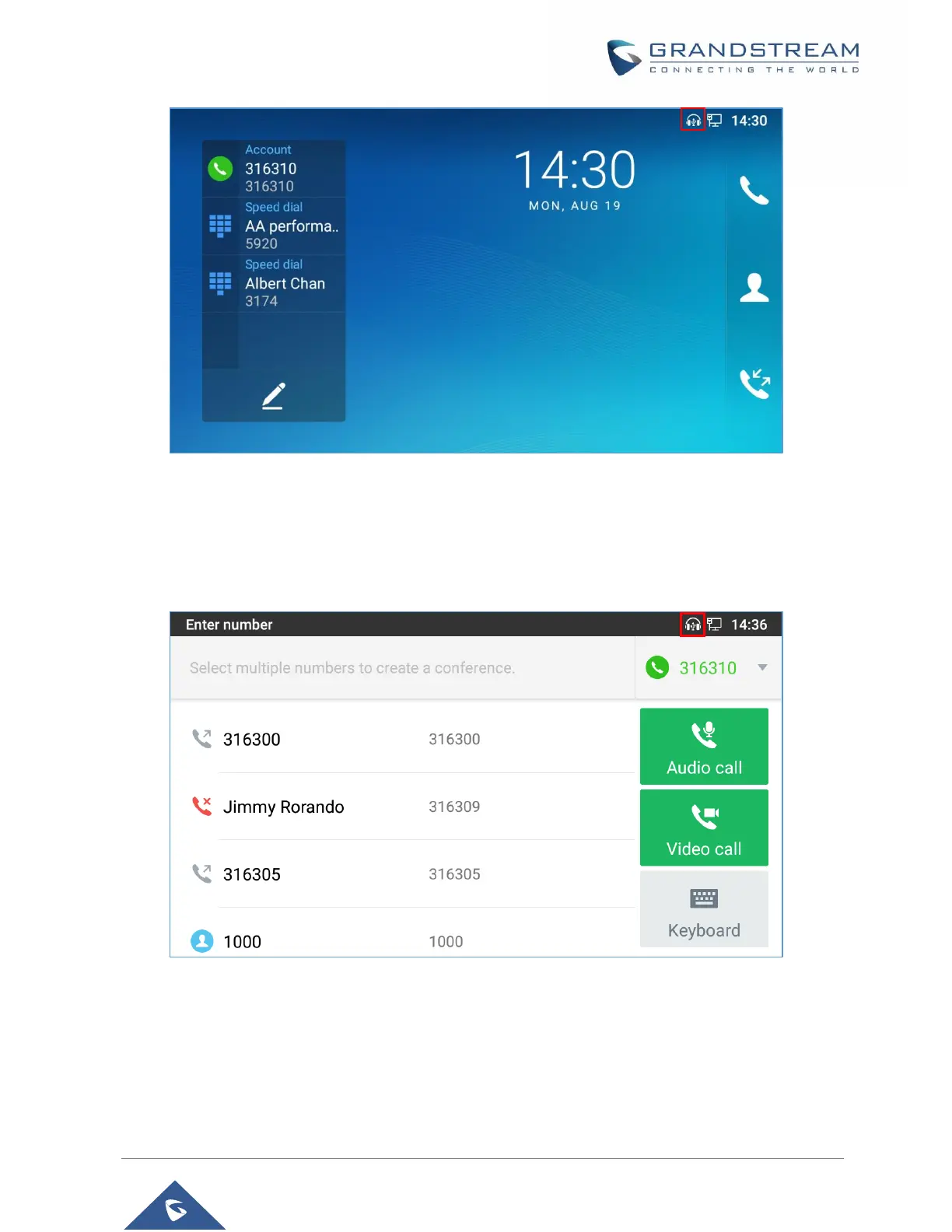

Figure 149: USB Headset Connected

In the calling page, user can press on the Headset button (shown in figure below) when plugging in USB

headset to enable USB headset. The status bar shows the icon modified indicating that the USB headset

is being used for speaking.

Figure 150: USB Headset Used for Call

During the call, users can tap on “Headset” to toggle between Speaker and USB Headset.

USB

The GXV3350 supports USB connection with USB storage devices. To connect and access USB storage

device:
