P a g e | 77

GXV3350 User Guide

Version 1.0.1.8

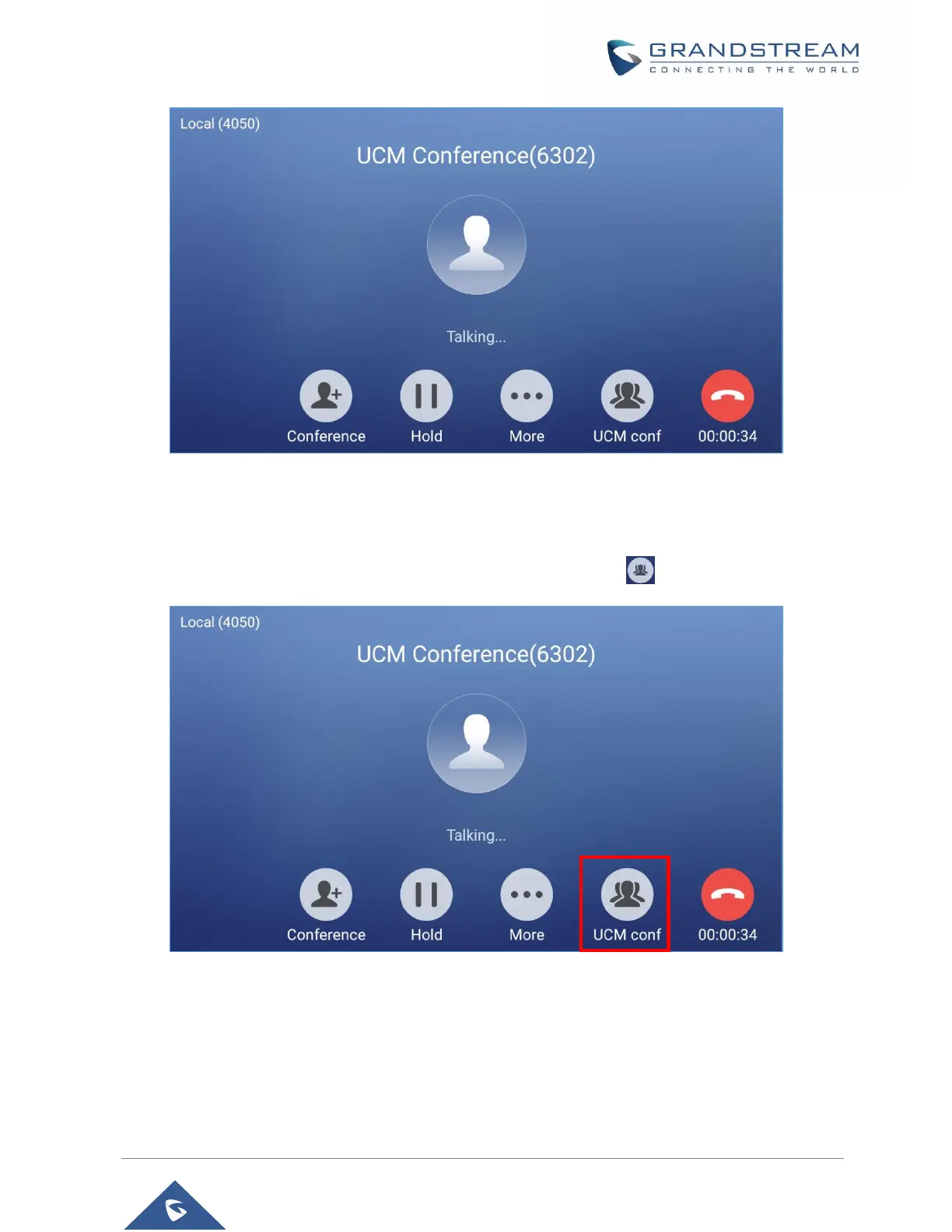

Figure 73: Join UCM Conference Room

CCM (Conference Call Menu)

During a UCM conference, Administrators can tap on the UCM conf menu

Figure 74: UCM conference Menu

Administrators could view/invite members, bridge conference, remove bridge, mute, unmute and lock the

conference
