P a g e | 29
GXV3350 User Guide
Version 1.0.1.8
The LCD will display the booting up screen or firmware upgrading information. Before continuing,
please wait for the main screen display to show up.

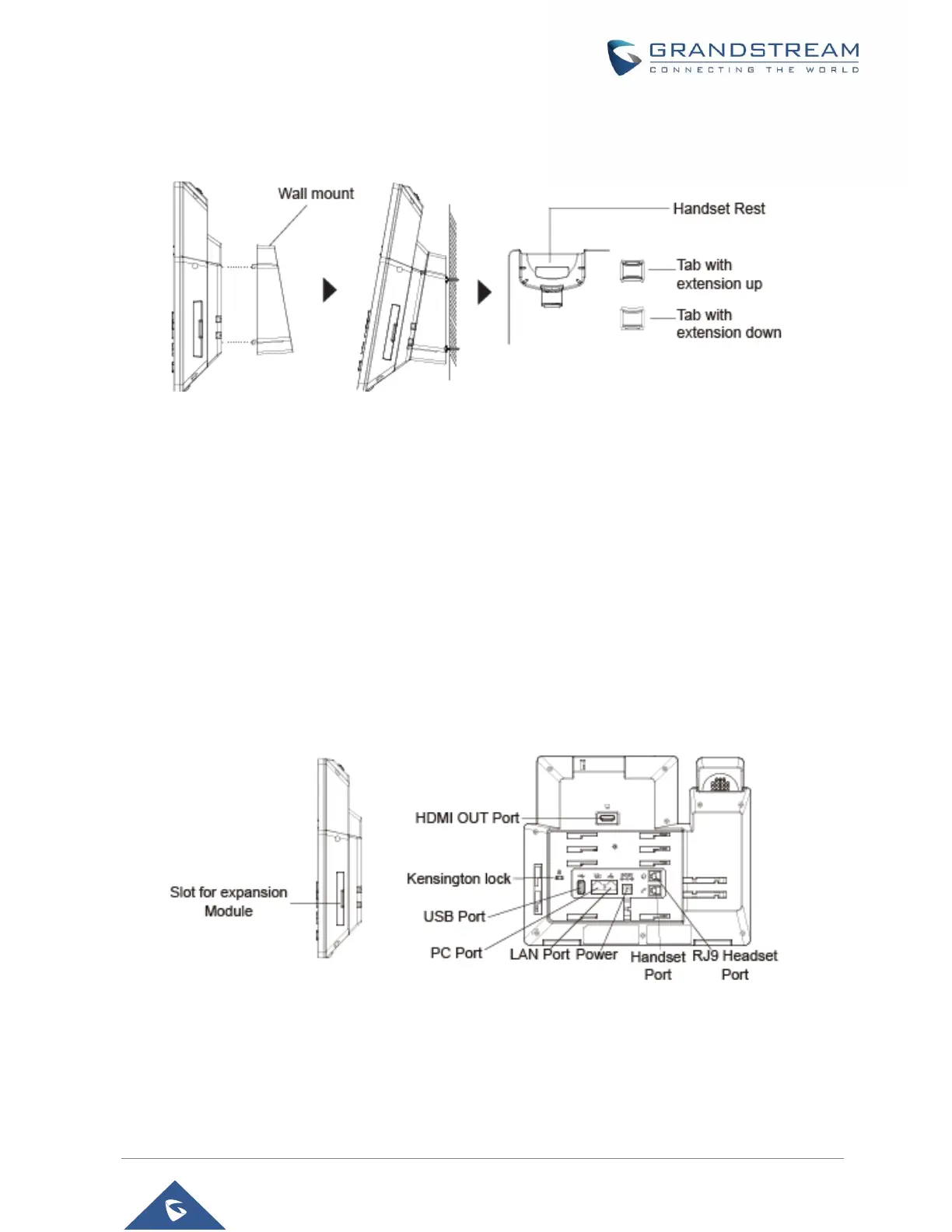

Figure 5: Tab on The Handset Cradle
Connecting the GXV3350
To setup your GXV3350, please follow the steps below:
1. Connect the handset and main phone case with the phone cord;
2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a router (LAN side of the
router) using the Ethernet cable;
3. Connect the 12V DC output plug to the power jack on the phone; plug the power adapter into an
electrical outlet. If PoE switch is used in step 2, this step could be skipped;
4. The LCD will display booting up or firmware upgrading information. Before continuing, please wait
for the main screen display to show up;
5. Using the web configuration interface or from the menu of the touch screen, you can further
configure network connection using static IP, DHCP etc.
Figure 6: GXV3350 Back / Side View
GBX20 Extension Module
The GXV3350 uses GBX20 as the extension module. The extension module is an ideal solution for the
busy enterprise environment looking to add the ability to receive and dispatch calls efficiently. Each GBX20
extension module has 20 programmable buttons, Left and Right buttons, supporting 40 Multiple Purpose
To Next Page
