P a g e | 58

GXV3350 User Guide

Version 1.0.1.8

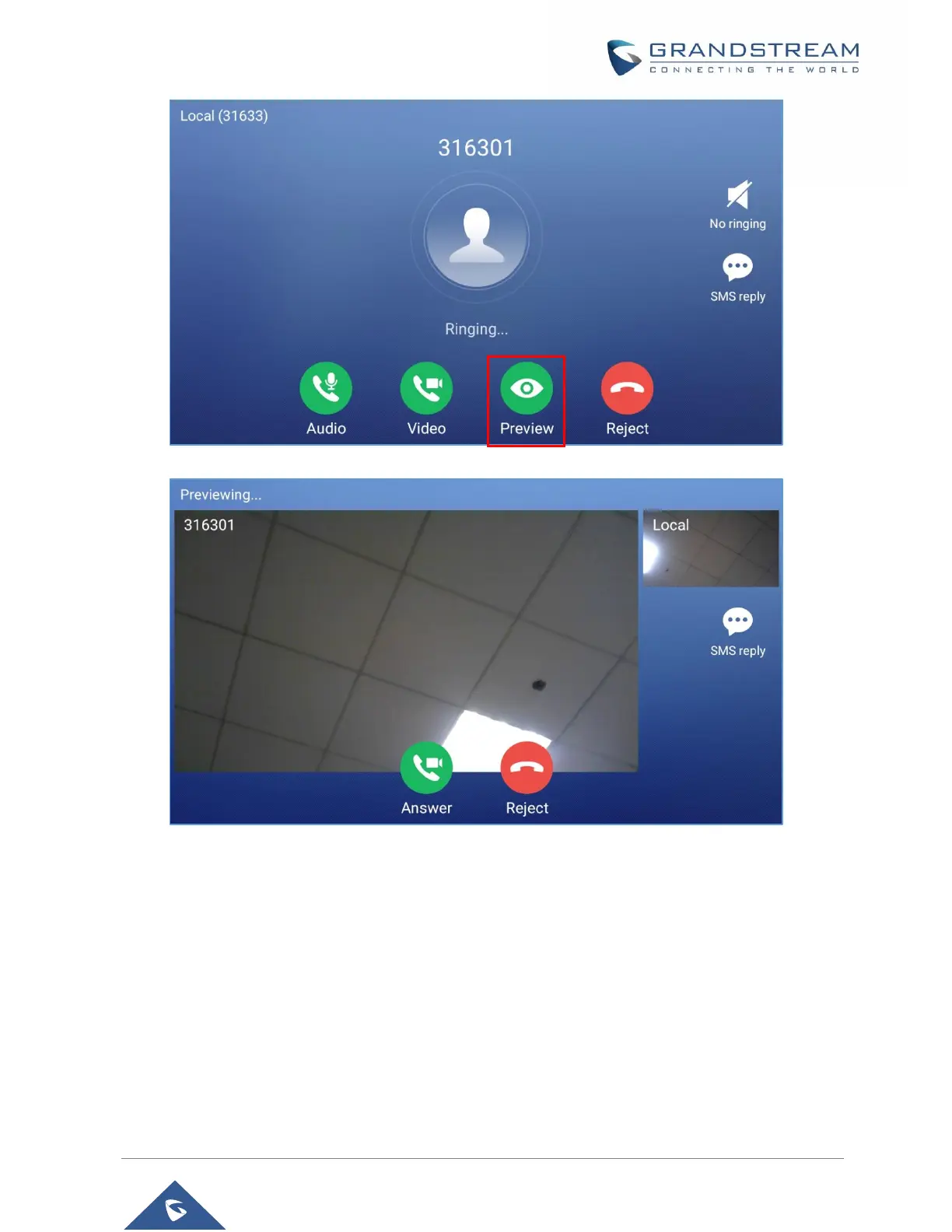

Figure 41: Single Incoming Call – Preview-1

Figure 42: Single Incoming Call – Preview-2

Transfer Function for Incoming Call

 If the phone set the “Transfer” feature for the incoming call from Web UI, the phone will display one

more key “Transfer” when there is an incoming call. End users will have the possibility to transfer the

call without answering. After pressing “Transfer” button, end user can enter manually destination or

press “MPK” to select a destination. “Reject” key to reject it. This feature should be supported by the

SIP server. Please contact service provider for more information.
