P a g e | 141

GXV3350 User Guide

Version 1.0.1.8

1. Insert an USB storage device into USB port at the back of the GXV3350.

2. It will take a few seconds for the GXV3350 to prepare the connection. Then the USB storage icon

will show on the status bar.

3. To access USB storage, go to GXV3350 MENUFile Manager  USB. Tap on it to access and

manage your data.

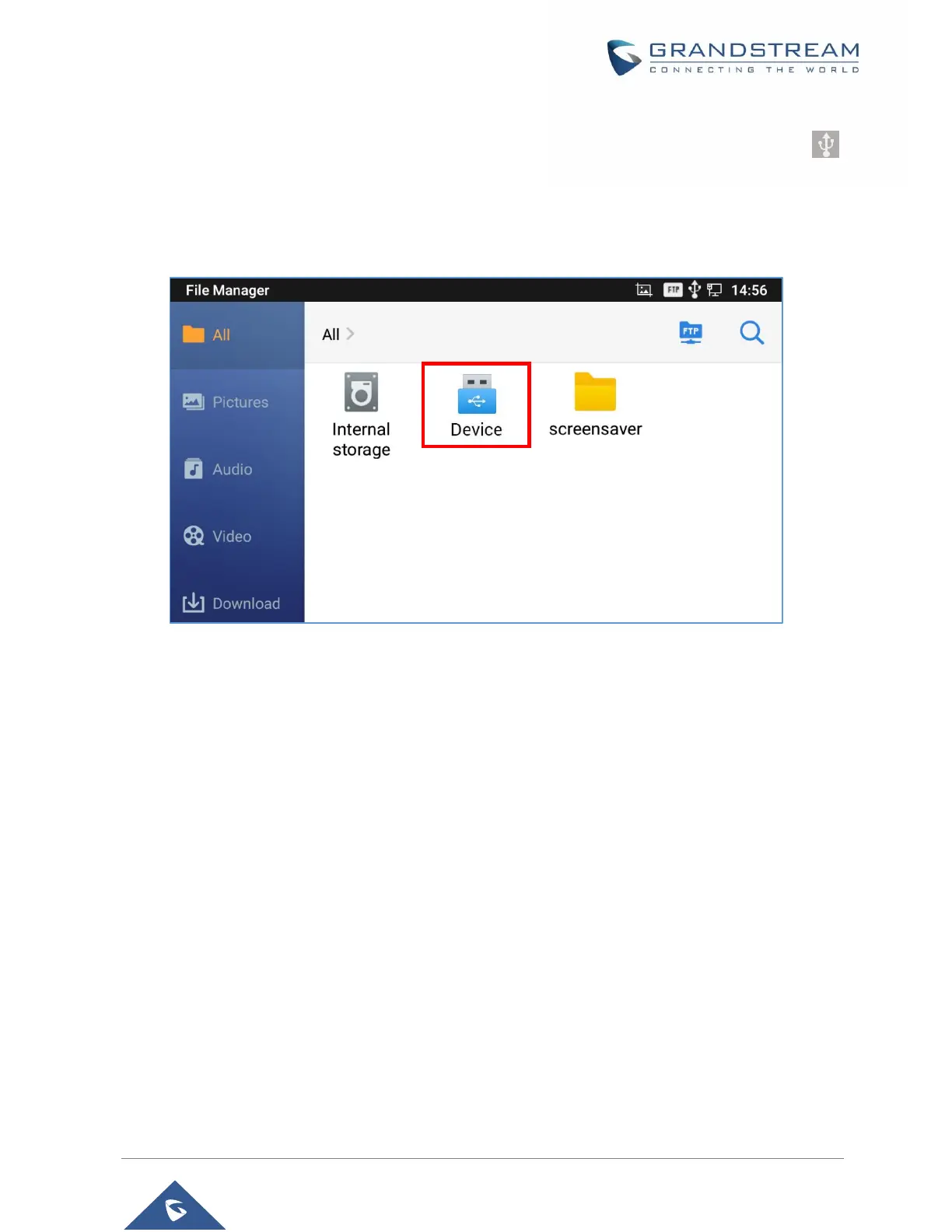

Figure 151: USB Storage Device Connected to GXV3350
