7. PRINTING WAVEFORMS & DATA
7-3 NUMERICAL VELOCITY
Mode 1 (Arterial)
Parameters Abbrs.
Systolic velocity [cm/s] S
Mean velocity [cm/s] MN
Heart rate [bpm] HR
Mode 2 (Venous)
Parameters Abbrs.
Systolic velocity [cm/s] S
Mean velocity [cm/s] MN
MODE 1: Most recent 3-beat average (measurement mode)
First 3-beat average (freeze mode)
MODE 2: Most recent 10 second average (measurement mode)
First 10 second average (freeze mode)
7-4 4-STEP CALIBRATION
The Calibration Print (CAL PRINT) option is available in Mode 1 and Mode 2.
To print the 4-step calibration at the end of the waveform, set the CAL PRINT option to ON in
the Menu. See 5-3-17 OTHERS - CAL PRINT for details.

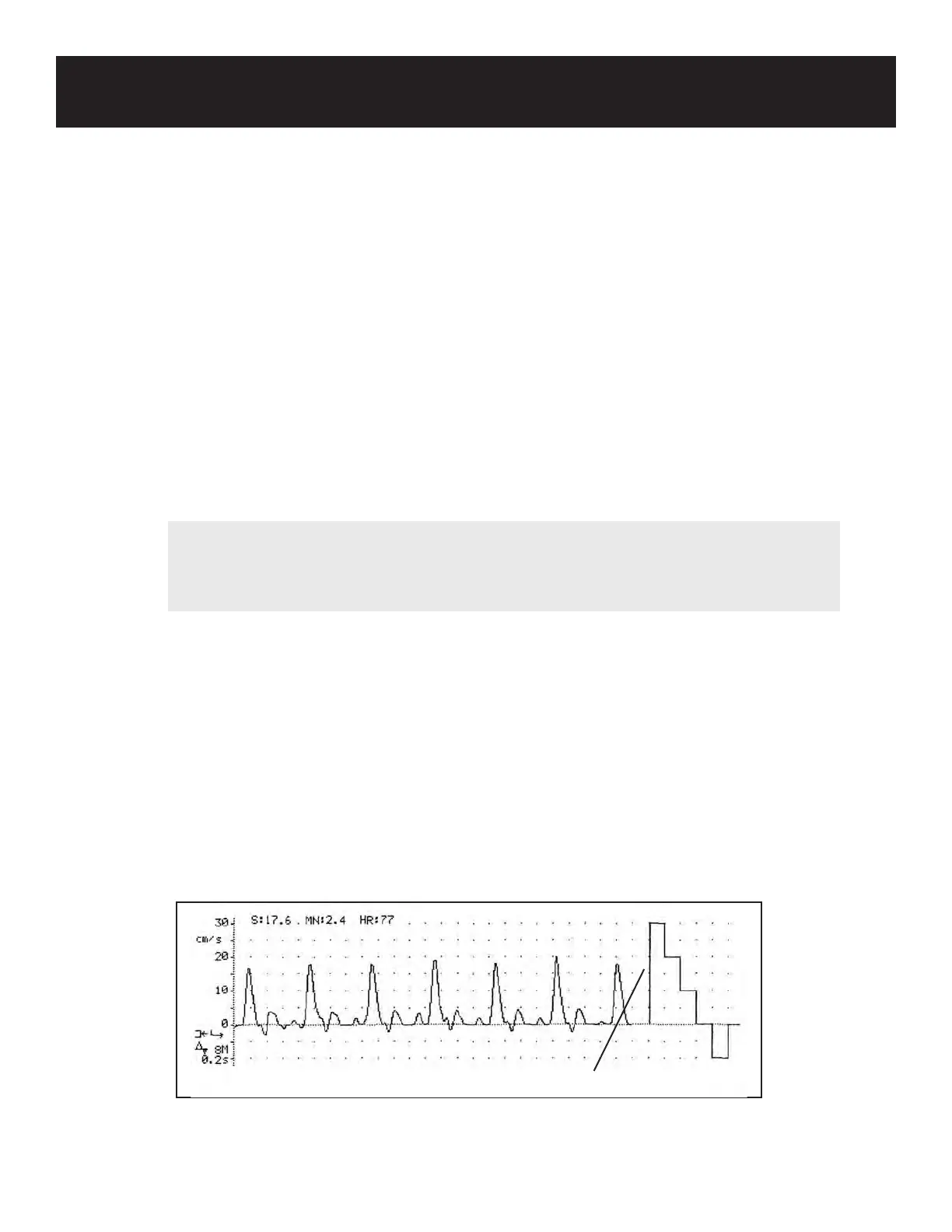

4-Step Calibration
NOTE
Computations are based on the following parameters. If the heart rate cannot be
calculated because of an over +/-25% irregularity due to Arrhythmia or a venous
waveform, “HR***” will be printed to indicate the error.
