HALE SmartFOAM - Foam Pump Assembly - 3.3, 5.0, and 6.5

Page 100
SmartFOAM

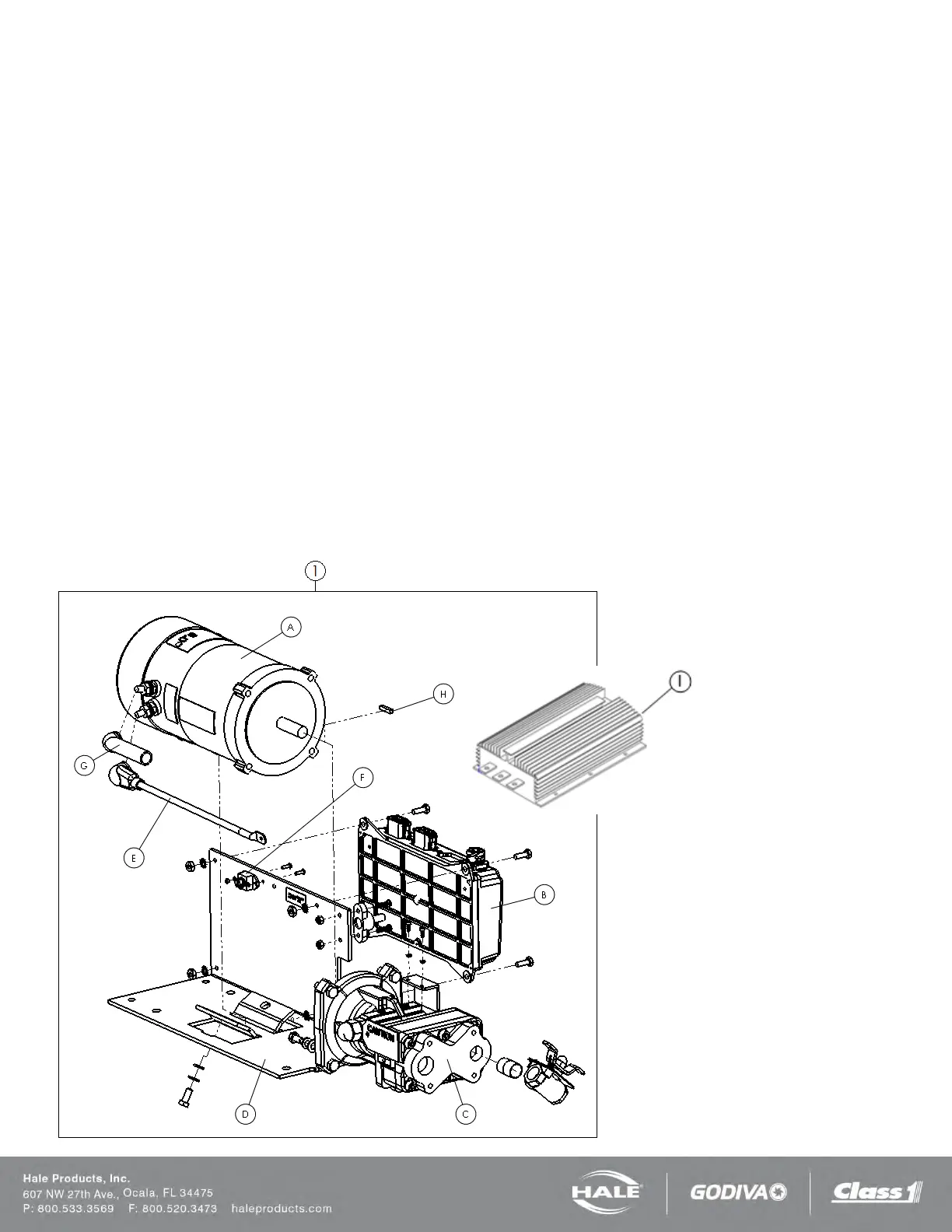

FOAM PUMP ASSEMBLY – 3.3, 5.0, and 6.5
Item Part number Qty Description
1. 501-3120-05-0 1 Motor/Pump Assembly – 3.3 (12VDC)
501-3120-06-0 1 Motor/Pump Assembly – 3.3 (24VDC)
501-3130-05-0 1 Motor/Pump Assembly – 5.0 (12VDC)
501-3130-06-0 1 Motor/Pump Assembly – 5.0 (24VDC)
501-4480-04-0 1 Motor/Pump Assembly – 6.5 (24VDC)
501-4480-06-0 1 Converter/Motor/Pump Assembly – 6.5 (12VDC)
A. 045-0770-00-0 1 Motor 3/4 HP – 3.3/5.0 (12VDC)
045-0770-01-0 1 Motor 3/4 HP – 3.3/5.0 (24VDC)
045-0770-02-0 1 Motor 1-1/4 HP 24VDC – used on both 6.5 systems
B. 610-00044 1 Motor Controller
C. 501-3110-00-0 1 Pump – 3.3
501-3130-00-0 1 Pump – 5.0
501-4480-00-0 1 Pump – 6.5
D. 019-02276 1 Mounting Base – 3.3/5.0 (both 12/24VDC) & 6.5 (24VDC)
019-02276-100 1 Mounting Base – 6.5 (12VDC)
E. 513-0770-00-0 1 Ground wire – 3.3/5.0 (both 12/24VDC) & 6.5 (24VDC)
513-00174-020 1 Ground wire – 6.5 (12VDC)
F. 122609 1 Diode 45V 240A
G. 513-00125-001 1 Power wire – used on all systems
513
-00174-010 1 Converter power wire – added on 6.5 (12VDC) only
H. 017-0680-00-0 1 FPG drive key
I. 610-00082 1 12VDC to 24VDC Converter
