SmartFOAM

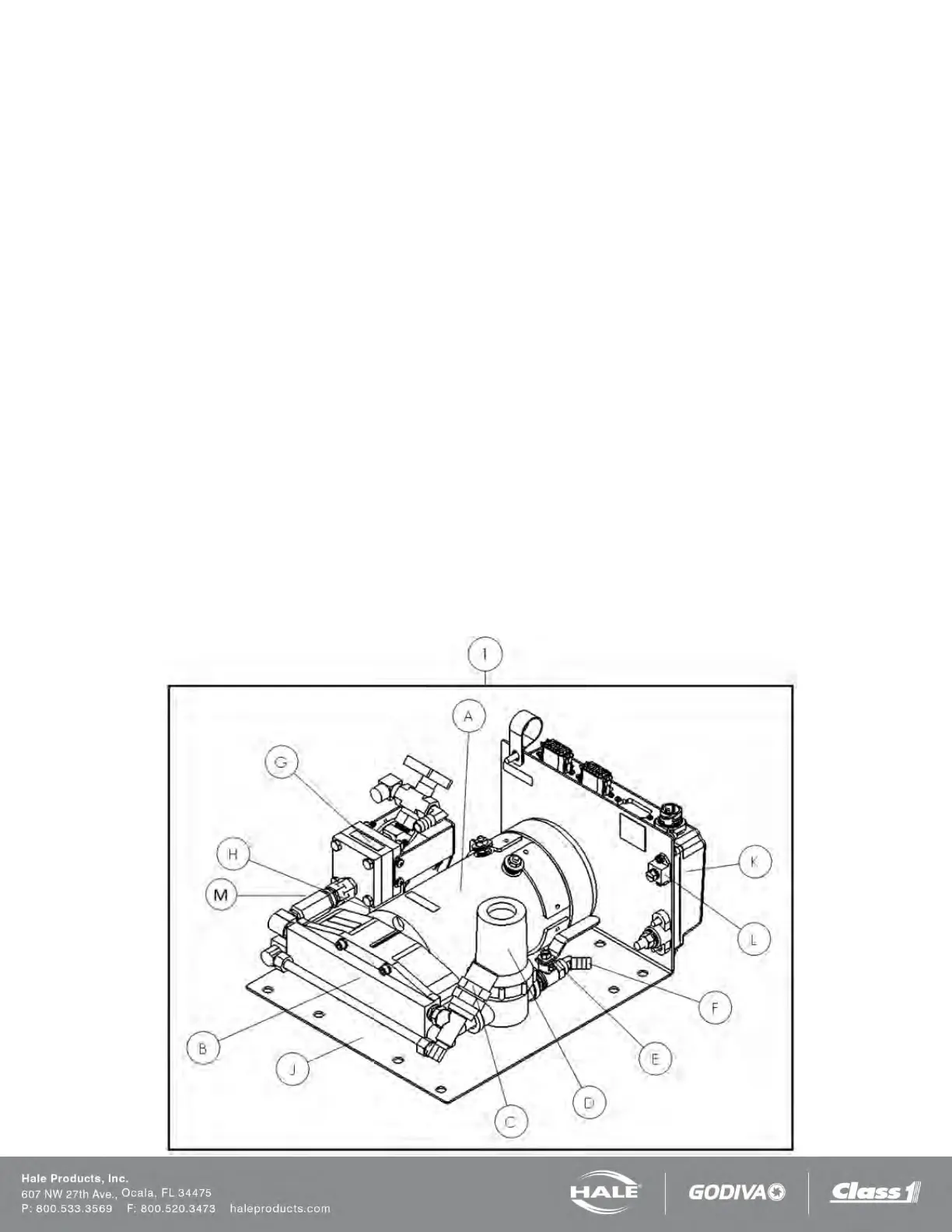

FOAM PUMP ASSEMBLY – 1.7AHP AND 2.1A
Item Part number Qty Description
1. 115498 1 Upper Level Assembly - 2.1A - 12 Volt
115499 1 Upper Level Assembly - 2.1A - 24 Volt
119276 1 Upper Level Assembly - 1.7AHP - 12 Volt
119277 1 Upper Level Assembly - 1.7AHP - 24 Volt
A+B 114034 1 Motor/Pump Assembly - 2.1A - 12 Volt
+C+D 114035 1 Motor/Pump Assembly - 2.1A - 24 Volt
119274 1 Motor/Pump Assembly - 1.7AHP - 12 Volt
119275 1 Motor/Pump Assembly - 1.7AHP - 24 Volt
A. 110521 1 Motor 1/2 HP - 2.1A/1.7AHP - 12 Volt
110393 1 Motor 1/2 HP - 2.1A/1.7AHP - 24 Volt
B. 110522 1 Pump Assembly (without motor) - 2.1A
119345 1 Pump Assembly (without motor) - 1.7AHP
C. 538-1750-01-0 1 Relief Valve - 2.1A - 250 PSI
119346 1 Relief Valve - 1.7AHP - 400 PSI
D. 510-0200-02-0 1 Strainer Assembly
E. 119266 1 Ball Valve 3/8” MNPT x FNPT with Handle
F. 082-0328-02-0 1 Elbow 45° 3/8” MNPT x Hose Barb
G. 115497 1 Flowmeter Assembly (see next page for parts list)
H. 019-3770-00-0 1 Flowmeter Mounting Bracket
J. 019-02275 1 Mounting Base
K. 610-00044 1 Motor Controller
L. 122609 1 Diode 45V 240A
M. 038-000
99-000 1 Check Valve
