HALE SmartFOAM - Check Valve Manifolds, Flanges and Gaskets

Page 34
SmartFOAM

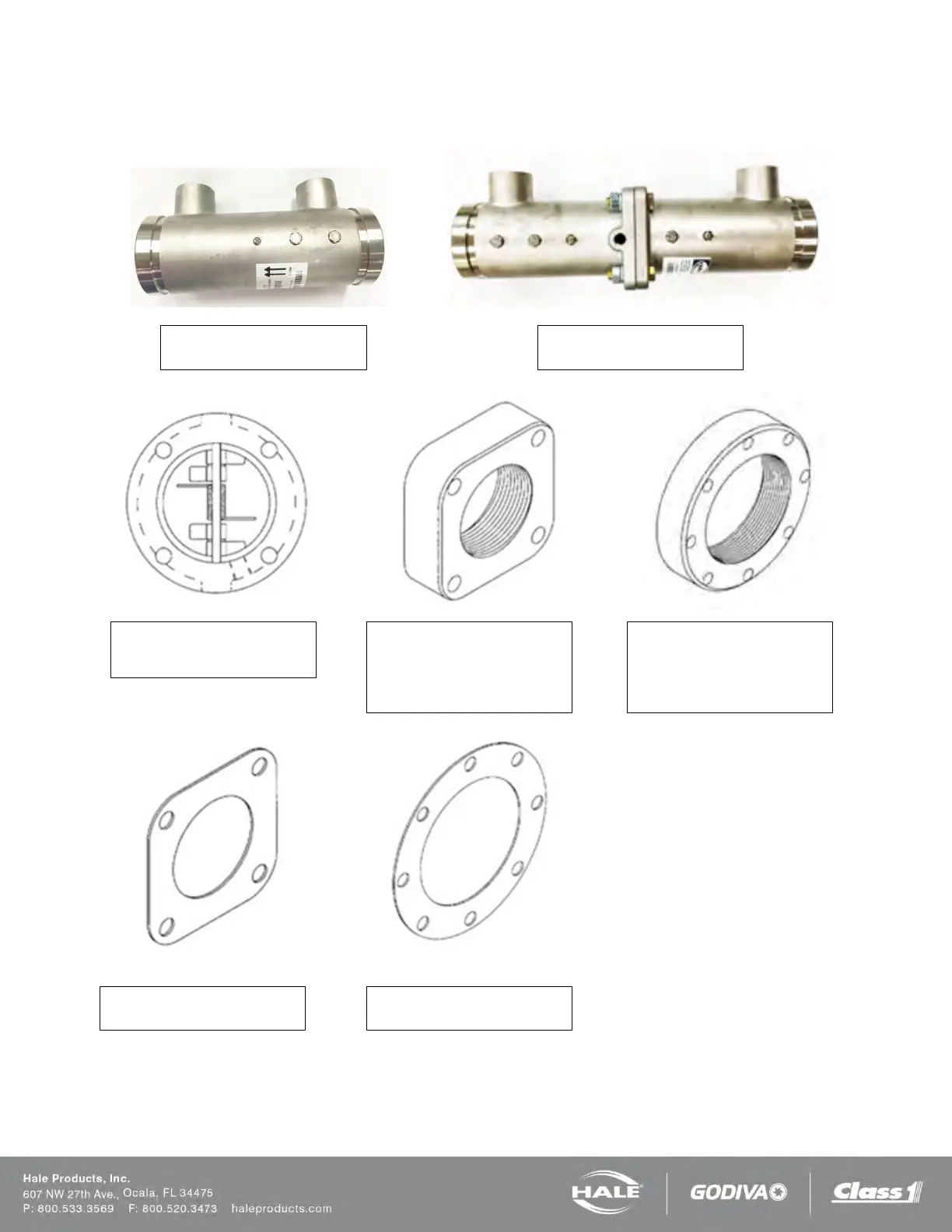

CHECK VALVE MANIFOLDS, FLANGES AND GASKETS
The check valve manifolds include flow sensor, check valve/injector fitting and a single or dual waterway check valve flap-
pers. End connections for the manifolds are 3 inch Victaulic.
Single Check Valve (SCV)
3.0” 538-1850-00-0
Dual Check Valve (DCV)
3.0” 538-1840-00-0
Wafer Check Valve
3.0” 038-1570-06-0
4.0” 038-1570-08-0
Type 115 Flange
3.0” NPT 115-0080-00-0
2.5” NPT 115-0070-00-0
2.0” NPT 115-0060-00-0
BLANK 115-0050-00-0
Type 2433D Flange
4.0” NPT 115-0040-00-0
3.0” NPT 115-0030-00-0
2.5” NPT 115-0020-00-0
BLANK 115-0010-00-0
115 Flange Gasket
046-0050-00-0
2433D Flange Gasket
046-0040-00-0
