When routing control and flow sensor cables take care to
avoid routing them next to antenna wires, radio power
lines and radio components. When there is extra cable,
double the cable back on itself and secure with plastic
wire ties in a flat bundle instead of making a round coil
(Figure 51).

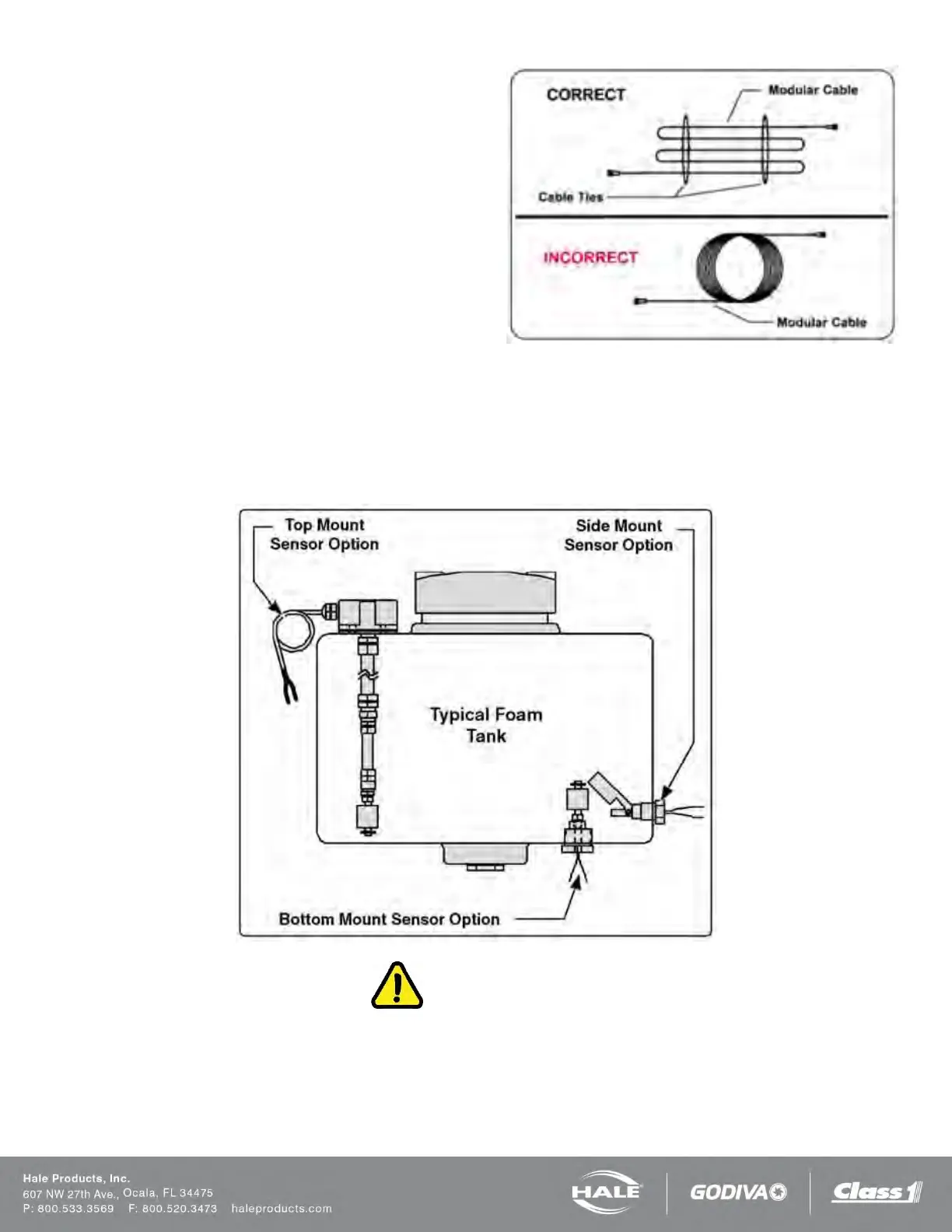

Figure 51: Extra Cable Storage
FOAM TANK LOW LEVEL SENSOR INSTALLATION
The foam low tank level sensor(s) must be installed and wired to monitor the foam concentrate level (Figure 52).
Figure 52: Low Level Sensor Mounting Options
CAUTION!
FOAM TANK LOW LEVEL SENSORS MUST BE USED TO PROTECT THE HALE SMARTFOAM
FROM DRY RUNNING. FAILURE TO USE LOW LEVEL SENSORS WITH THE HALE SMARTFOAM
SYSTEM VOIDS THE WARRANTY.
