HALE SmartFOAM - Flow Meter Assembly - 1.7 Ahp and 2.1 A (115497)

Page 98
SmartFOAM

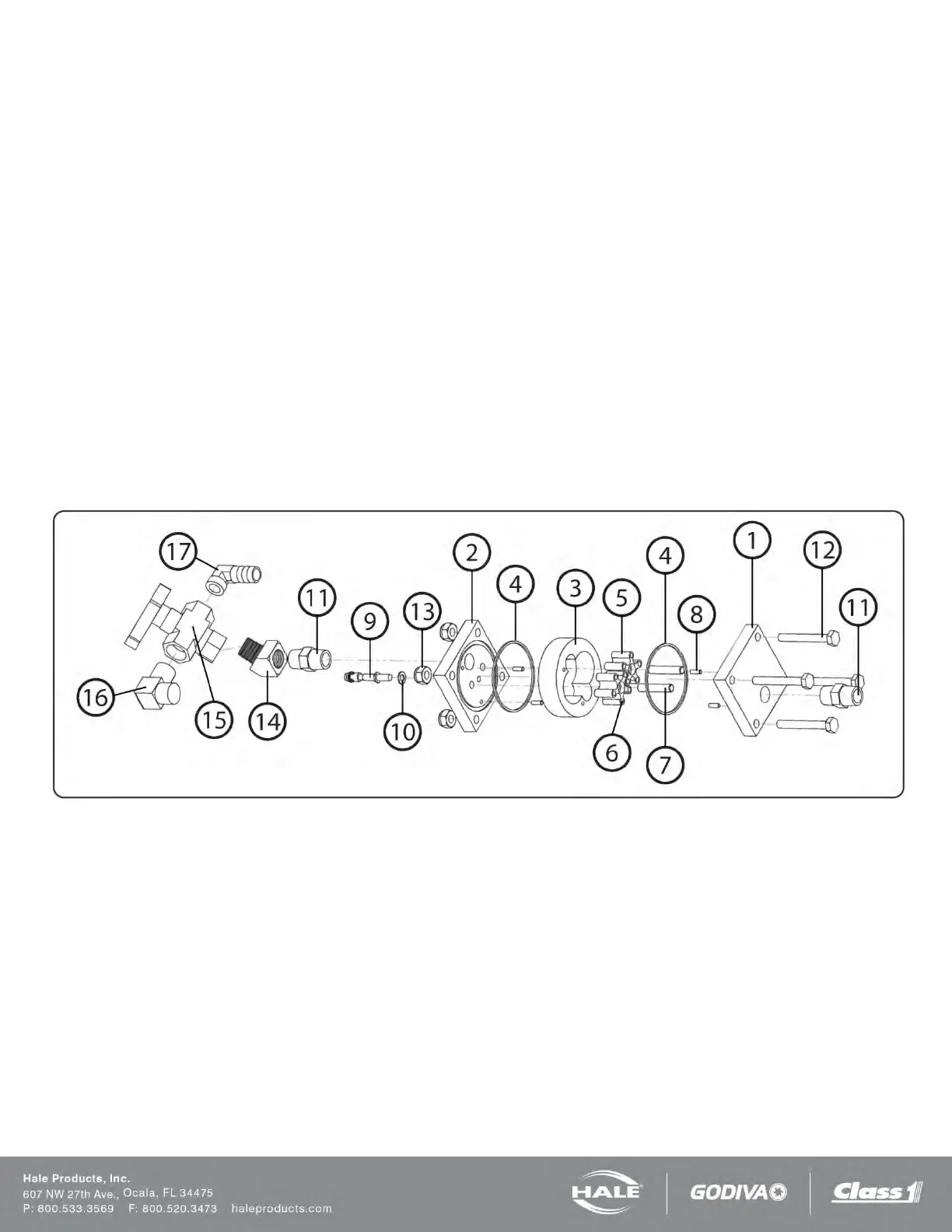

FLOW METER ASSEMBLY – 1.7AHP AND 2.1A (115497)
Item Part number Qty Description
1. 044-1920-01-0 1 Flowmeter Right Cover
2. 044-1920-00-0 1 Flowmeter Left Cover
3. 062-0910-00-0 1 Flowmeter Housing
4. 040-0340-00-0 2 O-ring 2-034 Buna-N 70 Durometer
5. 016-1010-00-0 2 Flowmeter Rotor
6. 064-6390-00-0 10 Sensor Target for Flowmeter Rotor
7. 064-6680-00-0 2 Dowel Pin Ø0.25” x 1.25” SST
8. 064-6260-01-0 4 Dowel Pin Ø0.13” x 0.38” SST
9. 200-2483-00-0 1 Speed Sensor
10. 097-1971-00-0 1 Sealing Washer #10
11. 082-0364-02-0 2 Hex Adapter 2X 3/8” MNPT
12. 018-1220-12-0 4 Hex Head Bolt 1/4-20 x 2.00” SST
13. 110-1206-02-0 4 Nut Nylock 1/4-20
14. 116964 1 Street Elbow 45° 3/8” NPT
15. 038-2220-00-0 1 Ball Valve 3/8” FNPT 3-way
16. 082-0317-02-0 1 Elbow 90o 3/8” MNPT x 1/2-in Tube
17. 082-0327-02-0 1 Elbow 90o 3/8” MNPT x 1/2-in Hose Barb
Speed sensor replacement kit – part number 119348 includes:
Item Part number Qty Description
9. 200-2483-00-0 1 Speed Sensor
4. 040-0340-00-0 2 O-ring 2-034 Buna-N 70 Durometer
10. 097-1971-00-0 1 Sealing Washer #10
