HALE SmartFOAM - Flow Meter Assembly - 3.3, 5.0, and 6.5

Page 101
SmartFOAM

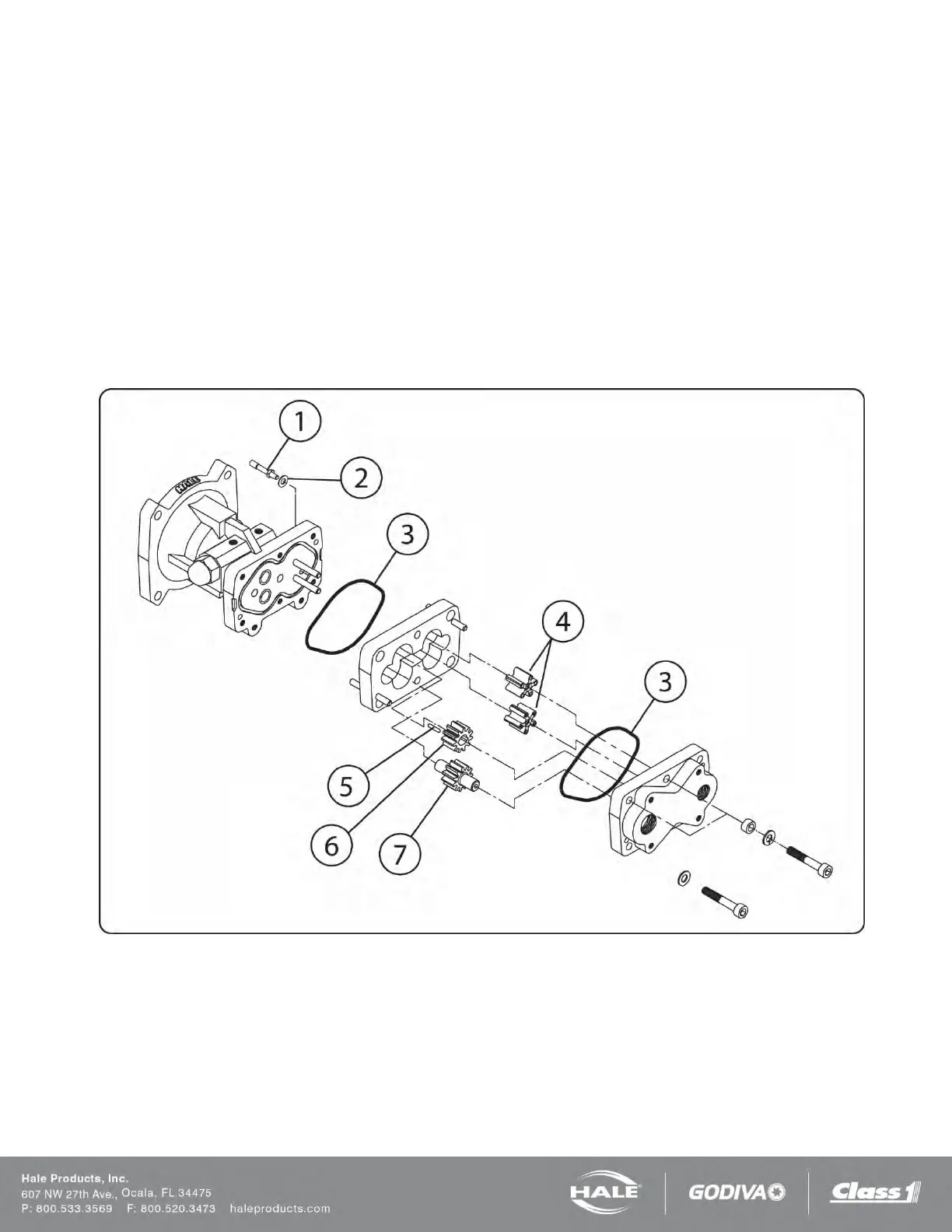

FLOW METER ASSEMBLY – 3.3, 5.0, and 6.5
Item Part number Qty Description
1. 200-2481-00-0 1 Speed Sensor
2. 097-1971-00-0 1 Sealing Washer #10
3. 040-1540-00-0 2 O-ring 2-154 Buna-N 70 Durometer
4. 516-0220-00-0 2 Rotor assembly – 3.3, 5.0
516-0220-01-0 2 Rotor assembly – 6.5
5. 064-5380-00-0 1 Drive pin – 3.3, 5.0
064-5380-01-0 1 Drive pin – 6.5
6. 031-1270-00-0 1 Drive gear – 3.3
031-1270-02-0 1 Drive gear – 5.0, 6.5
7. 037-1980-00-0 1 Idler gear shaft – 3.3
037-1980-02-0 1 Idler gear shaft – 5.0, 6.5
Speed sensor replacement kit – part number 546-3240-00-0 includes:
Item Part number Qty Description
1. 200-2481-00-0 1 Speed Sensor
2. 097-1971-00-0 1 Sealing Washer #10
3. 040-1540-00-0 2 O-ring 2-154 Buna-N 70 Durometer
