HALE SmartFOAM - Check Valve; Injector Fitting

Page 53
SmartFOAM

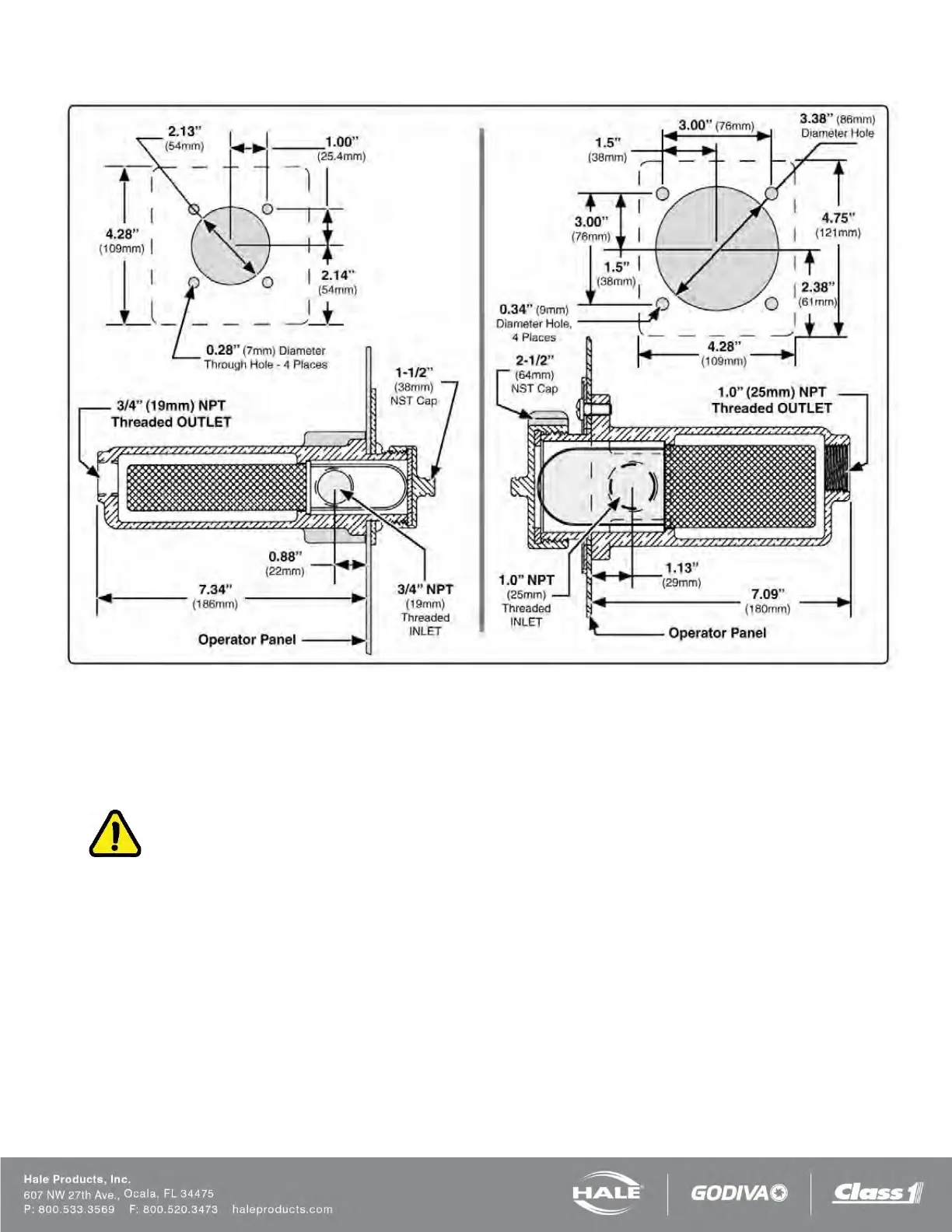

Figure 36: FS Strainer Mounting Dimensions
8. Make sure the strainer is properly oriented (Figure 35). Apply Loctite #242 Threadlock Compound (or equal) to
the screws then secure the strainer body and nameplate to the apparatus. Install the strainer cap.
9. Install the clear plastic hose from the foam tank outlet to the inlet of the strainer. Wet the ends of the hose and
fittings to make the installation easier.
CAUTION!
MAKE SURE THE FOAM TANK AND FOAM CONCENTRATE SUCTION HOSES ARE CLEAN BEFORE MAKING FI-
NAL CONNECTION TO FOAM PUMP. IF NECESSARY, FLUSH TANK AND HOSES PRIOR TO MAKING CONNEC-
TION.
10. Install the clear plastic hose from the strainer outlet to the inlet of the Hale SmartFOAM foam pump, or the selec-
tor valve.
