Hasler WJ185 - Installation of the Dynamic Scale (Optional)

Overall presentation 23
ORIG0140-23
4127718F/B
02/26/2007
1.2.5 Installation of the dynamic scale (optional)
The equipment including a dynamic scale (the whole
system representing approximately 120 lbs) requires the
use of a steady and rigid table, in order to prevent any
weighing problem. Be sure not to install the machine in
an area exposed to the sunlight or to excessive air
currents.

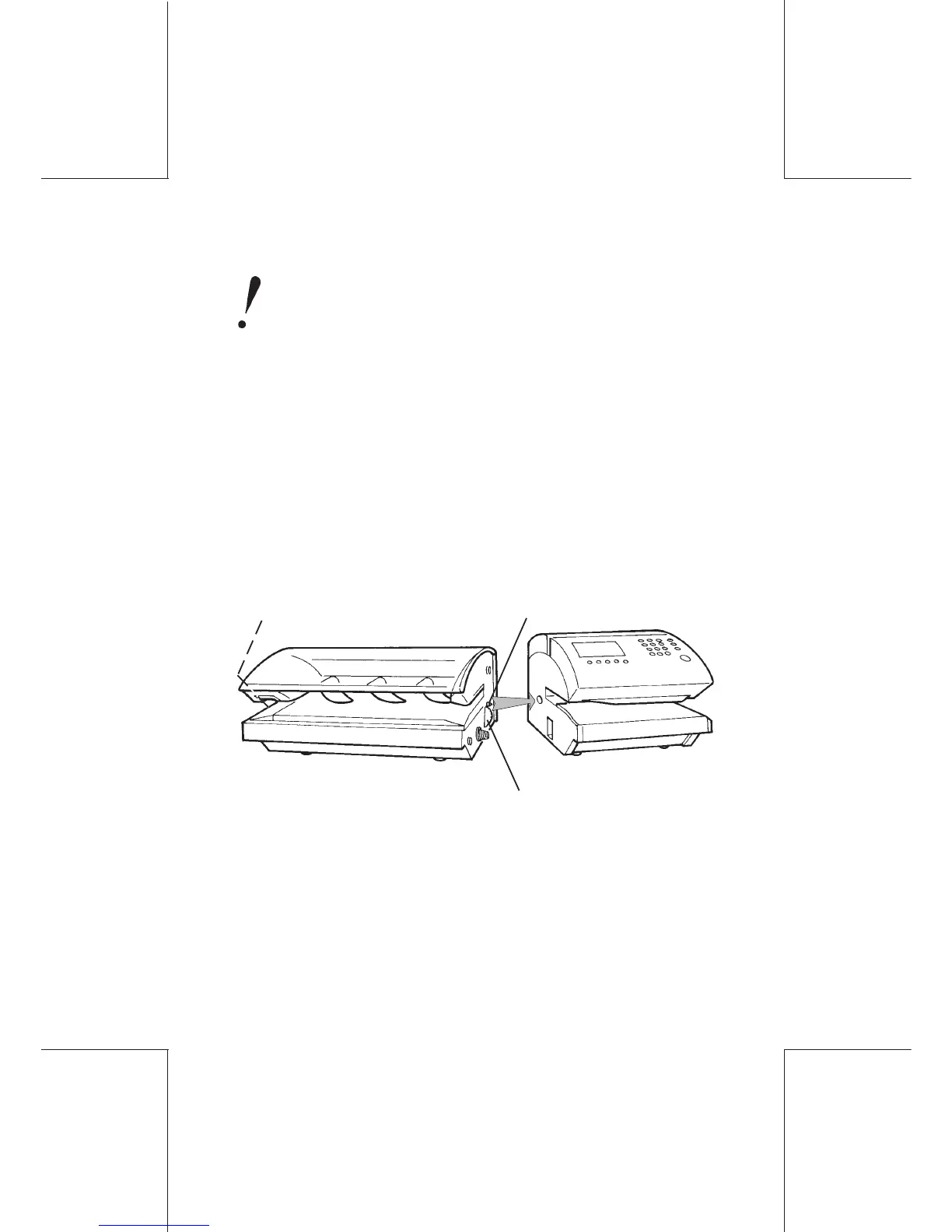

- Align the dynamic scale with the mailing machine;
- Push the dynamic scale towards the machine, taking care to
keep the centering pin aligned as indicated;
- Thread the dynamic scale screw in the mailing machine. Then,
using the knurled tightening knob, push and screw to lock (if the
two devices are not closing properly, slightly rotate the gear
protruding from the dynamic scale and repeat the operation).
centering pin
tightening knob
(on the side)
(gear)
- Align the feeder with the dynamic scale;
- Push the feeder towards the dynamic scale, taking care to keep
the centering pin aligned as indicated;
- Thread the feeder screw in the dynamic scale. Then, using the
knurled tightening knob, push and screw to lock (if the two
devices are not closing properly, slightly rotate the gear protruding
from the feeder and repeat the operation).
