Hasler WJ185 - Connections at the Rear of the Units; Loading Label Roll

Operation with a roll tape dispenser (RTD)82
ORIG0140-82
4127718F/B
02/26/2007

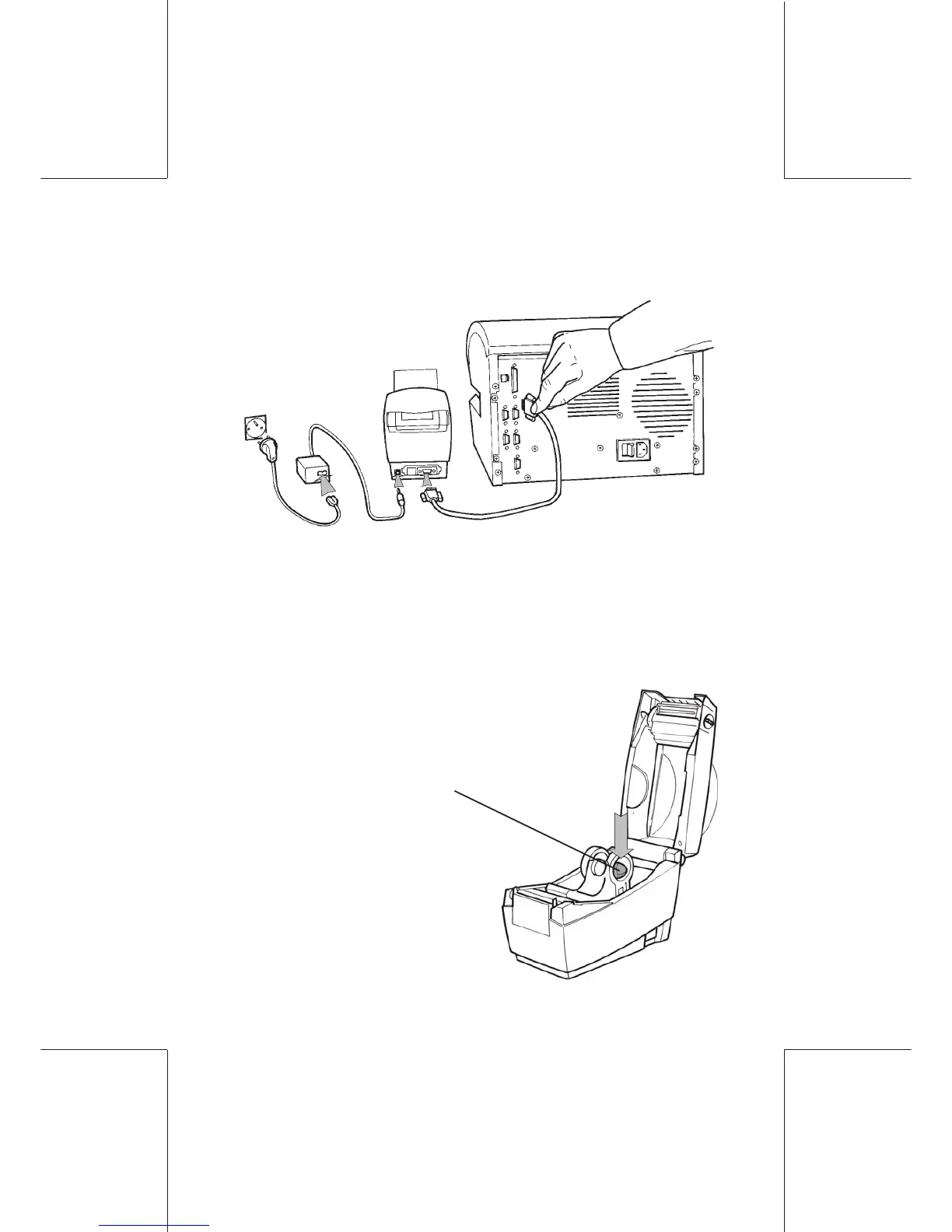

10.2 Connections at the rear of the units
- Turn power OFF before attaching the power module or interface
cable.
Plug in power
module
Plug in interface
cable to the top
connection port
(secure by screwing)
- Power ON the base, then the RTD
10.3 Loading label roll
- Open RTD cover.
- Check:
-the two green halves of
the label roll core holders
are set downward.
-holders adjustment knob
is in high position.
- Insert label roll.
