Tabletop mounting

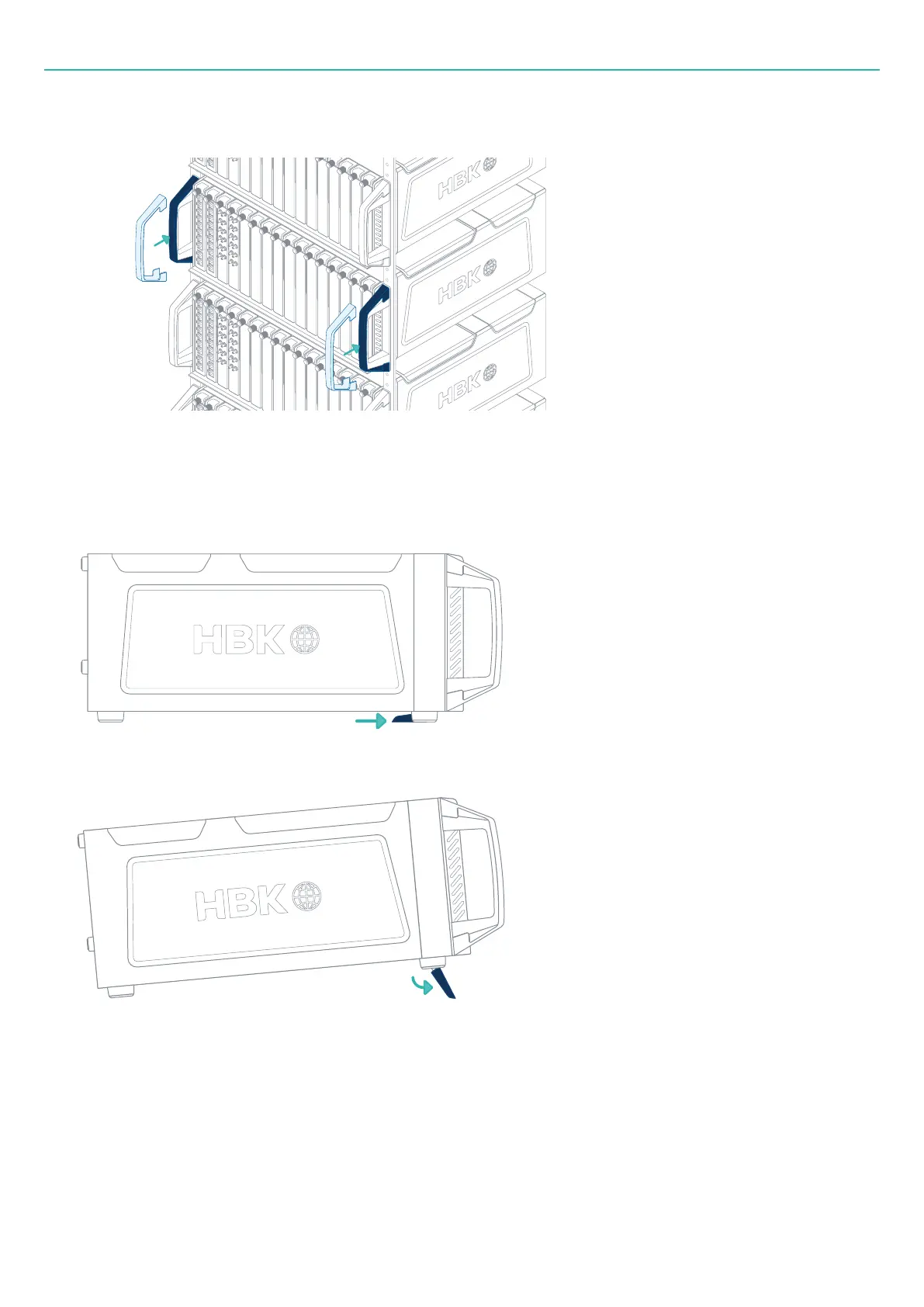

3. Replace the handle covers.

Tabletop mounting

The two feet at the base of the front of the frame have fold-up extensions.

For tabletop mounting, unfold the extensions to ensure proper air flow.

- 22 -
