Sensor characteristics
l
Gain: Defines the gain between electrical input signal and scaled output signal.
l
Gauge: Defines a linear characteristic by using the gauge factor and the bridge factor of the sensor.
l

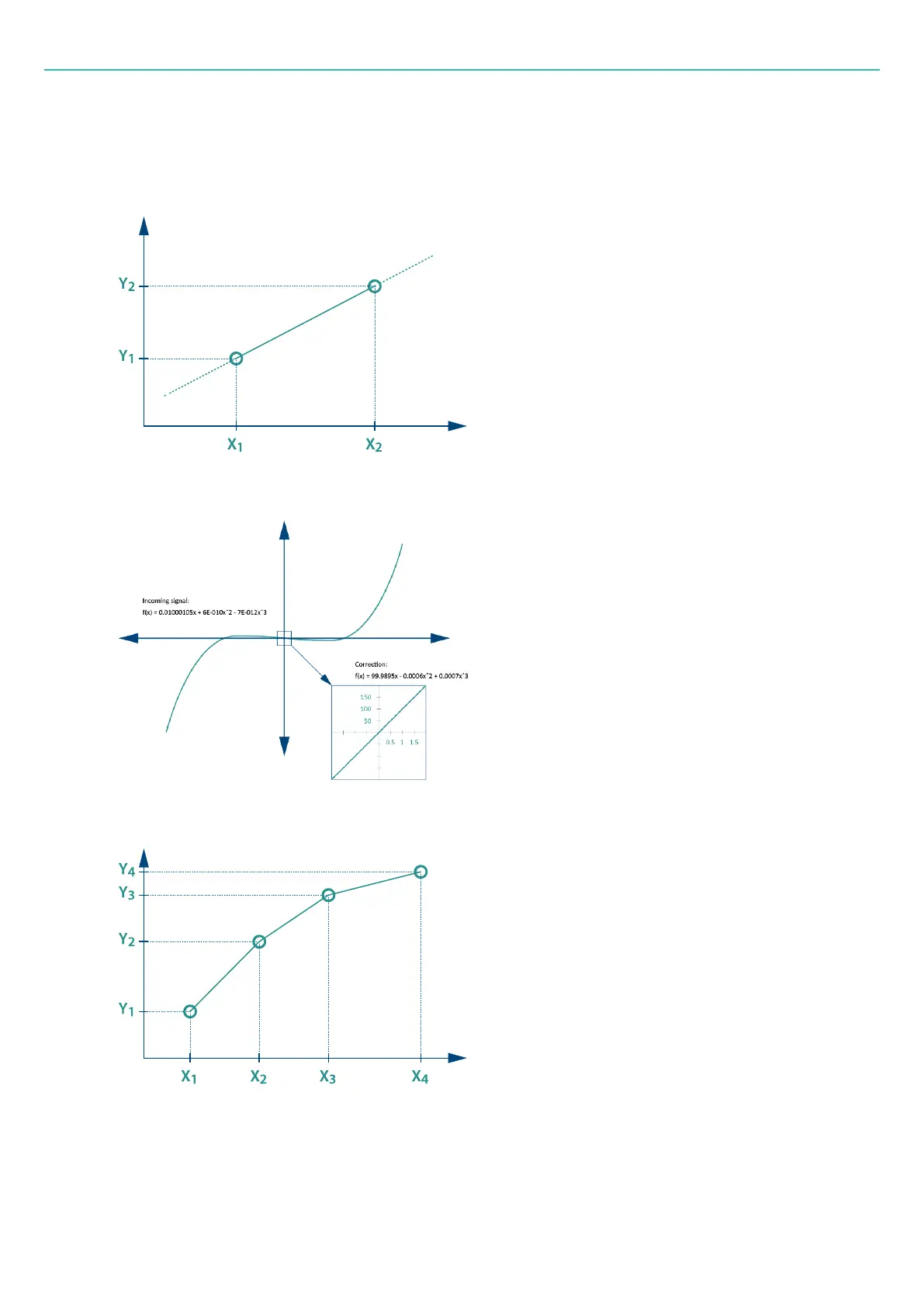

Two-point: Defines a linear characteristic represented by a straight line through two calibration
points (x1|y1) and (x2|y2).
l
Polynomial: Defines a non-linear characteristic represented by adjacent polynomial segments P1, P2,
etc. that start in (x1|P1(x1)), (x2|P2(x2)), etc., and go as far as the electrical range xR
l
Table: Defines a linear characteristic represented by adjacent segments of straight lines between
several calibration points (x1|y1), (x2|y2), (x3|y3), etc.
Gain: (when Scaling type = Gain) Represents the gradient from input to output signal as a linear
characteristic.
Gain offset: (when Scaling type = Gain) The offset shifts the output signal in positive or negative direction
