Inserting a board

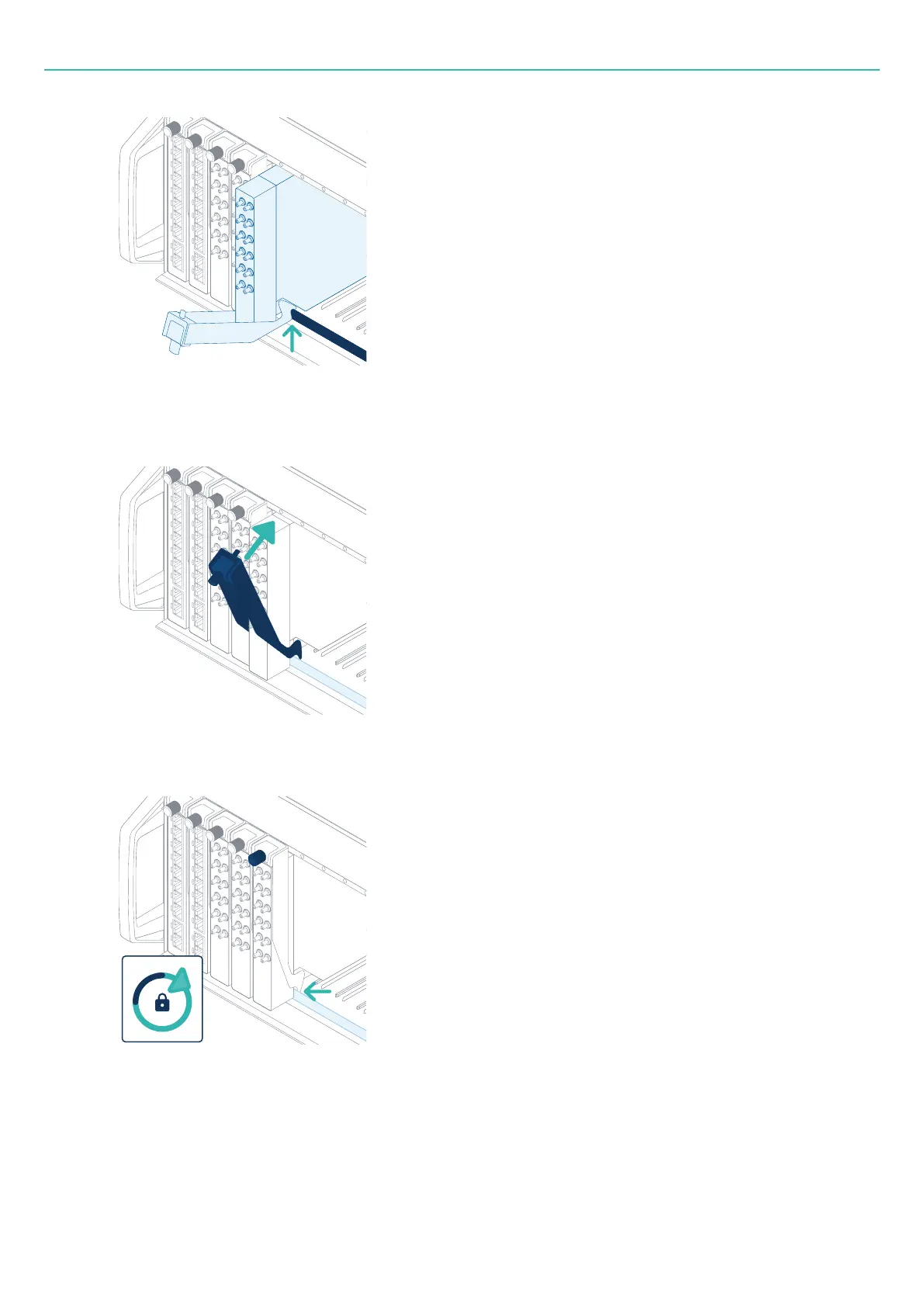

5. Raise the lever to its vertical position.
If positioned correctly, the hook of the lever catches the fulcrum and connects the board to the
backplane of the frame.
6. Lock the lever.
Rotate the quarter-turn fastener clockwise.
7. Pull the board to check it is locked in place.
