17
MP60, MP60DP
MOUNTING/DISMOUNTING

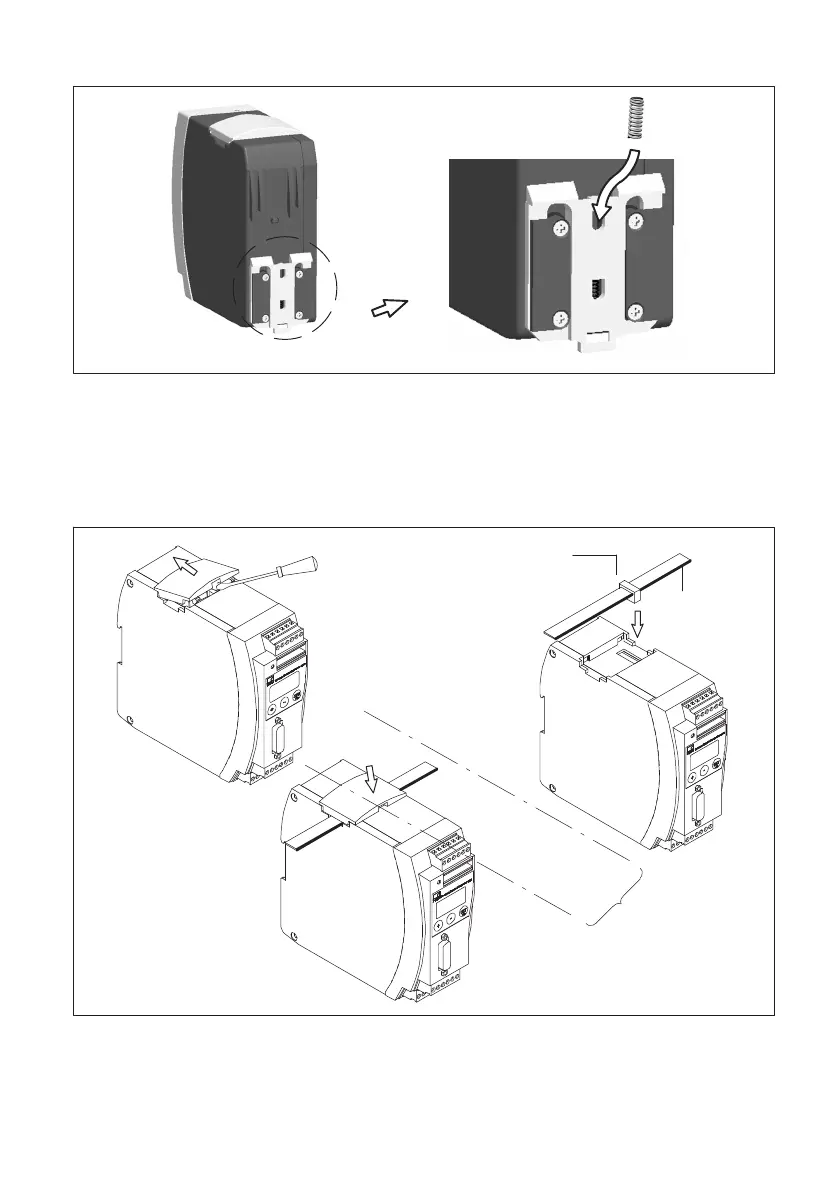

Fig. 5.3 Installing a second spring for more stable mounting of the module on the
support rail
5.1 Interconnecting multiple modules
1.
2.
3.
Color coding
on pin 1
Ribbon cable female connector
Recommended gap
for ribbon cable
female connectors
Subsequent devices are inter
connected via this connector.
58mm
Fig. 5.4 Connecting a ribbon cable
