7.4 Example: Measuring Md and N with T10F torque transducer
(24 V supply)
Both T10F and MP60 are factory set for balanced signals.
Torque measurement
Preparing measurement:
u Use the standard cable md-Kab149.
u Connect the external 24 V supply voltage also to plug terminal 4 (see page 21).

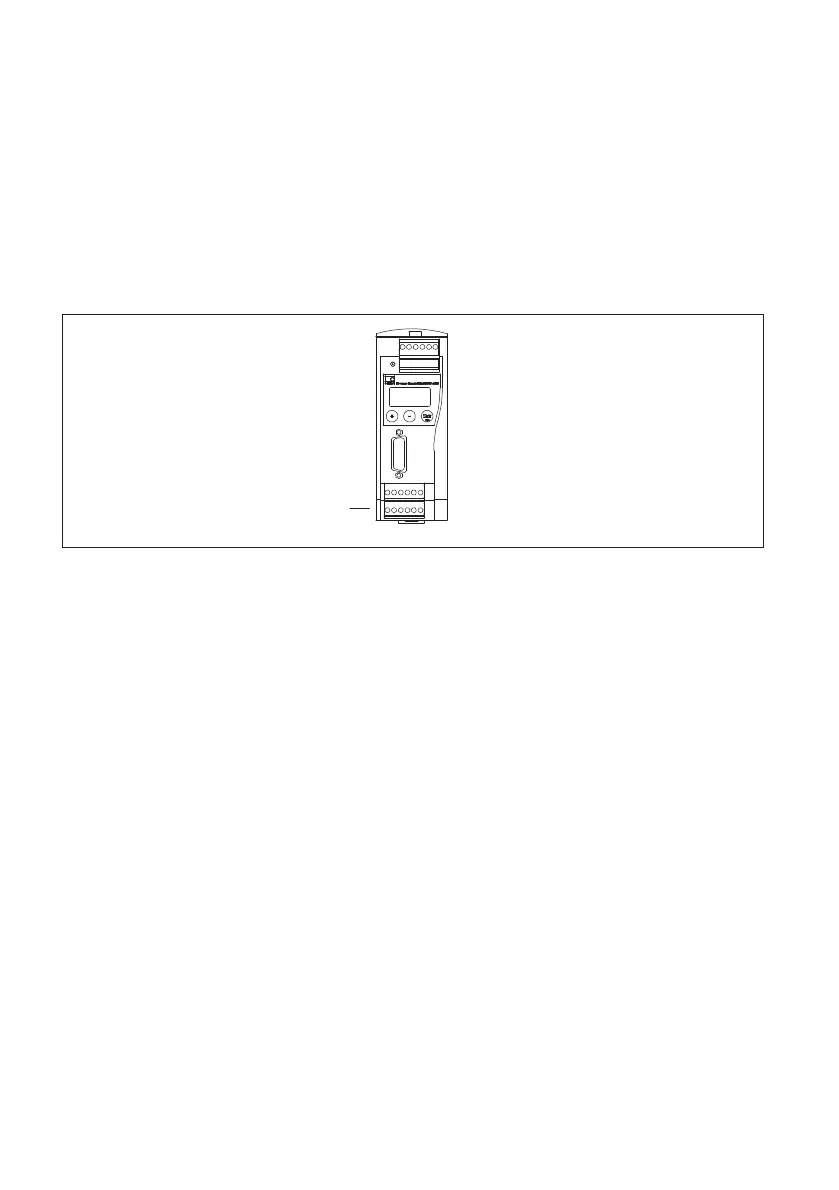

Plug terminal 4
u Connect transducer (see connection A, page 21).
u Do not change any DIP switch positions!
Enter the rated output (sensitivity) values of the T10F:
Group: TRANSDUCER
Unit: kNm
Input range: 100 kHz
F2 OFF
Zero index OFF
Frq x 4 OFF
Direction of rotation OFF
Switching threshold 2.5 V
Glitch filter ON
Zero kHz 10
Zero kNm 0
Nom kHz 5 kHz
