HBK MP60 - 6.2.1 External supply voltage for control outputs (MP60)

MP60, MP60DP
CONNECTION
20
The 4 plug terminals are coded, to prevent confusion when plugging them into the
4 sockets. The sockets have coding tabs; the plug terminals have coding pins.
6.2.1 External supply voltage for control outputs (MP60)
Example: PLC connection
OUT3
24 V*
0 V*
max. 100 mA
MP60 module
PLC
Relay
0 V*
max. 100 mA
OUT1
Plug terminal 4
24 V

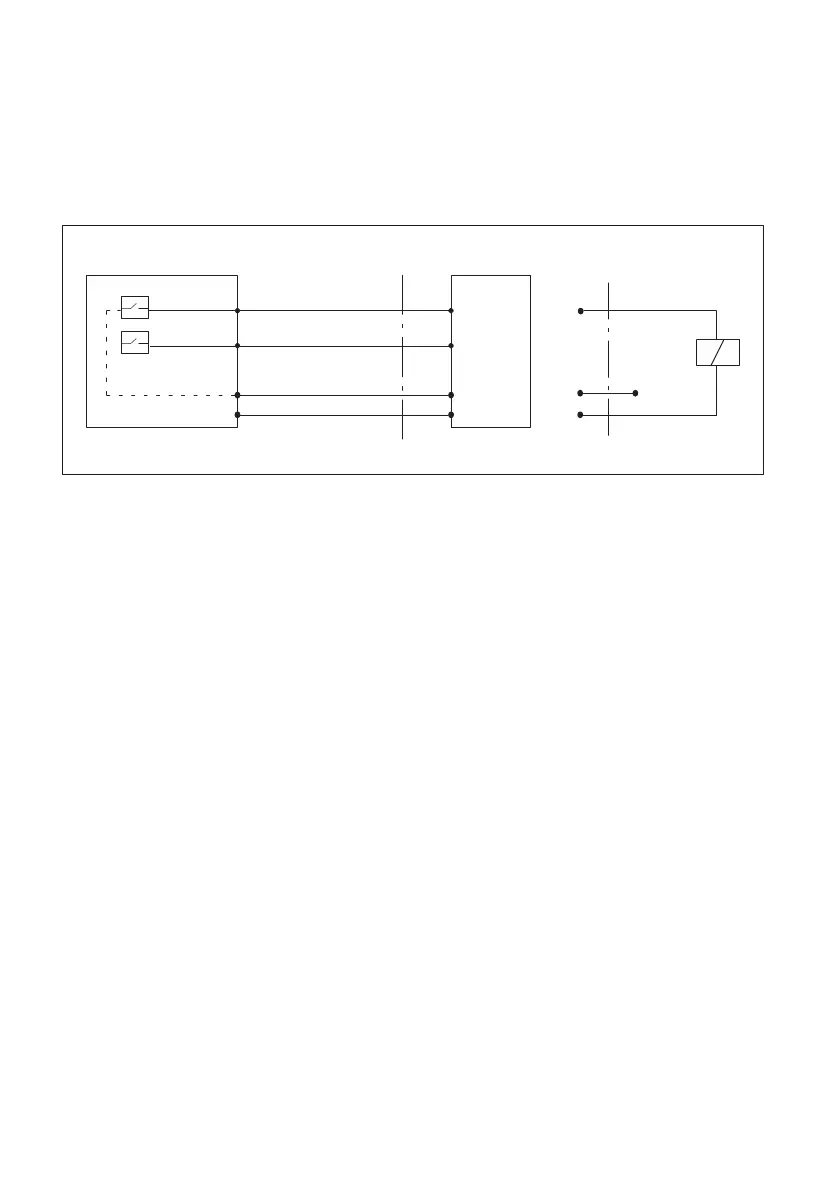

Fig. 6.2 Connection to a PLC
The control inputs are on plug terminal 3; the control outputs are on plug terminal 4,
galvanically isolated from the internal supply voltage (see also section 8, "Explanation of
the key parameters" page 43).
*
)
The control outputs must be supplied with an external voltage (ground and 24 V
[maximum +30 V]).
