MP60, MP60DP
PROFIBUS INTERFACE DESCRIPTION (MP60DP ONLY)
70

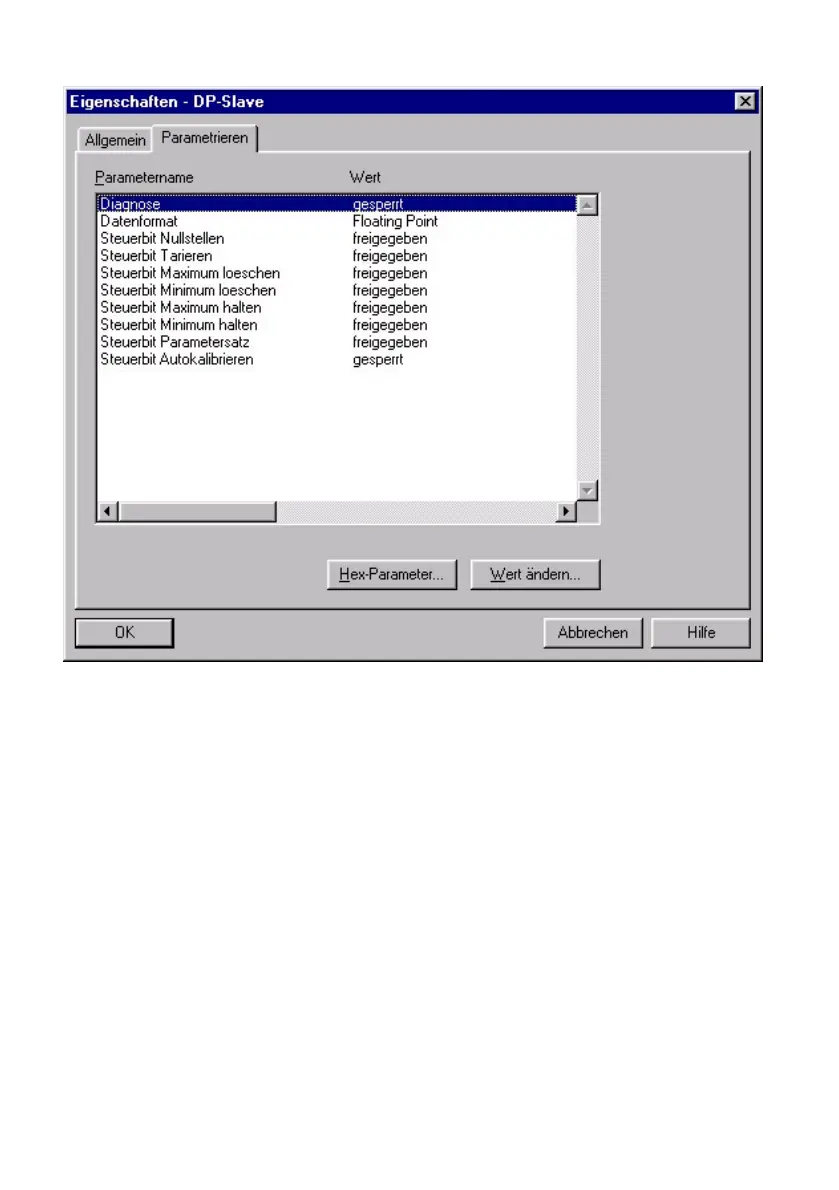

Fig. 10.2 Setting parameters
Notes for Simatic S7 PLC users
S To transmit consistent data of 3 bytes or over 4 bytes, you must use special function
block SFC14 to read and SFC15 to write.
S With S7 3xx, a maximum of 32 bytes of consistent data can be transmitted.
For the meanings of the bits of the status and control words refer to the tables in
section 10.4.
10.2 Parameterization
The amplifier parameters are set via the keyboard or CAN interface, as for the MP60DP.
The Profibus DP parameterization telegram defines some of the parameters for DP
transfer. If you are using Profibus parameterization tools which can evaluate the GSD
files of GSD Revision 1, the following parameters are available for selection:
