43
MP60, MP60DP
EXPLANATION OF THE MAIN PARAMETERS
MeaningParameterGroup
kNm/s

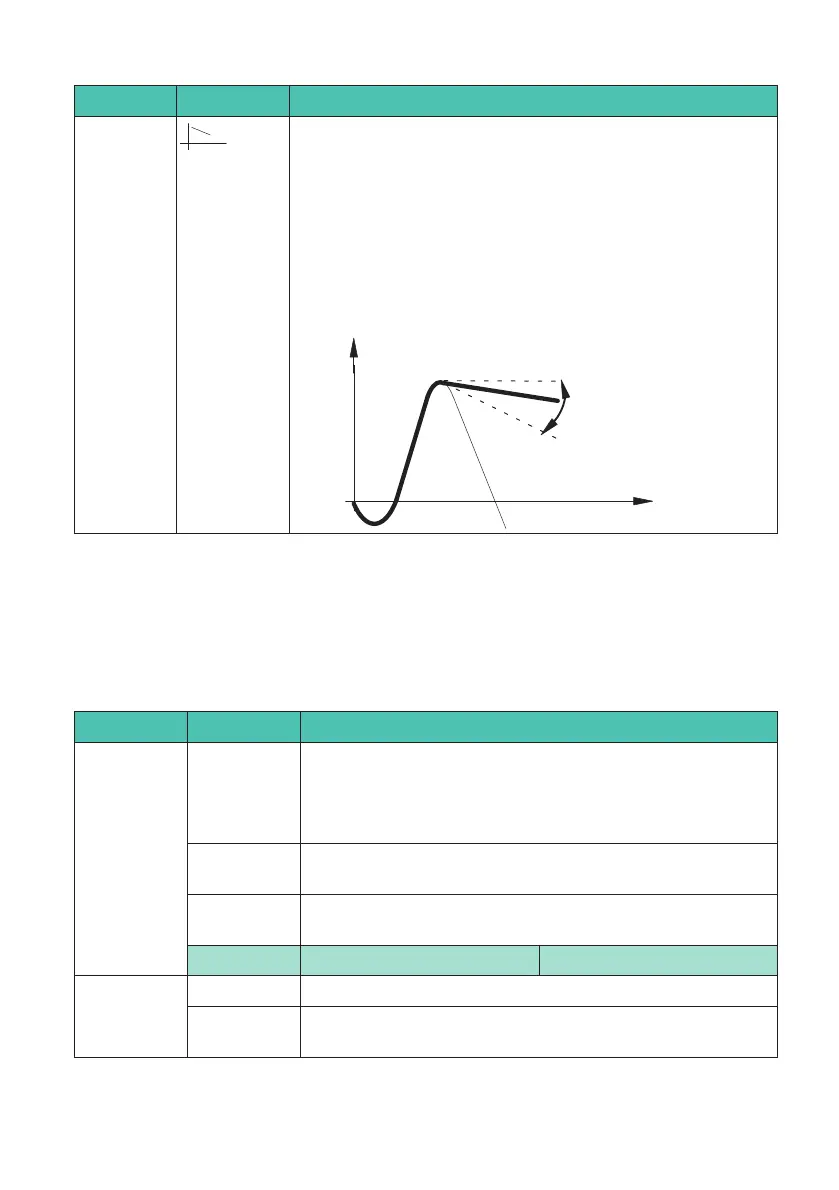

The discharge rate of the envelope function (in physical
units/sec) for both peak value memories.
Peak value memories can also be used for envelope curve
display. The envelope function is suitable for measuring
amplitude-modulated vibration. The discharge rate (the time
constant of the discharge function) defines how quickly the
peak value memory discharges to the current
(instantaneous) value.
Discharge rate=0 V/s
Discharge rate=1 V/s
V
i
, V
o
t
3)
Depending on the unit chosen
4)
See also the next page (Remote controls)
Inputs/Outputs
Plug terminal 3: Here there are 4 inputs available to control the functions of the PME.
Plug terminal 4: Here there are 4 outputs available.
Group Parameter Meaning
IN/OUT Outputs
1)
1...4
Outputs 1 - 4 can be assigned with the following functions
for each channel:
Limit values 1 to 4, standstill, error, inactive
Output1: F1, pulses; output 2: F2, direction of rotation
Mode
Out1...4
The output signal is inverted (pos.log) or not inverted
(neg.log).
The listed functions can be freely assigned to the remote
controls (inputs/outputs).
Functions Input level 0 V Input level 24 V
Tare The transition from 0 V - 24 V starts the taring process
Zero
balance
The transition from 0 V - 24 V sets the current
measurement signal to zero
