MP60, MP60DP
EXPLANATION OF THE MAIN PARAMETERS
42
MeaningParameterGroup
Scaling specifications
Output characteristic:
The scale factor for the analog output comes from the input
and output characteristics. If the preset nominal (rated)
value corresponds to the measuring range in kHz, the mini
mum output voltage to be set is 0.5 V. If settings lead to the
limits being exceeded, an "Analog scaling error" is signaled
(see page 81).
Analog output scaling range, min.: 0.5 V at 100 % of input
measuring range
Analog output scaling range, max.: 10 V at 1 % of input
measuring range
LIMIT
VAL. 1...4
Source The choice of source for the limit value signal is: Gross, net,
max peak value/min peak value/peak-to-peak
SwtchDir
Value
Hyst
Hyst
Value
Overshoot
Undershoot
Hyst
24 V
0 V
24 V
0 V
LV1, ON
LV2, ON
LV1 ON
LV2 ON

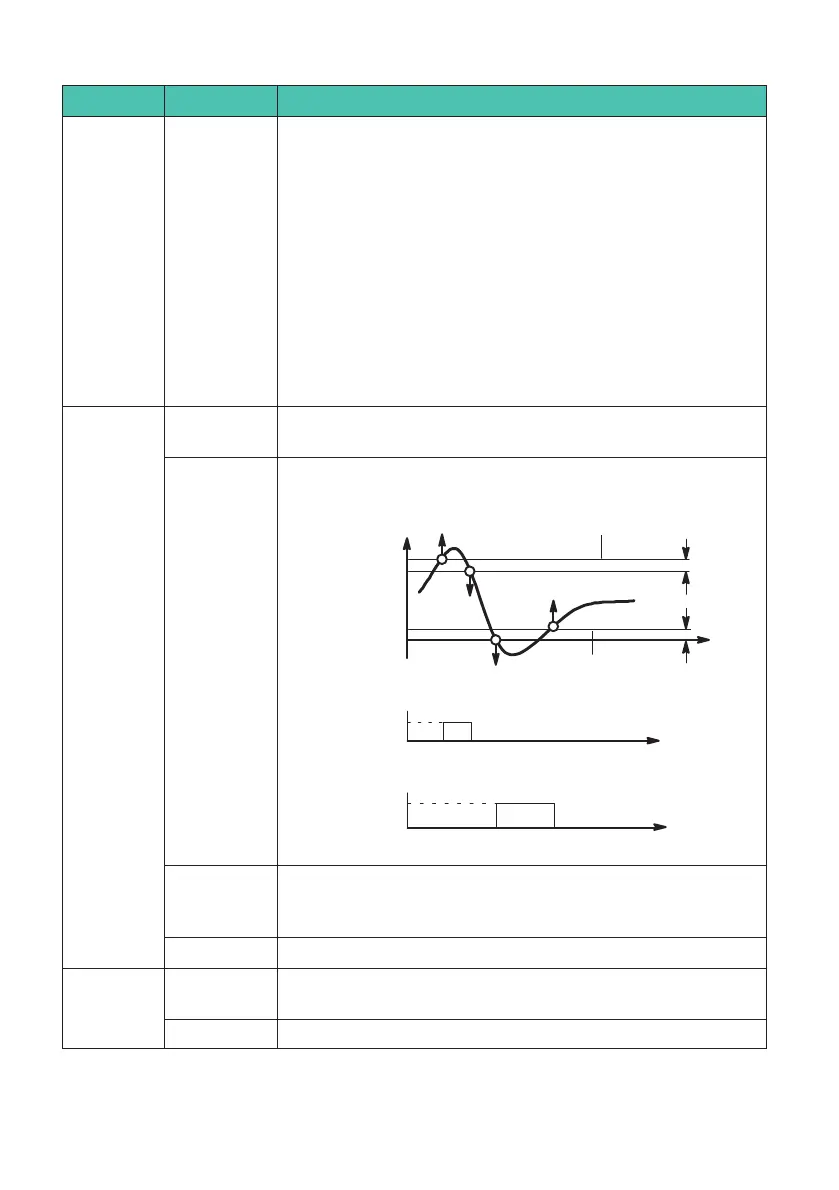

Functions and parameters of the limit values
OFF
OFF
Value
OnDelay ms Switch-on delay; when a limit value level is exceeded,
the change only takes effect at the output after a delay
(OnDelay).
OffDlay ms Switch-off delay, as for OnDelay
PkVal
4)
InputMin/
Max
The choice of source for the peak value signal is: Gross, Net
ClearPkV The peak value can be cleared.
