41
MP60, MP60DP

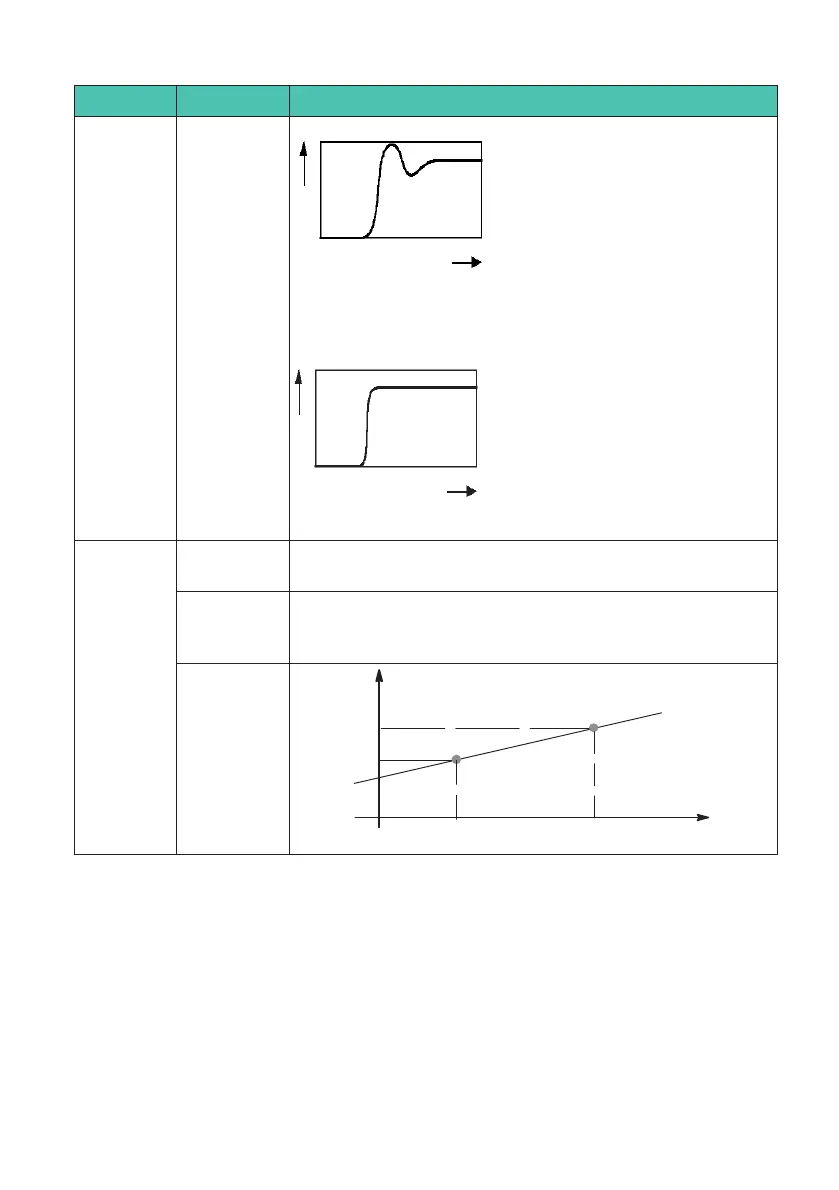

EXPLANATION OF THE MAIN PARAMETERS
MeaningParameterGroup
FiltChar
Step response
Best time characteristic (Bessel)
Time
Time
Best frequency response (Butterworth)
The diagram shows a linear
amplitude response with a steep
drop above the cut-off frequency.
There is an overshoot of approx.
10%.
The diagram shows a step
response with very little (<1%)
or no overshoot. The amplitude
response drops less sharply.
Amplitude response
ANALOG
OUTPUT
Source Vo The gross or net or peak value can be selected as the
source of the analog signal.
Mode Vo Use DIP switch S11 to specify the signal mode for the
analog output. The following options are possible:
"10 V, "20 mA, 4...20 mA
Zero %
3)
Zero V
EndVkNm
3)
EndV V
Physical unit
V
0
Zero kNm
Zero V
EndV kNm
EndV V
