MP60, MP60DP
CONNECTION
22
Frequency, pulse counter, incremental transducer (balanced signals)
Frequency, pulse counter, incremental transducer (unbalanced signals)
Ground
Cable shield
Hsg.
Zero index (+)
Zero index (-)
Transducer error
Rotational speed measurement signal,
F1 (+), 0°
8
12
f1, 0°
f2, 90°
Ground
Cable shield
8
12
Hsg
.
Zero index (+)
Transducer error
f1, 0°
f2, 90°
MP60
13
14
15
2
3
7
Connection A
Connection
A
Connection A
Rotational speed measurement signal,
F1 (-), 0°
Rotational speed measurement signal,
F2 (-), 90°
Rotational speed measurement signal,
F2 (+), 90°
Rotational speed measurement signal,
F1 (+), 0°
Rotational speed measurement signal,
F2 (+), 90°
15
2
7

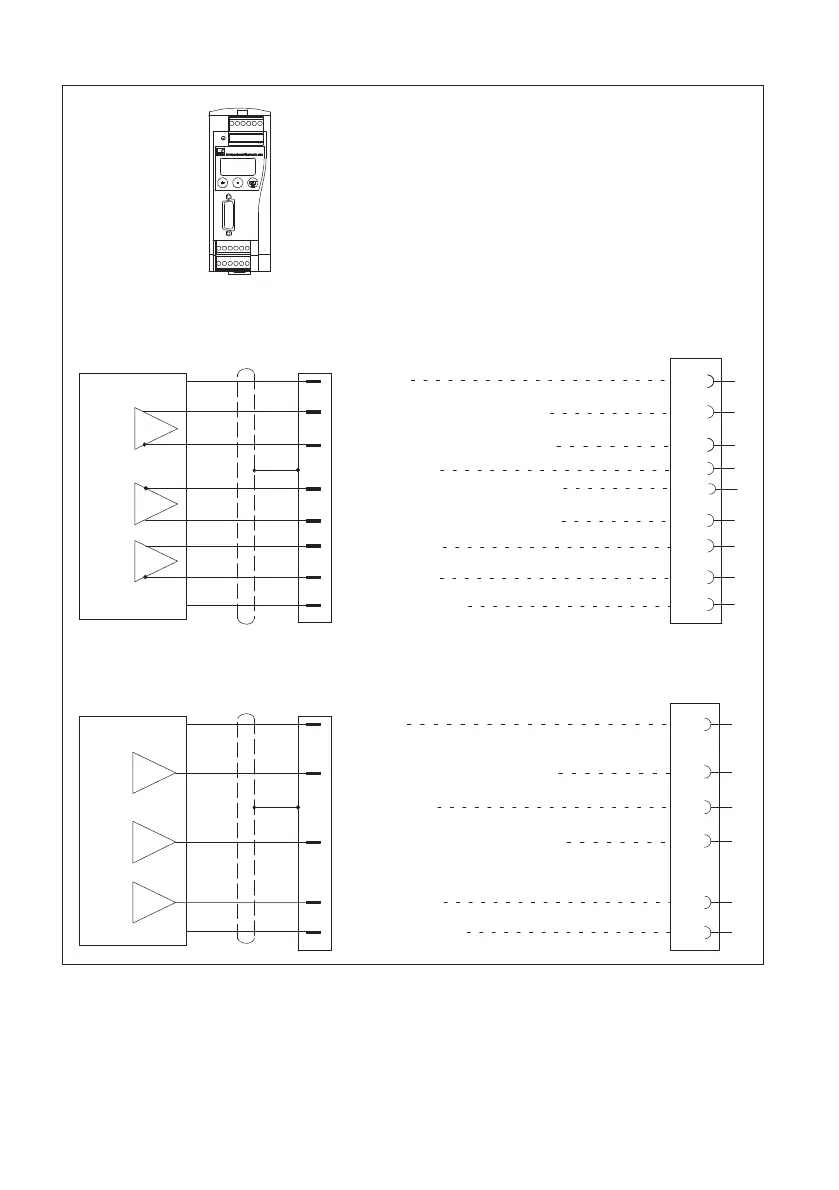

Fig. 6.4 MP60 connection
