Electrical connections, LEDs
36
a4643-1.0 HBM: public ClipX
Strain gage full bridge, voltage-fed piezo-resistive sensors in 6-wire con-
figuration (zero-wire TEDS)

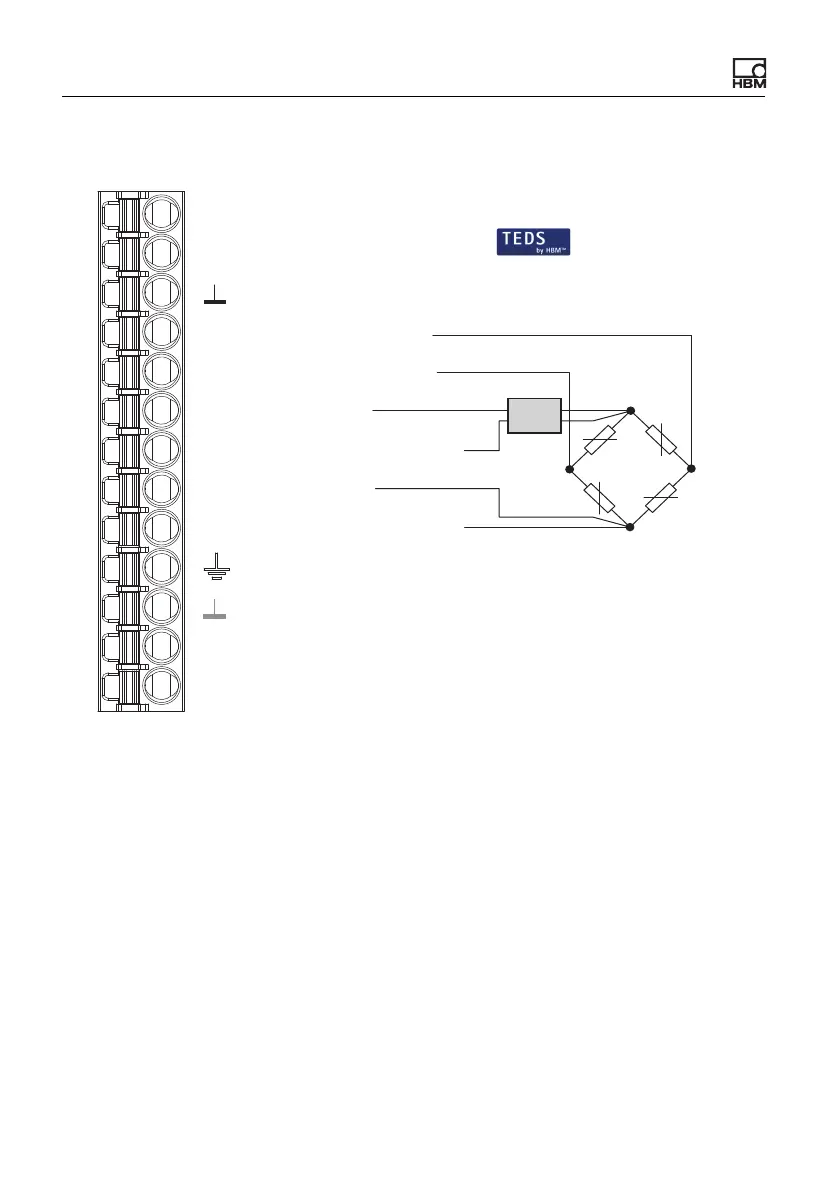

Fig. 12: Plug terminal X4, 6-wire pin assignment, TEDS optional
Pt100
TEDS
Pt100
Cable wire colors (HBM transducer):
Plug terminal X4, transducer connection
bu = blue; gn = green; gr = gray;
rd = red; bk = black; wh = white;
1
2'
3
3'
2
I
U
AI
S
4
Measurement signal +
Sense lead -
Bridge excitation voltage +
Sense lead +
Bridge excitation voltage -
Outer cable shield
Inner cable shield
Measurement signal -
Zero-Wire-TEDS
3
2
14
rd
wh
gy
bk
gn
bu
TEDS
