Strain gage half bridge in 6-wire configuration (1-wire TEDS)

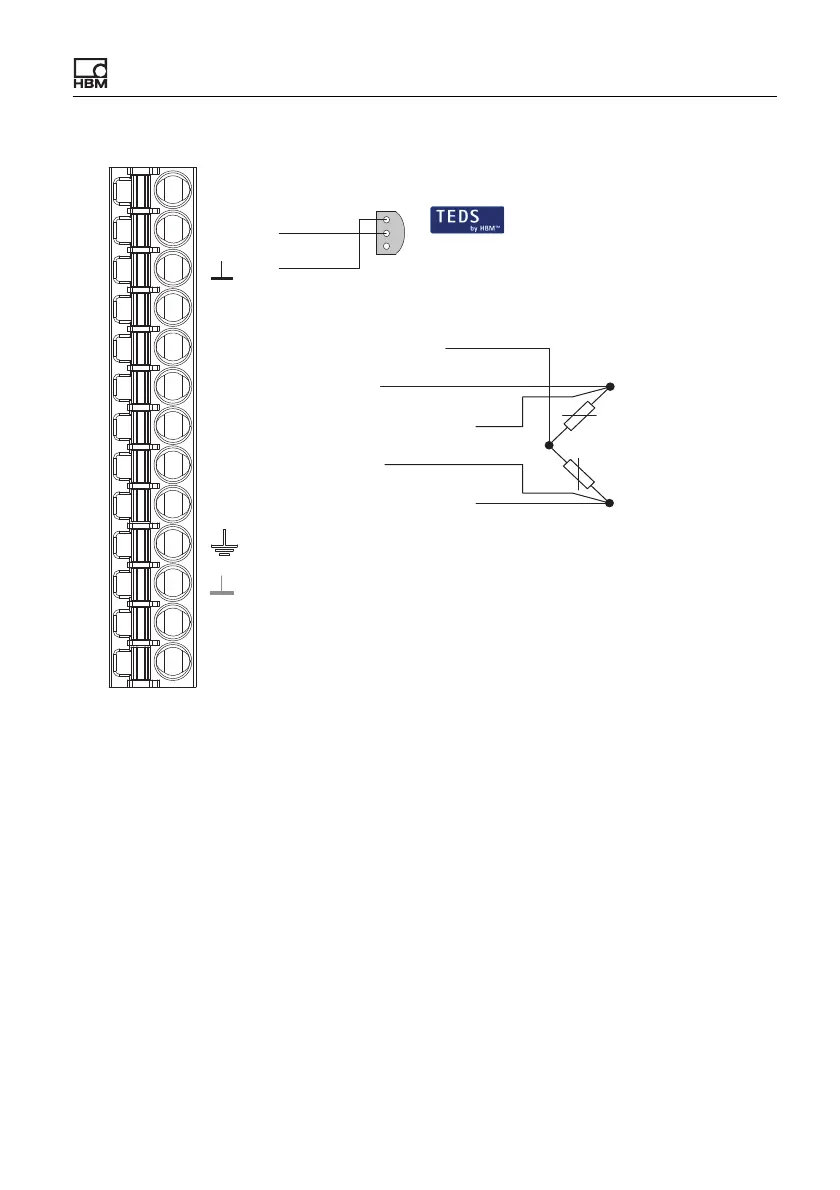

Fig. 13: Plug terminal X4, 6-wire pin assignment, TEDS optional
3
2
1
wh
gy
bk
gn
bu
Pt100
TEDS
Pt100
1
2'
3
3'
2
Measurement signal +
Sense lead -
Bridge excitation voltage +
Sense lead +
Bridge excitation voltage -
I
U
AI
S
Outer cable shield
Cable wire colors (HBM transducer):
bu = blue; gn = green; gr = gray;
rd = red; bk = black; wh = white;
Plug terminal X4, transducer connection
Inner cable shield
4 Measurement signal -
1-Wire-TEDS
1
2
