3 Mode of operation – Overview
16
HDG COMPACT 25/35 FRONT SIDE
1 Combustion chamber temperature sensor
2. Control unit of HDG Compatronic
3 Cleaning system drive
4EMERGENCY STOP
5Flue gas fan
6Lambda sensor
7 Flue pipe connection
8 Flue gas temperature sensor
9 Heat exchanger surfaces with cleaning turbulators in between
10 Ash removal augers
11 Tilting grate
12 Combustion chamber primary burning
13 Ignition pipe
14 Feeding system
15 Combustion chamber secondary burning

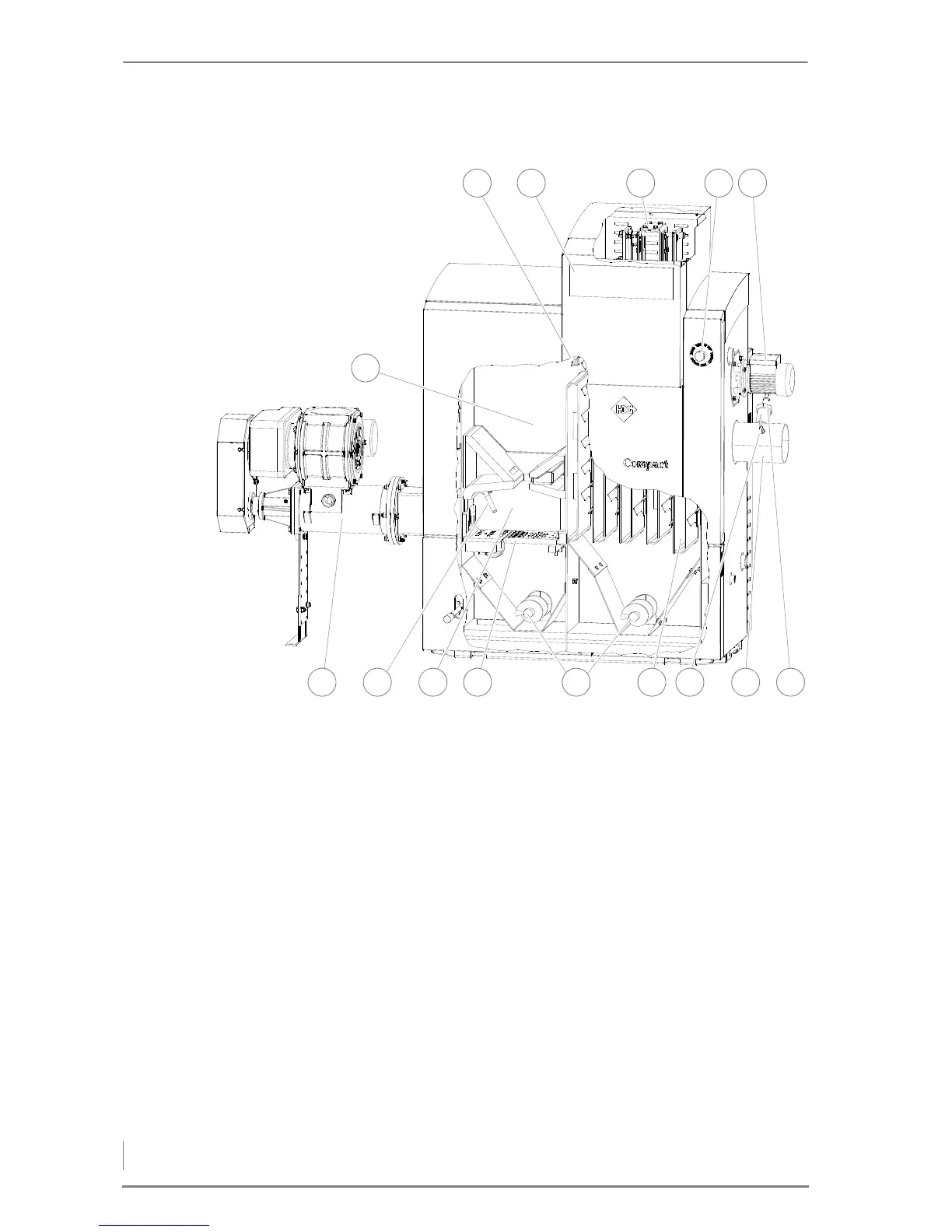

Figure 3/1 - Front side of the HDG Compact 25/35 boiler
13 8 6
5432
15
14 7
1
12 11 910
