HDG Compact 25 - 4 Planning and Installation; Planning the Heating System; Required Room Sizes and Minimum Spacing

4 Planning and installation – Planning the heating system
38
4 Planning and installation
4.1 Planning the heating system
REQUIRED ROOM SIZES AND MINIMUM SPACING

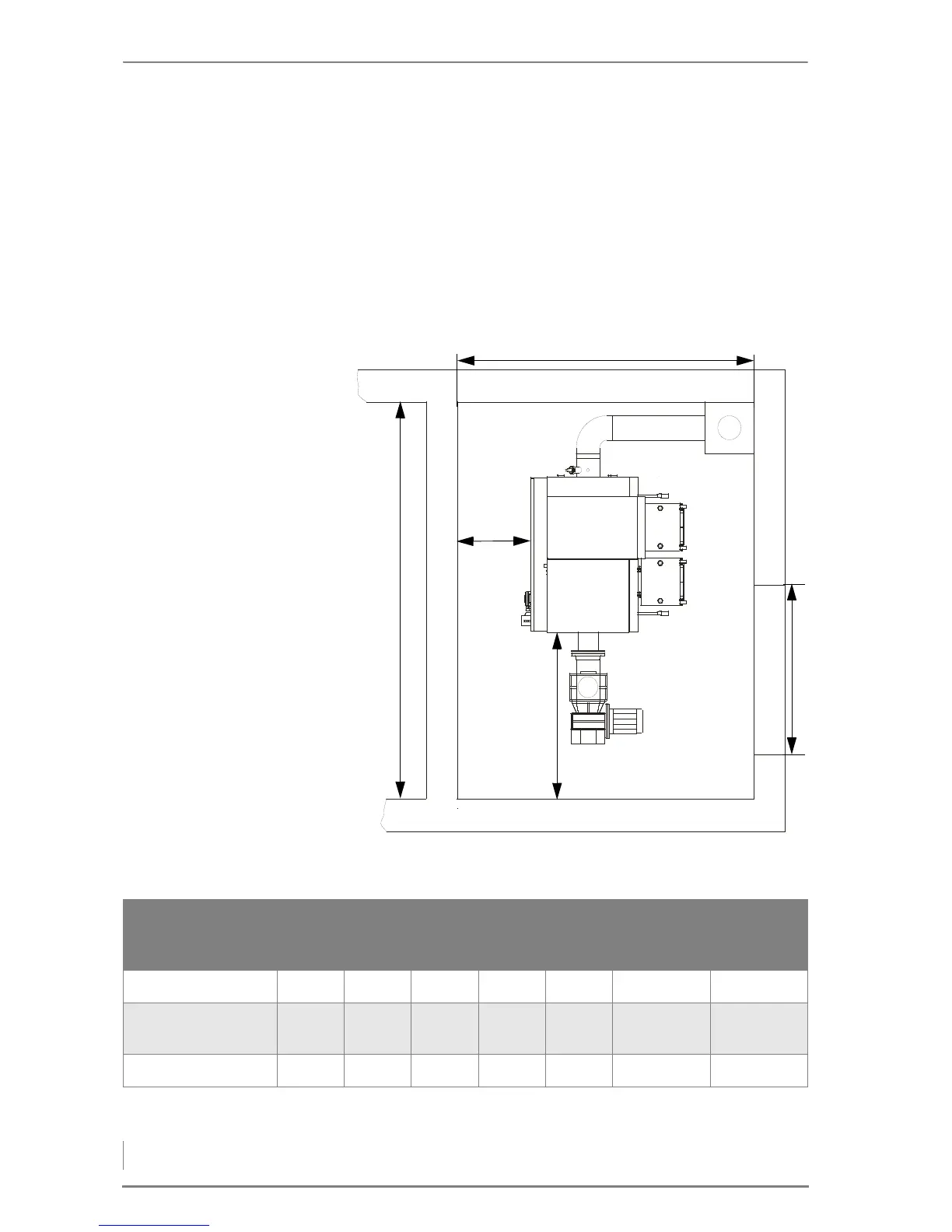

Figure 4/1 - Necessary room sizes and minimum spacing
B
D
C
E
A
A B C D E
Minimum
room height
Recommen-
ded room
height
HDG Compact 25/35 2900 1800 700 1200 400 1950 2250
HDG Compact 45/
50/65
2900 2000 800 1200 400 2250 2500
HDG Compact 80 3150 2100 800 1200 400 2450 2750
Table 4/1 - Minimum size (mm)
