HDG Compact 25 - Dimensions on Flue Pipe Side, HDG Compact 25;35

4 Planning and installation – Connections
49
DIMENSIONS ON FLUE PIPE SIDE, HDG COMPACT 25/35
1 Boiler supply connection (DN 32, inside thread)
2Flue gas fan
3 Flue pipe connection Ø 150 mm
4 Boiler return connection (DN 32, inside thread)
5 Filling / draining connection (DN 15, inside thread)

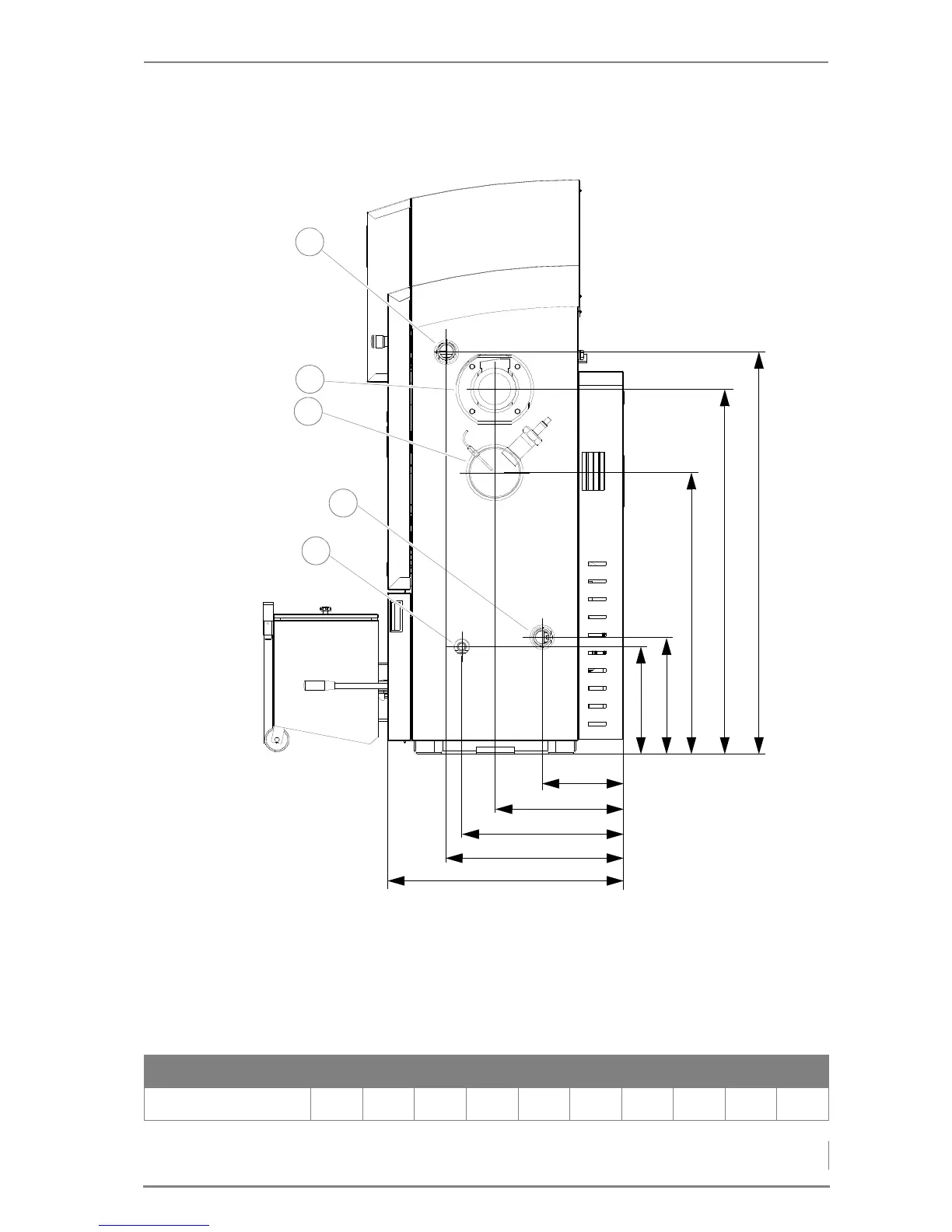

Figure 4/8 - Dimensions on flue pipe side HDG Compact 25/35
B
F
G
H
I
J
A
1
4
E
D
C
5
2
3
1
5
4
3
2
Model A B C D E F G H I J
HDG Compact 25/35 1174 1064 820 340 312 235 371 466 510 680
Table 4/3 - Dimensions on flue pipe side, HDG Compact 25/35 (mm)
