72
INSTALLING THE SENSORS
✓ The sensors are installed.
WIRING THE CIRCUIT BOARDS
1. Connect all plugs to the circuit board central unit (1) and transport
module (3) in accordance with the circuit diagram.
✎ See the enclosed circuit diagram “HDG Compatronic”.
2. Close all cable ducts (2).
✓ The circuit boards are wired.
The sensors for the accumulator are attached under the circuit
board cover next to the circuit boards for further use.
1. Seal the immersion sleeves of
the sensors with a suitable
sealing material and position
them at the points indicated
in the figure 4/41.
2. Guide the sensors into the im-
mersion sleeves.
3. Insert the prefabricated plug
connections into the termi-
nals specified in the circuit
diagram.
✎ The circuit diagrams are enc-
losed with the supplied docu-
mentation.

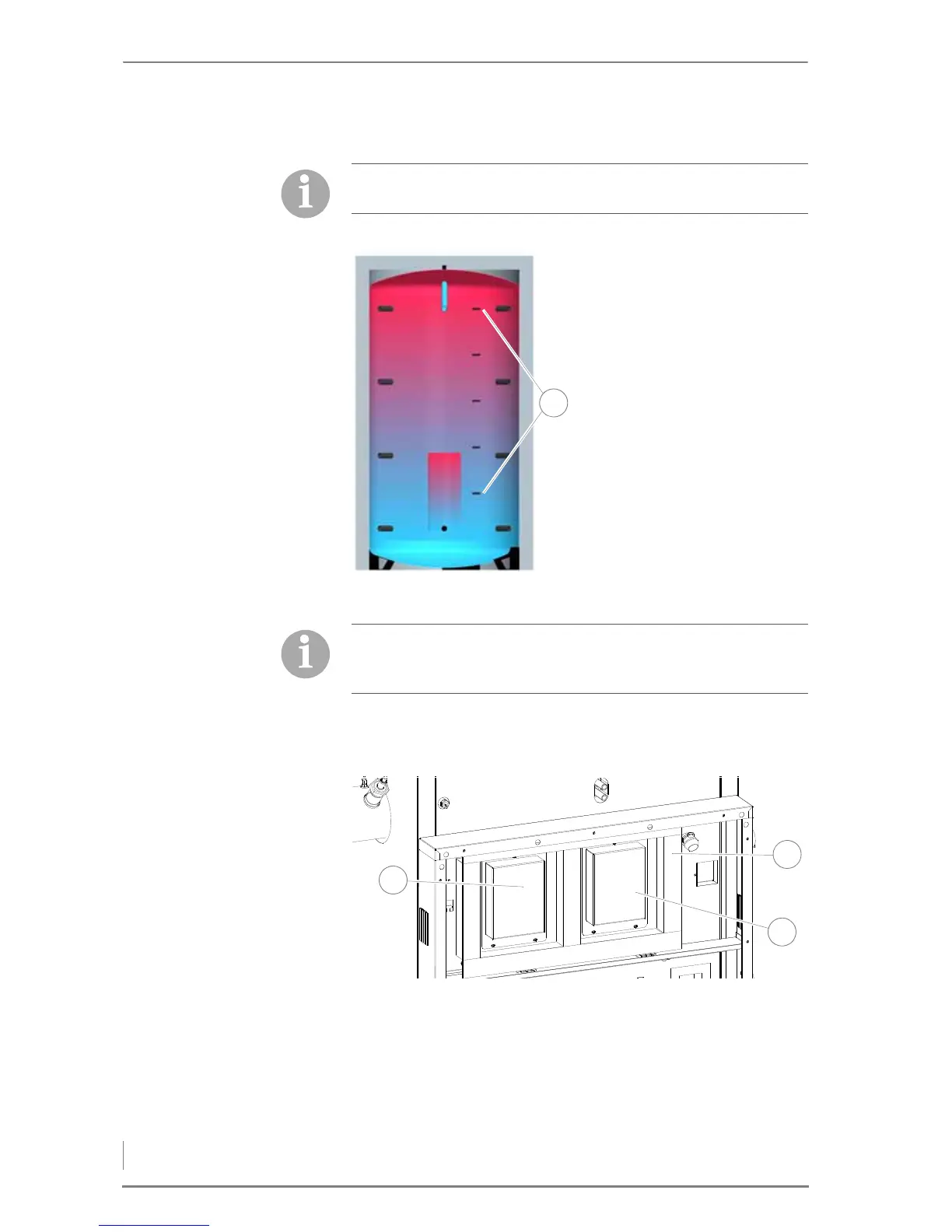

Figure 4/41 - Installing the sensors
For a hydraulic system without an accumulator, these sensors are
not present and must be deleted from the corresponding parame-
ters.
Figure 4/42 - Central unit and transport module
