HDG Compact 25 - Dimensions on Back Side HDG Compact 25;35

4 Planning and installation – Connections
50
DIMENSIONS ON BACK SIDE HDG COMPACT 25/35
1 Connection of immersion sleeve for thermal safety device (DN 15
female)
2 Inlet / outlet of safety heat exchanger (DN 15, outside thread)

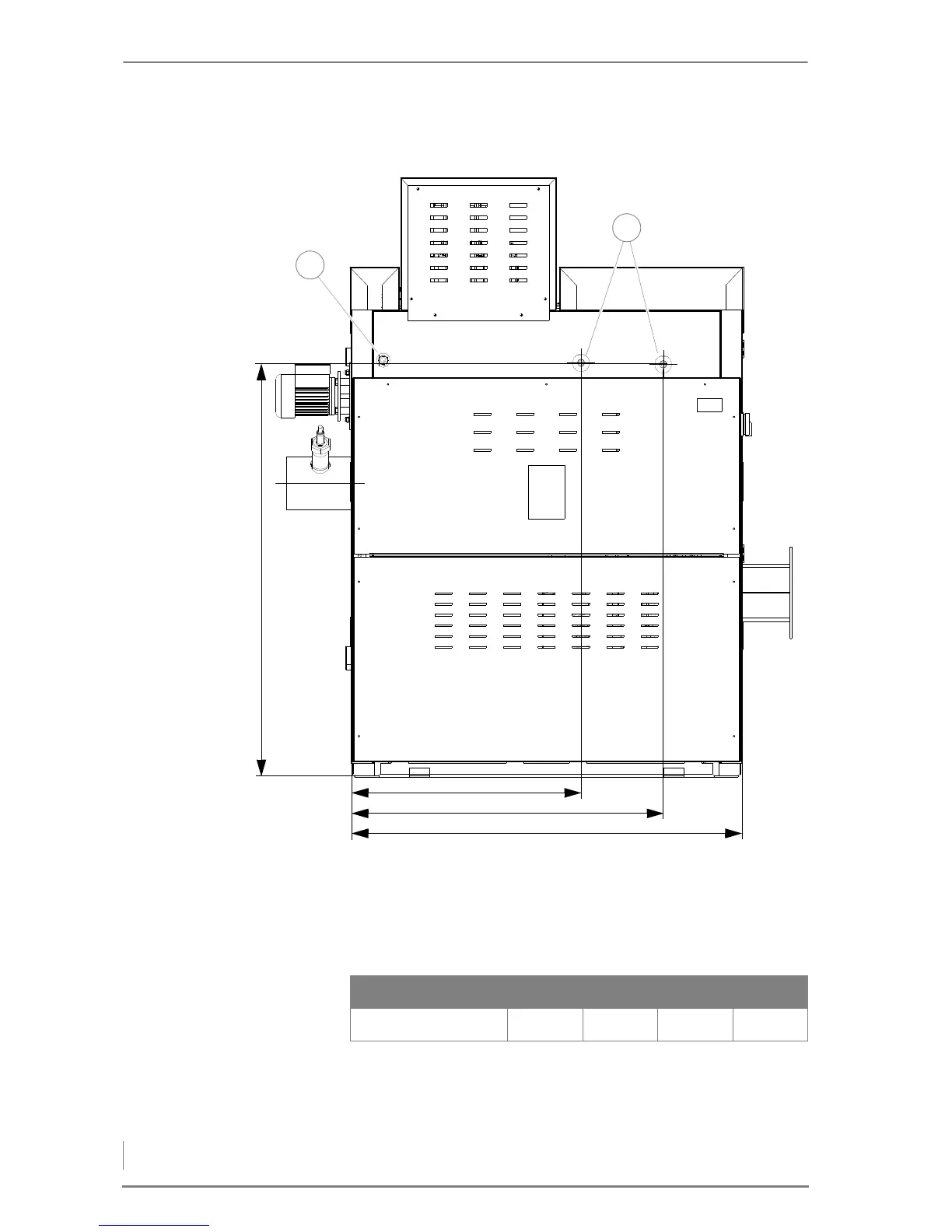

Figure 4/9 - HDG Compact 25/35, back side
A
B
C
D
2
1
Model A B C D
HDG Compact 25/35 1150 670 910 1140
Table 4/4 - Dimensions on back side, HDG Compact 25/35 (mm)
